A16B-3200-0450

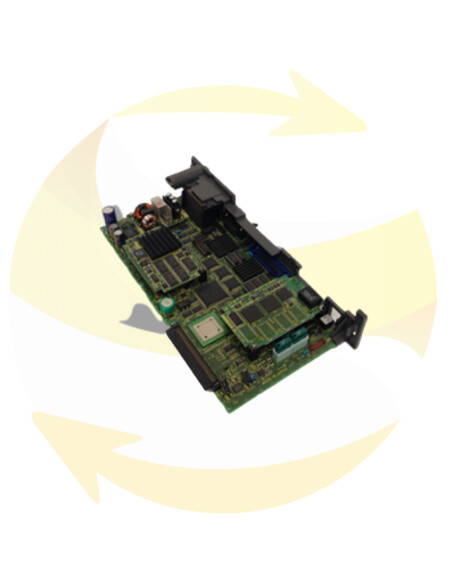

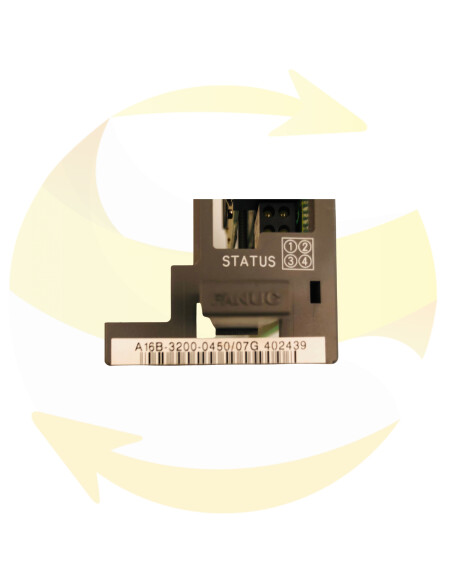

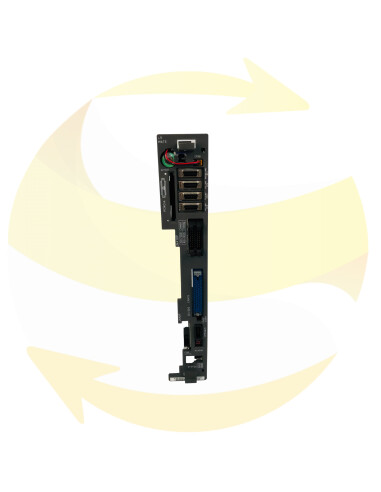

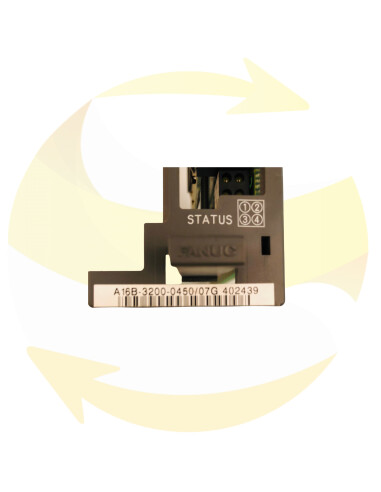

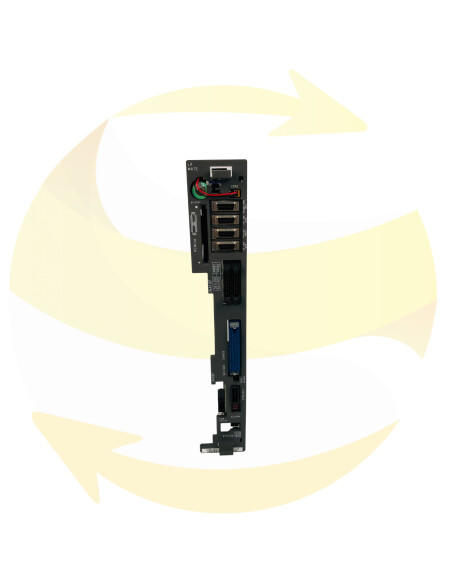

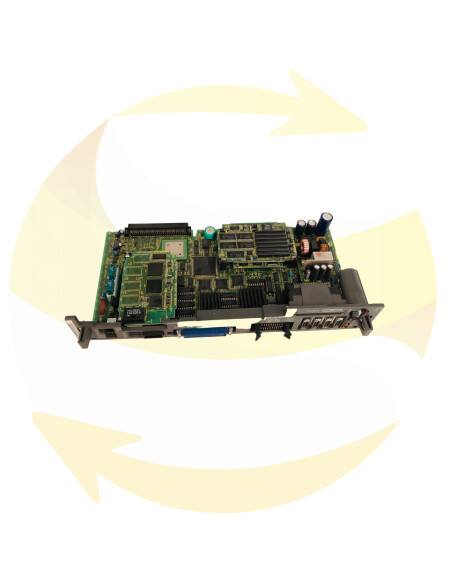

This FANUC CPU board reference A16B-3200-0450/07G is designed to equip FANUC robots.

This CPU LR-Mate card is used to integrate the CPU module, the axis card and the From/Sram module.

This card A16B-3200-0450 is at your disposal to replace your defective equipment and has a guarantee of operation adapted to your needs.

State
  • Refurbished Service Exchange
  • Refurbished Supply
Warranty
€540.00

Options produits

échange standard reconditionné

Service échange standard

Systèmes reconditionnés et testés

Garantie de
6 à 12 mois

échange standard neuf

Service échange standard

Systèmes neufs

Garantie de
12 à 24 mois

fourniture reconditionnée

Service fourniture

Systèmes reconditionnés et testés

Garantie de
6 à 12 mois

fourniture neuve

Service fourniture

Systèmes neufs

Garantie de
12 à 24 mois

fourniture pour pièces

Service fourniture

Systèmes vendus pour pièces

réparation

Service réparation

Reconditionnement de systèmes endommagés

Garantie de
6 à 12 mois

Livraison rapide

Livraison
rapide

Livraison rapide

Produits
garantis

Livraison rapide

Paiement
sécurisé



The CNC control unit consists of the control unit rack, the power unit and printed circuit boards installed in the rack.
On top of the rack is a cooling fan motor. At the rear there is a back plane in which the printed circuit boards are pluged. As shown in the figure below, the upper cover of the control rack opens providing access to the fan motor for possible replacement.

The power unit is installed in the slot closest to the right edge of the rack. The PMC board is inserted into the second slot from the right rack edge. The main CPU board is inserted into the third slot from the right rack edge.
When sub CPU board (or editional axis board) is inserted, it is inserted into the fourth slot from the right rack edge. The remaining other slots are used for option boards. The sequence order of the option boards in the option slots makes no difference in the CNC operation. However, in order to avoid confusion, option boards are inserted according to kinds of the boards.

At the front of a printed circuit board, the interface connectors and LED display are installed and a plastic front panel is attached. There is also a connector attached at the rear edge of the printed circuit board for connecting to the F–BUS back plane.

The modules are small printed circuit boards with surface mount devices mounted on both sides. One edge of each module board has connector electrodes. Module boards are attached by inserting them in the module connectors on the printed circuit board, simplifying the replacement of the module boards. There are a number of modules types available and the circuit function for each is different. Therefore, the connector location for installing each module on the printed circuit board is fixed. If a module is not installed in the correct connector, the system may fail to operate correctly and the circuitry of the control unit or the module itself may be damaged.

However, some modules (ROM, SRAM, etc.) are interchangeable with respect to the signal assignment, enabling the insertion of the module to the connector of the interchangeable module.
