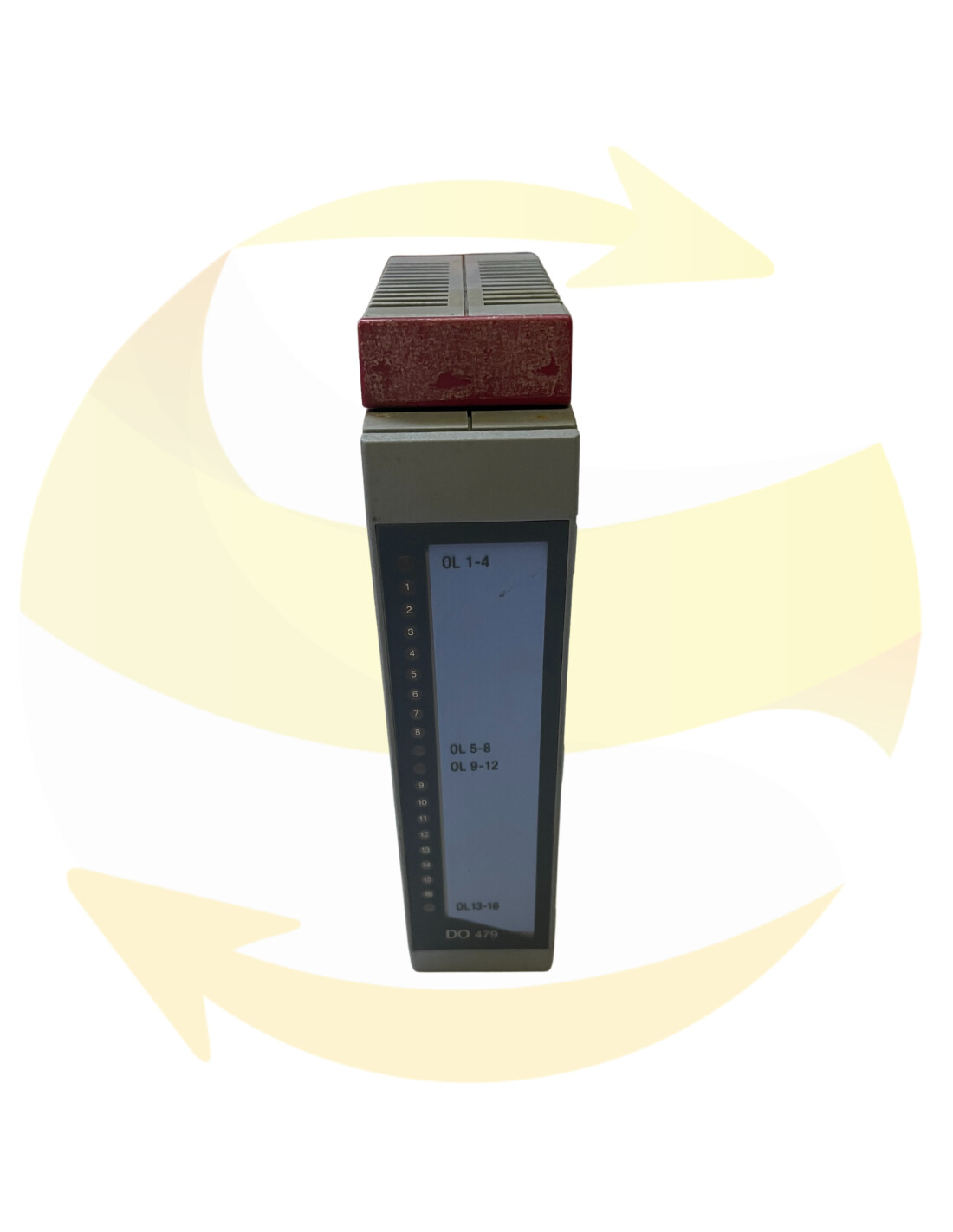

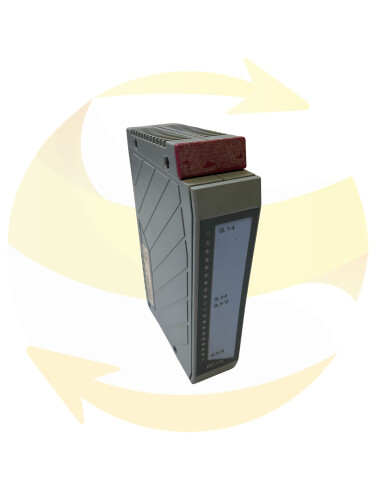

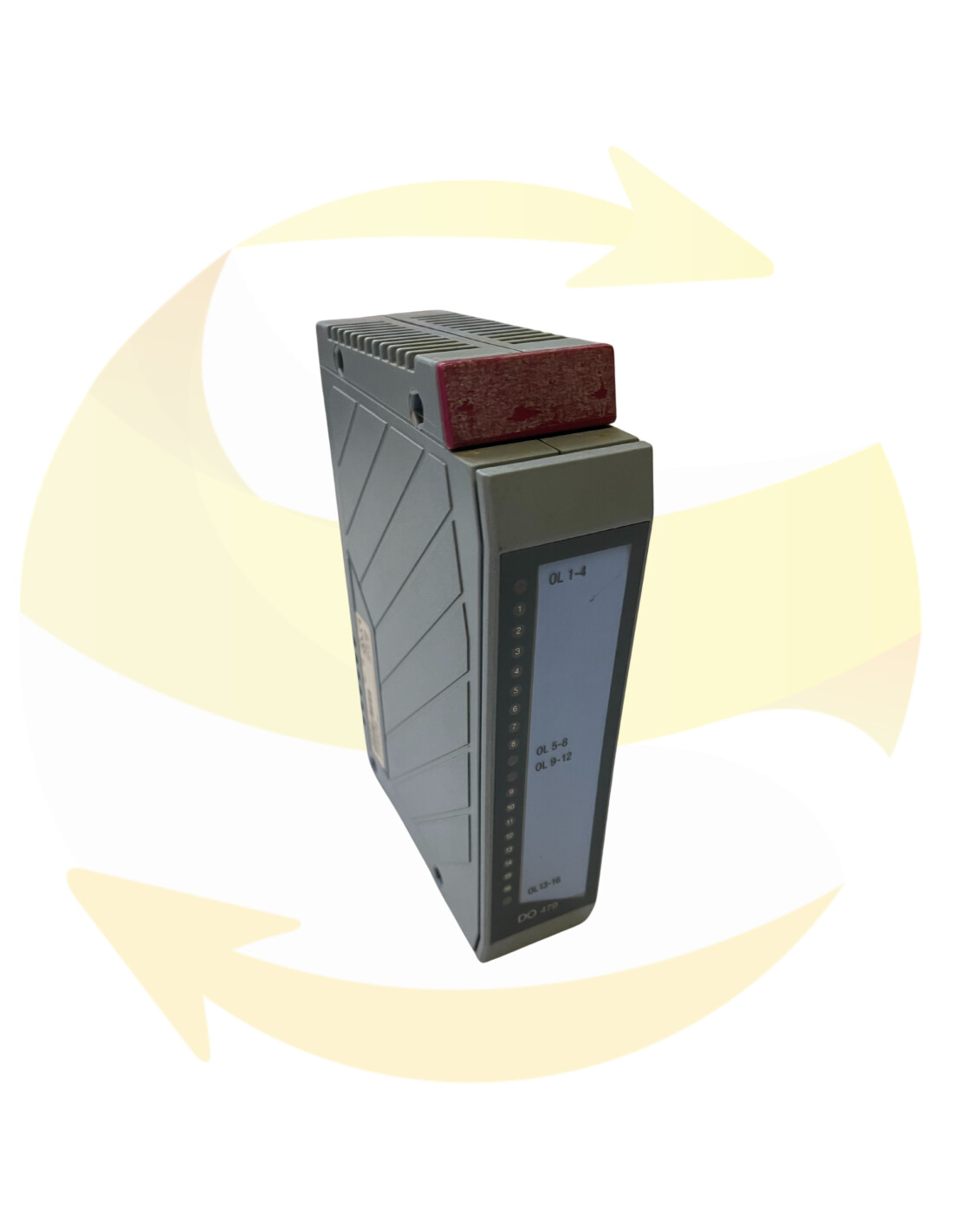

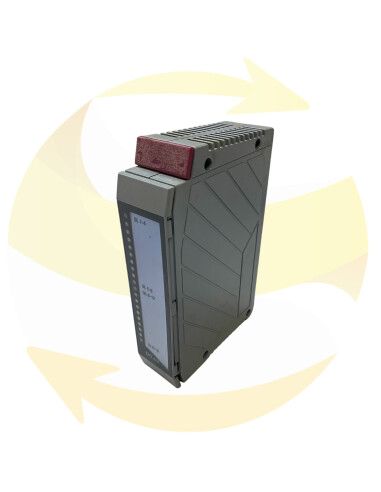

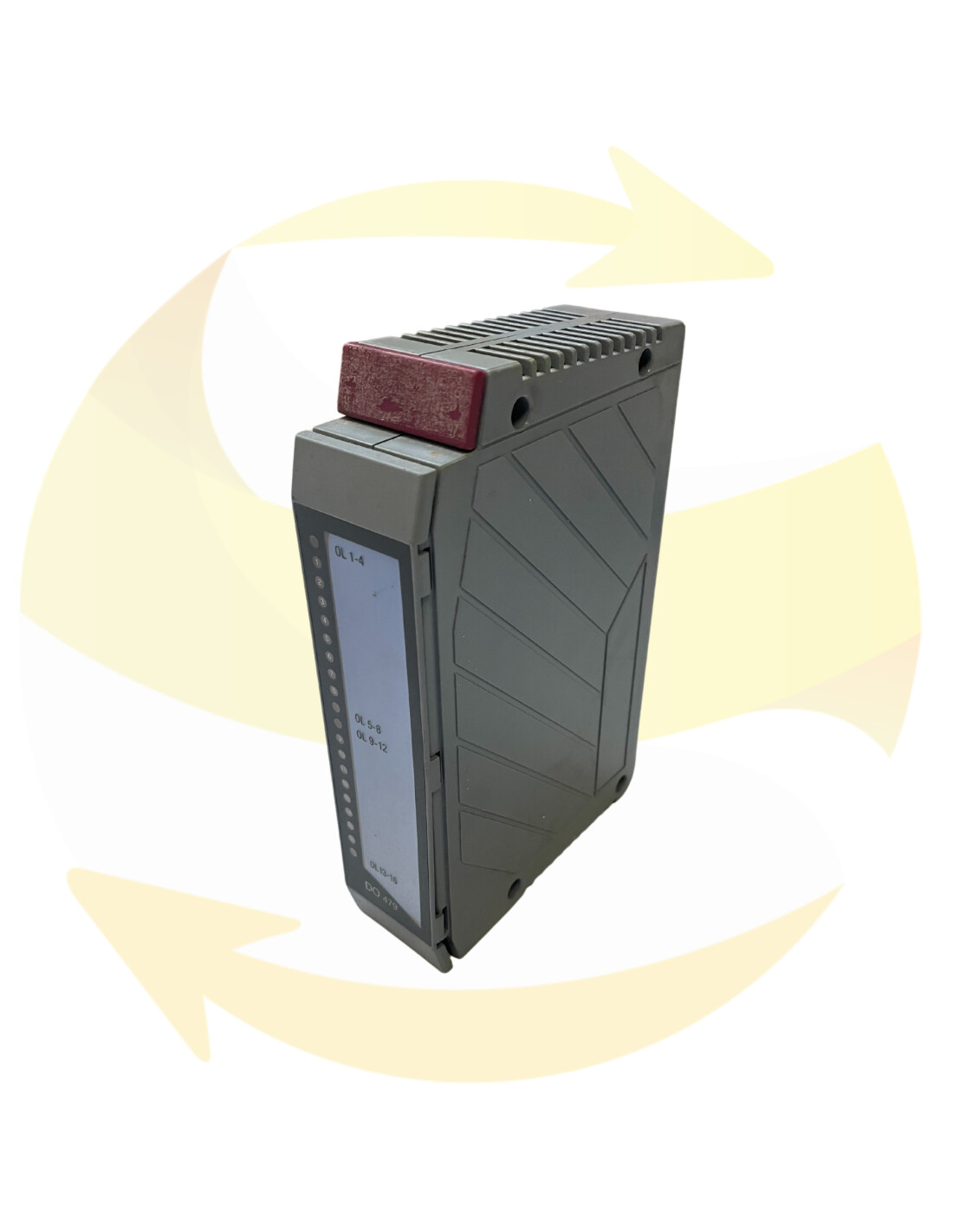

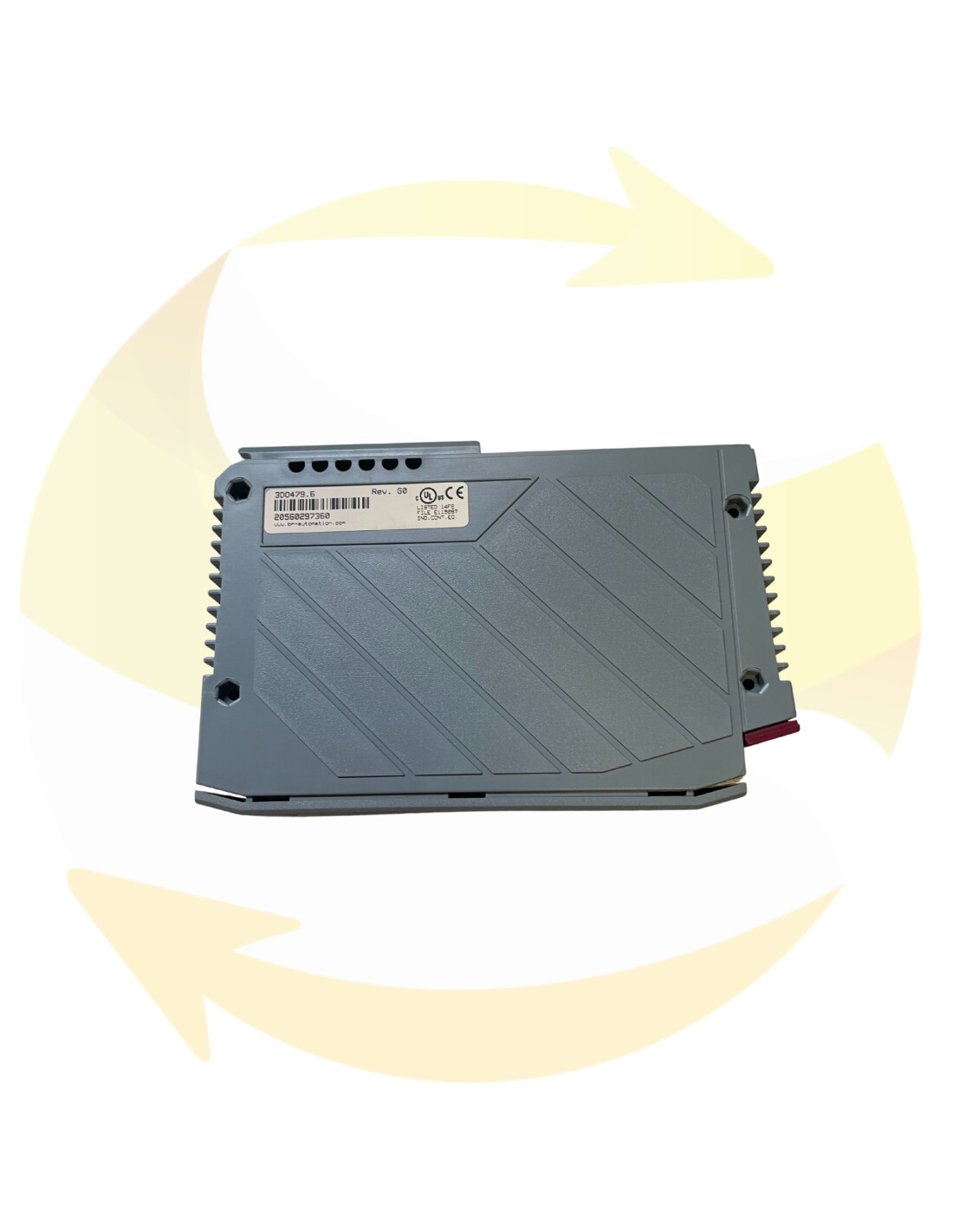

3DO479.6

This B&R digital output module is reference 3DO479.6. It belongs to the B&R SYSTEM 2005 serie.

16 transistor outputs, 24 VDC, 0.5 A

This B&R output module is at your disposal to replace your defective equipment and has a guarantee adapted to your needs.

In stock, ready to ship.
State
  • Refurbished Supply
Warranty
€80.00
VAT excluded

System options

Exchange service with a refurbished unit

Standard Exchange Service

Reconditioned and tested systems

From 6 to 12
month warranty

Exchange service with a new unit

Standard Exchange Service

New systems

From 12 to 24
month warranty

Supply of a refurbished unit

Supply Service

Reconditioned and tested systems

From 6 to 12
month warranty

Supply of a new unit

Supply Service

New systems

From 12 to 24
month warranty

For parts only

Supply Service

Sold for parts – no warranty

Repair

Repair service

Repair will be made to damaged and defectiv units

From 3 to 18
month warranty

Livraison rapide

Fast
delivery

Livraison rapide

guaranteed
products

Livraison rapide

Secure
payment



Digital input modules convert binary process signals into the internal signals required by the PCC. The states of the digital inputsare indicated with LEDs.

Relevant input module features are:
- Number of Inputs
- Input Voltage
- Input Delay (filter)
- Special Functions (e.g. counter inputs)

Input Filter
All inputs have an input filter. The input delay is shown in the technical data sections. Disturbance pulses that are shorter than the input delay are suppressed by the input filter.

Most 24 VDC B&R SYSTEM 2005 input modules can be either wired as sink or source circuits. As the inputs of most modules are generally split into isolated groups of four inputs, the individual groups can be wired differently.

For sink circuits (current consumers from sensor’s point of view), the
input group COM link is connected ground and the inputs are connected to 24 VDC switching sensors.

B&R System 2005 consists of encased modules. The modules (except the power supply and the CPU) can be inserted in any order on the base plate.
The base plate is hung on a mounting rail (according to EN 50022 - 35 x 7.5 mm). This mounting rail is conductively connected to the control cabinet back wall.
Both the bus system and the supply lines are provided on the base plate modules. Base plates are available in different lengths (6, 9, 12, 15 slots).

Height
17 cm / 6,6 in
Width
11,5 cm / 4,5 in
Length
4 cm / 1,5 in
Weight
0,3 kg / 0,6 lb
Family
B&R SYSTEM 2005
Reference
3DO479.6
Refurbished
3000087366423
300087366427

B&R is an Austrian company founded in 1979 by Erwin Bernecker and Josef Rainer in Eggelsberg near Salzburg.

B&R provides complete solutions in industrial automation.

Range of extended products programmed and configured using Automation Studio software.
