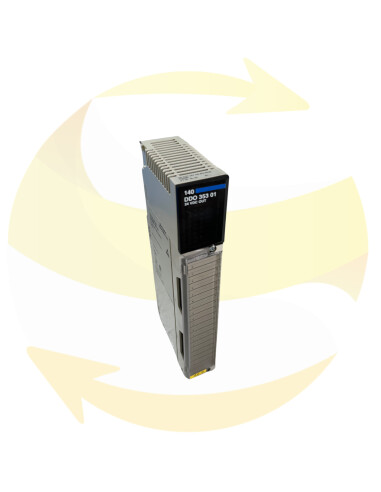

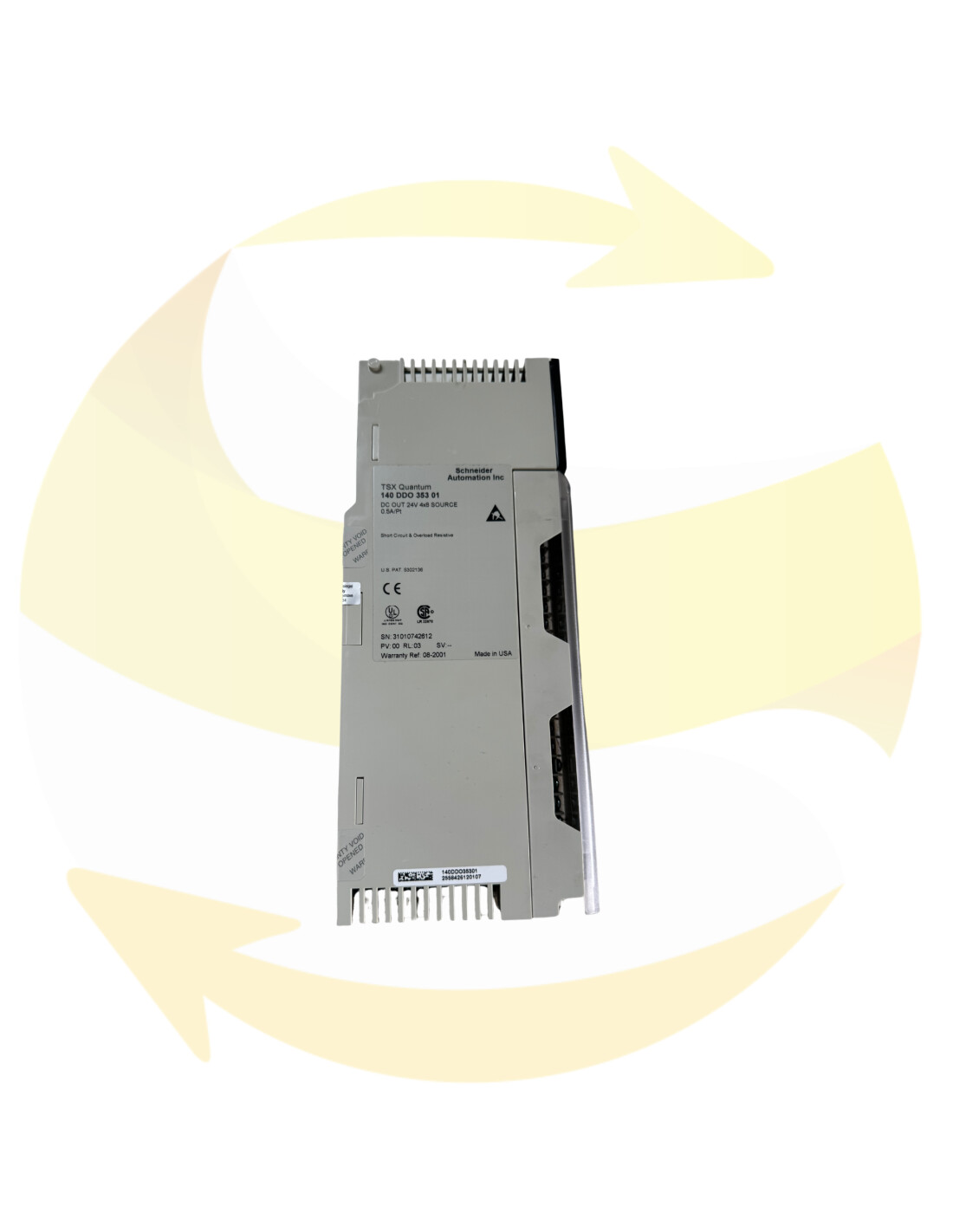

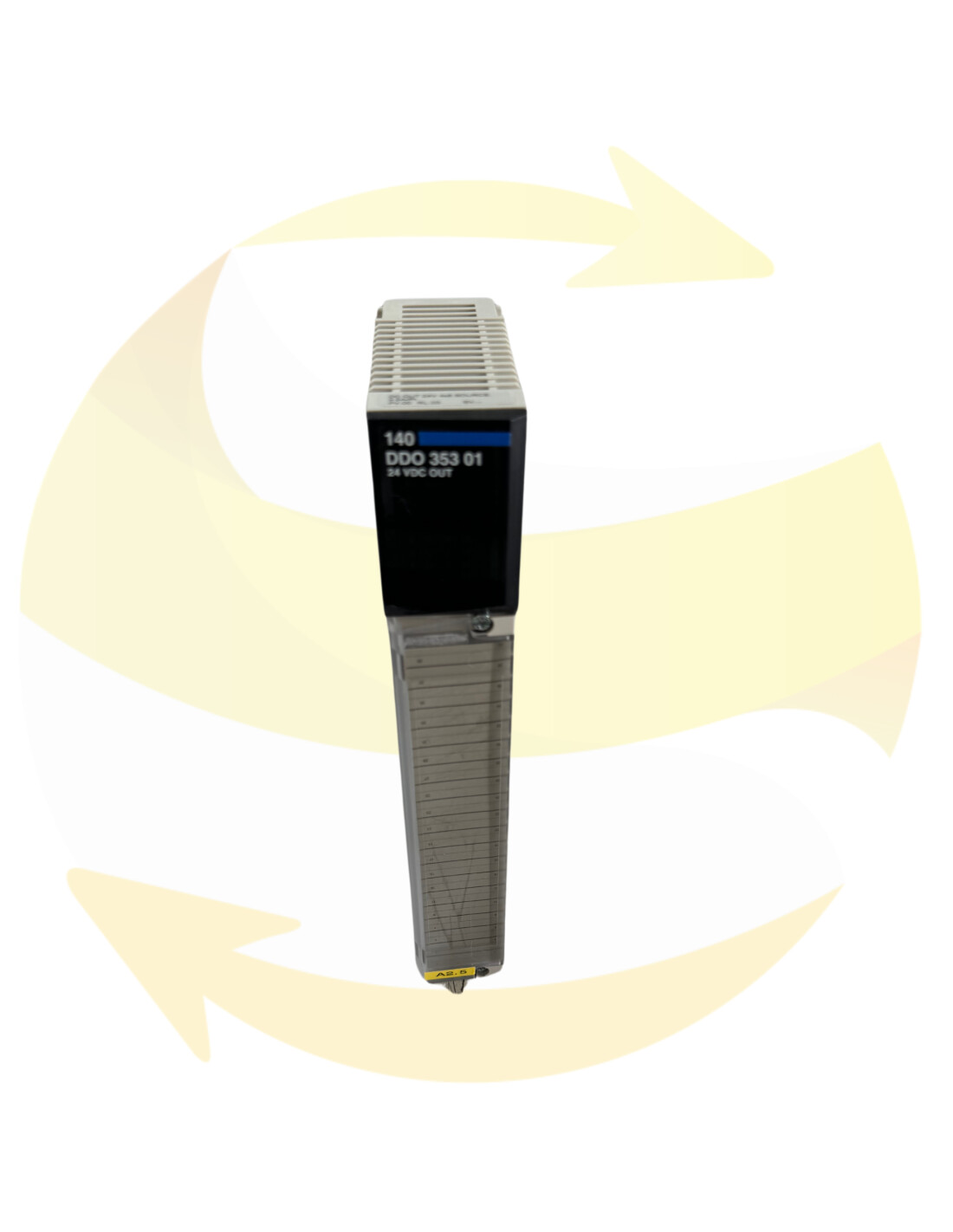

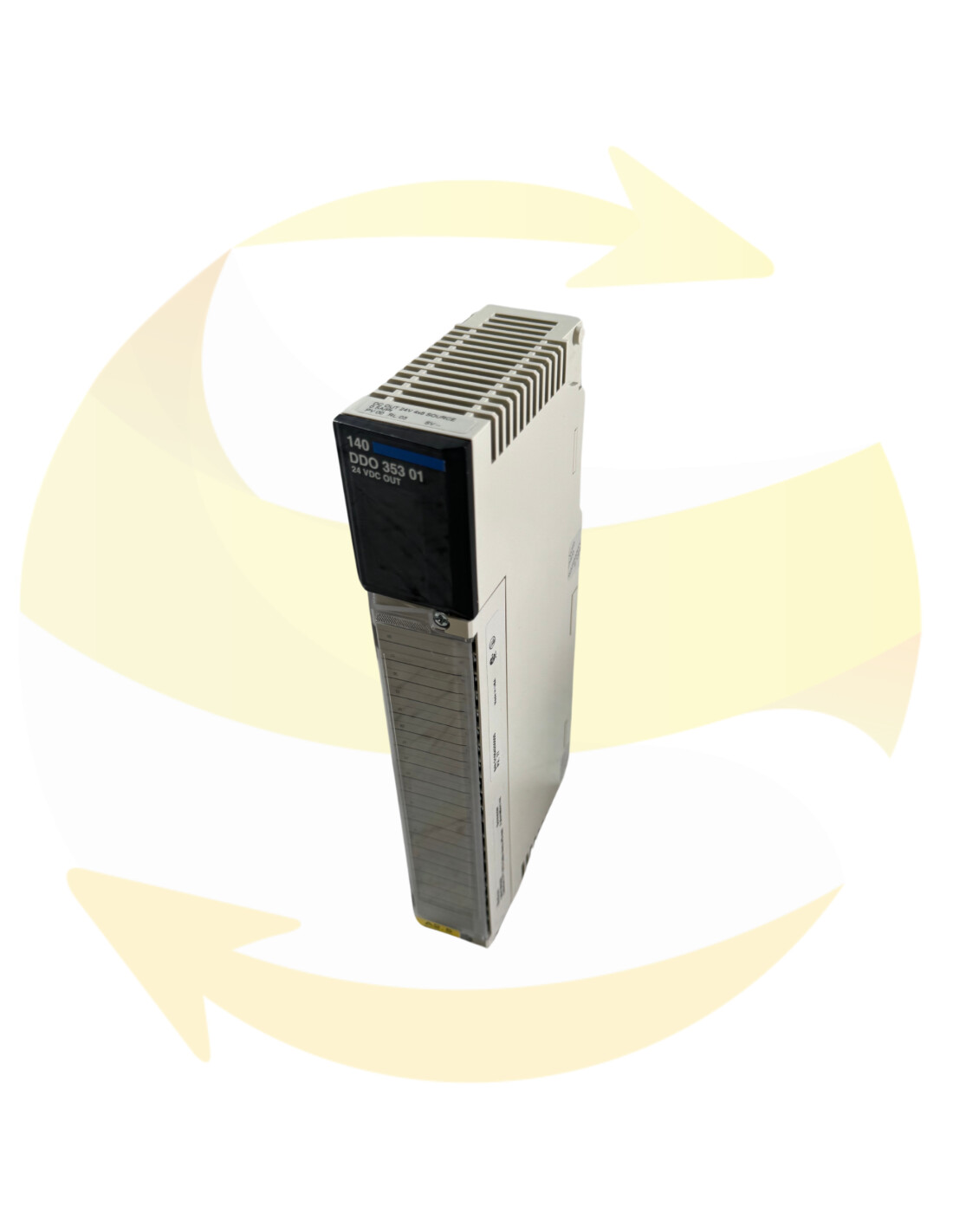

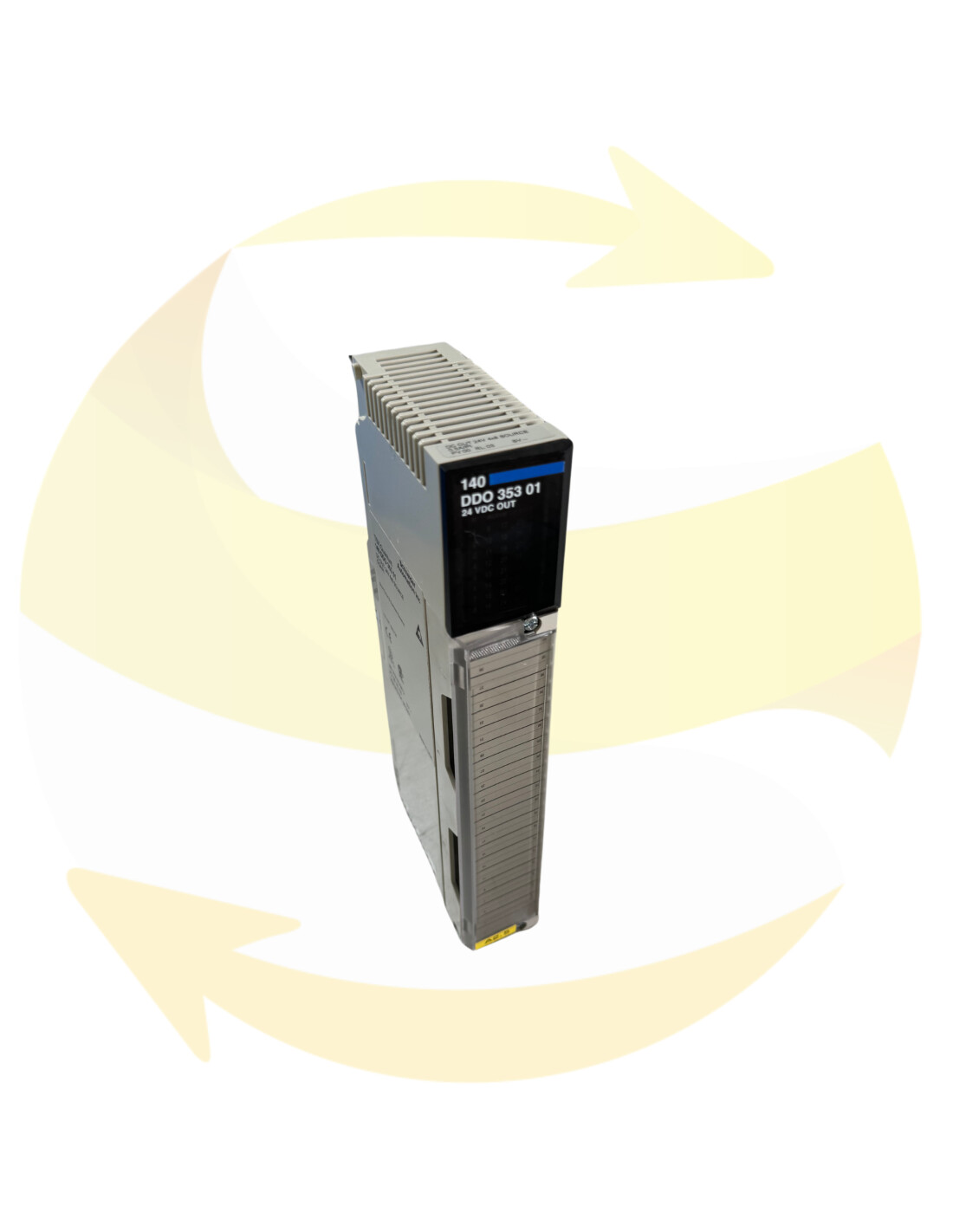

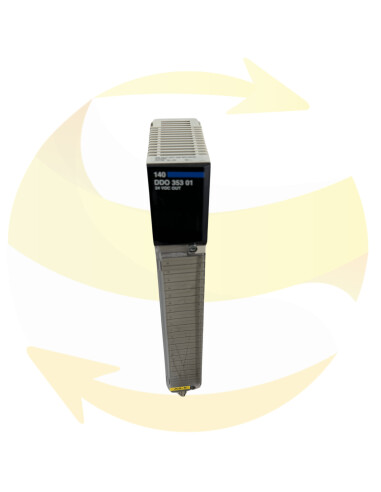

140DDO35301 - Digital output module - SCHNEIDER ELECTRIC
This SCHNEIDER ELECTRIC digital input module, reference 140DDO35301, is part of the MODICON QUANTUM range.
140DDO35301 : 32 outputs - 24Vdc - 250mA
This 140DDO35301 digital output module is available as standard supply or exchange to replace your defective equipment and has a warranty.
The Modicon Quantum system is a special-purpose computing system with digital processing capabilities. Modicon Quantum is designed for real time control in industrial and manufacturing applications in a modular, expandable architecture employing the following modules.
- Power Supply Module
- CPU
- I/O
- I/O Network Interface
- Intelligent/Special Purpose I/O Simulator (XSM)
- Battery
- Backplane
- CableFast Cabling
This section provides information on configuration of 8-, 12-, 16-, 32- and 96-point output modules.
The following shows the 8-point output module:
- 140DRC83000 (Relay Ouput 8x1 Normally Open/Normally Closed)
The 12-point output module is:
- 140DDO88500
The 16-point output modules are as follows:
- 140DAO84000 (AC Output 24 ... 230 Vac 16x1)
- 140DAO84010 (AC Output 24 ... 115 Vac 16x1)
- 140DAO84210 (AC Output 100 ... 230 Vac 4x4)
- 140DAO84220 (AC Output 48 Vac 4x4)
- 140DDO84300 (DC Output 10 ... 60 VDC 2x8 Source)
- 140DRA84000 (Relay Output 16x1 Normally Open)
The following list shows the 32-point output modules:
- 140DAO85300 (AC Output 230 Vac 4x8 Sink)
- 140DDO15310 (DC Output 5 V 4x8 Sink)
- 140DDO35300 (DC Output 24 Vdc 4x8 Source)
- 140DDO35301 (DC Output 24 Vdc 4x8 Source)
- 140DDO35310 (DC Output 24 Vdc True Low 4x8 Sink)
The 96 point output module is:
- 140DDO36400 - DC out 24VDC 6x16 Source
SCHNEIDER ELECTRIC is a French industrial group with international dimension, which manufactures and offers electricity management products, automation and solutions adapted to these trades.
Having consolidated its financial base thanks to the arrival of new shareholders and the simplification of its structures, Schneider began its redeployment at the end of the 1980s. Having joined Merin Gerin in the group (1986), the general management embarked on a acquisition strategy, marked by the integration of important companies that will become the core of the current group:
Télémécanique (1988)
Square D (1991)
Merlin Gerin (1992)
Modicon (1996)
