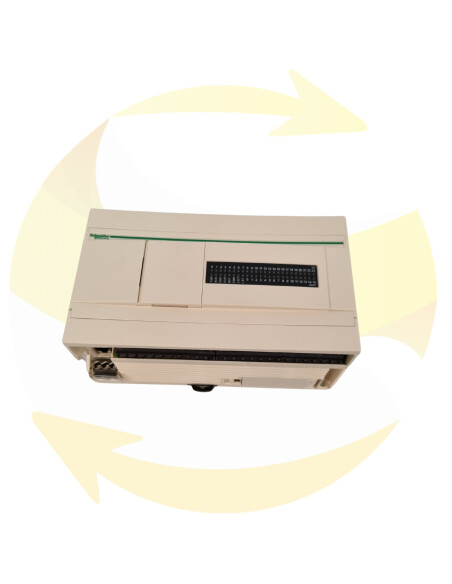

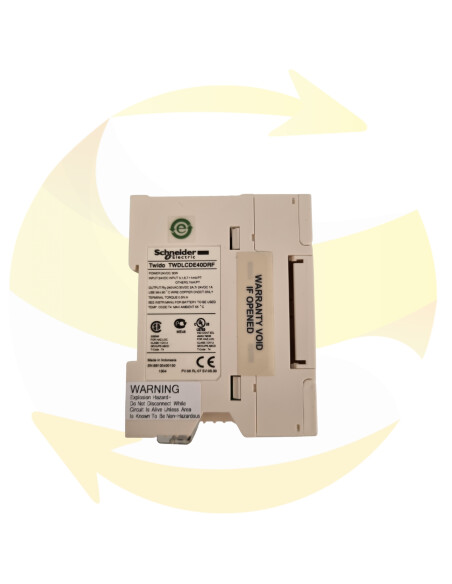

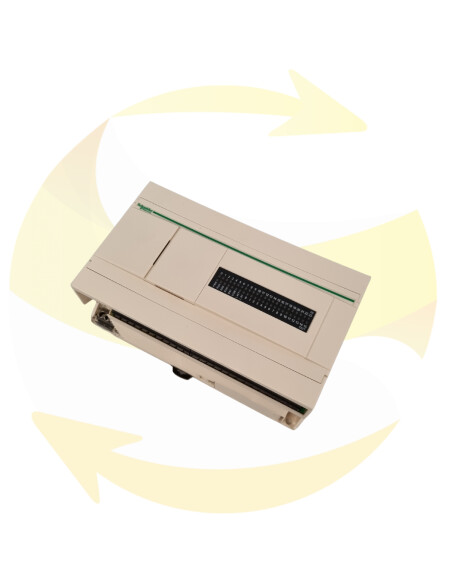

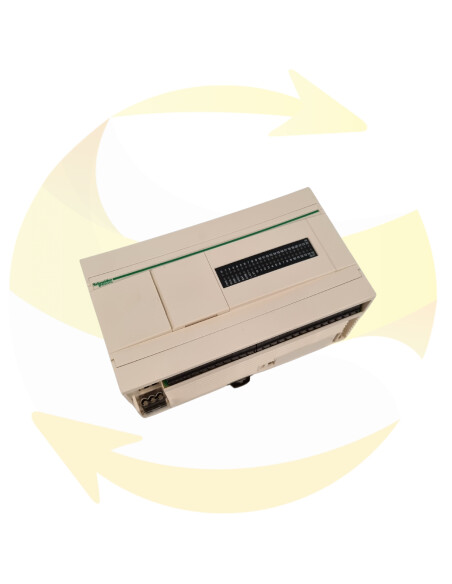

TWDLCDE40DRF - PLC - TELEMECANIQUE
This PLC TWDLCDE40DRF and TELEMECANIQUE brand is a compact 40 inputs / outputs. This controller belongs to the TWIDO range.
24 inputs / 16 outputs.
Input / Output Type: 24 V DC, Relay X 14, Transistors X 2, Ethernet Port
Power supply: 24 V DC
This PLC TWDLCDE40DRF Telemecanique is at your disposal to replace your defective equipment and has a suitable guarantee
There are two models of Twido bases:
- Compact bases
- Modular bases
Compact bases are available with 10, 16, 24 or 40 I / O.
Modular bases are available with 20 or 40 I / O.
Additional I / O can be added to the bases using modules
I / O expansion. These are the following modules:
- 15 expansion modules of digital I / O type or relay;
- 10 expansion modules of analog I / O type.
It is also possible to add several options to the PLC databases, as shown in the table in the section - Database Options
In addition to these options, you can also add the following options:
Programming Cables
Digital I / O cables
Telefast pre-wired systems with I / O interfaces.
The connection to an AS-Interface bus interface module can also be used to manage up to 62 slave devices. Use the following module:
- AS-Interface bus master module V2: TWDNOI10M3.
Compact 24 I / O and 40 I / O bases and all modular bases can be connected to a CANopen fieldbus interface module. The CANopen master module can manage up to 16 CANopen slave devices (not exceeding 16Transmit-PDOs (TPDO) and 16Receive-PDOs (RPDO)). Use the following module:
- master module CANopen fieldbus interface: TWDNCO1M.
Advanced integrated features are available on compact bases TWDLC •• 40DRF:
- Integrated 100Base TX Ethernet network port: TWDLCAE40DRF and TWDLCDE40DRF only;
- built-in time stamp (RTC): TWDLC •• 40DRF;
- fourth fast counter (FC): TWDLC •• 40DRF;
- External battery support: TWDLC •• 40DRF.
