PCD4-E110 - Inputs module - SAIA

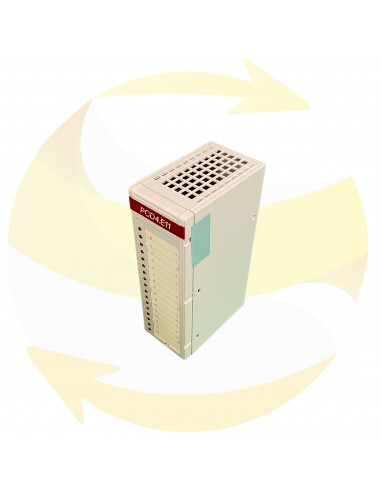

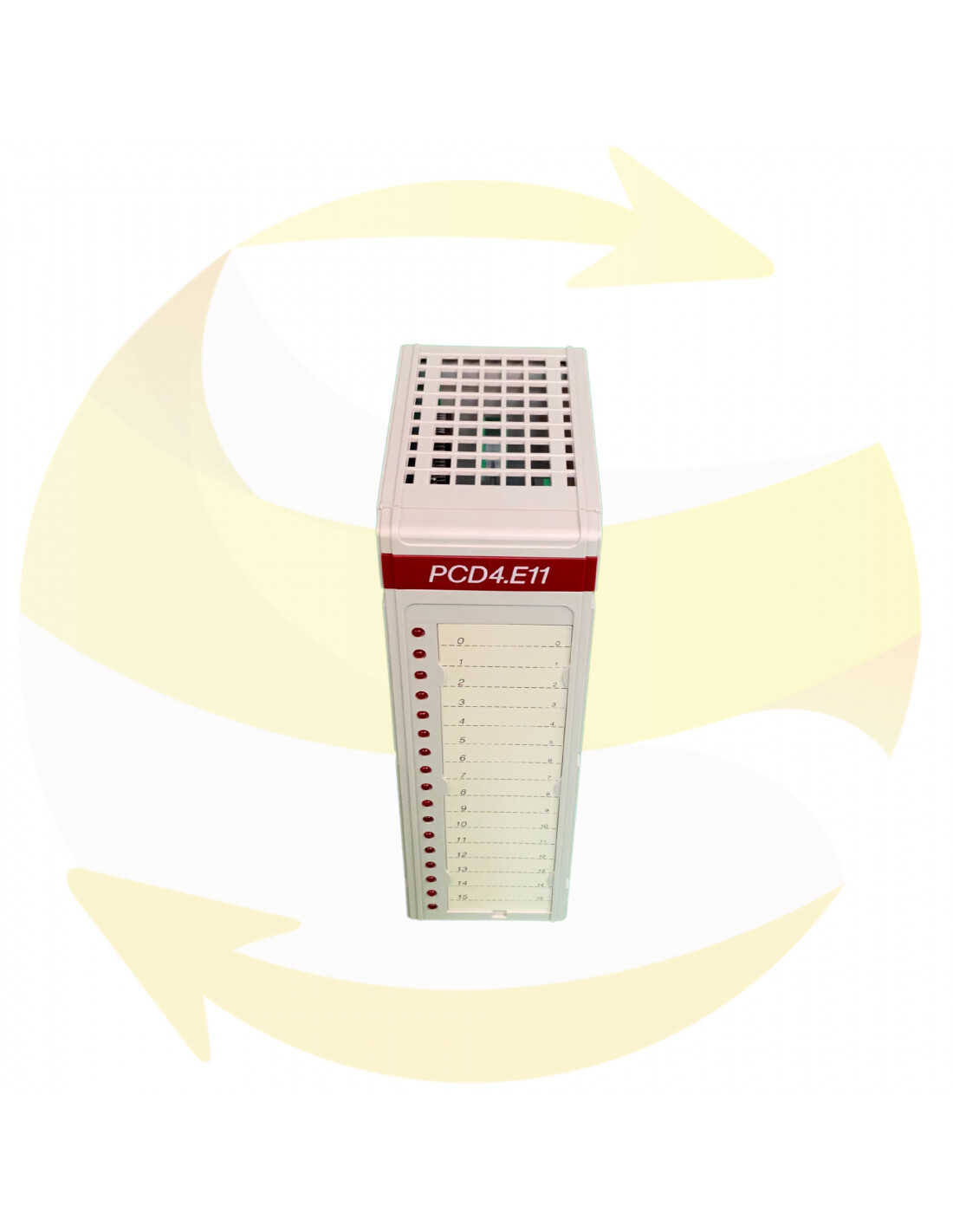

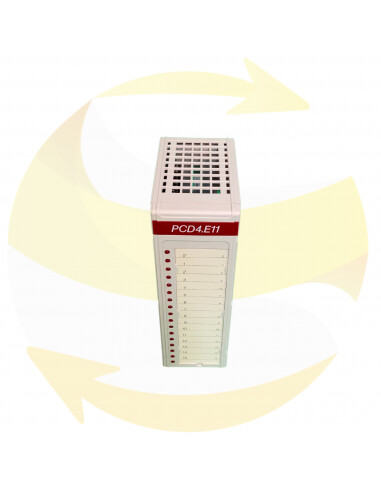

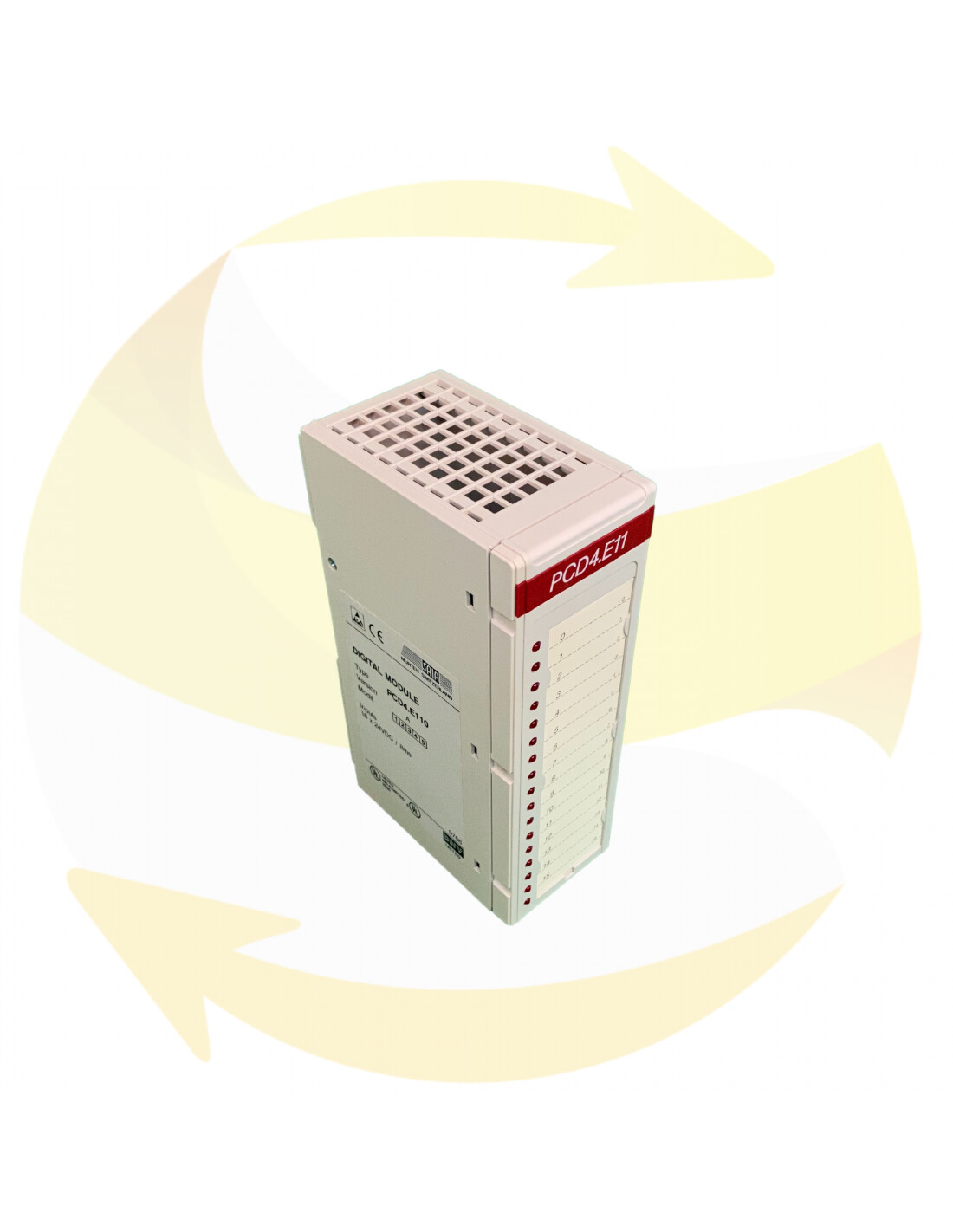

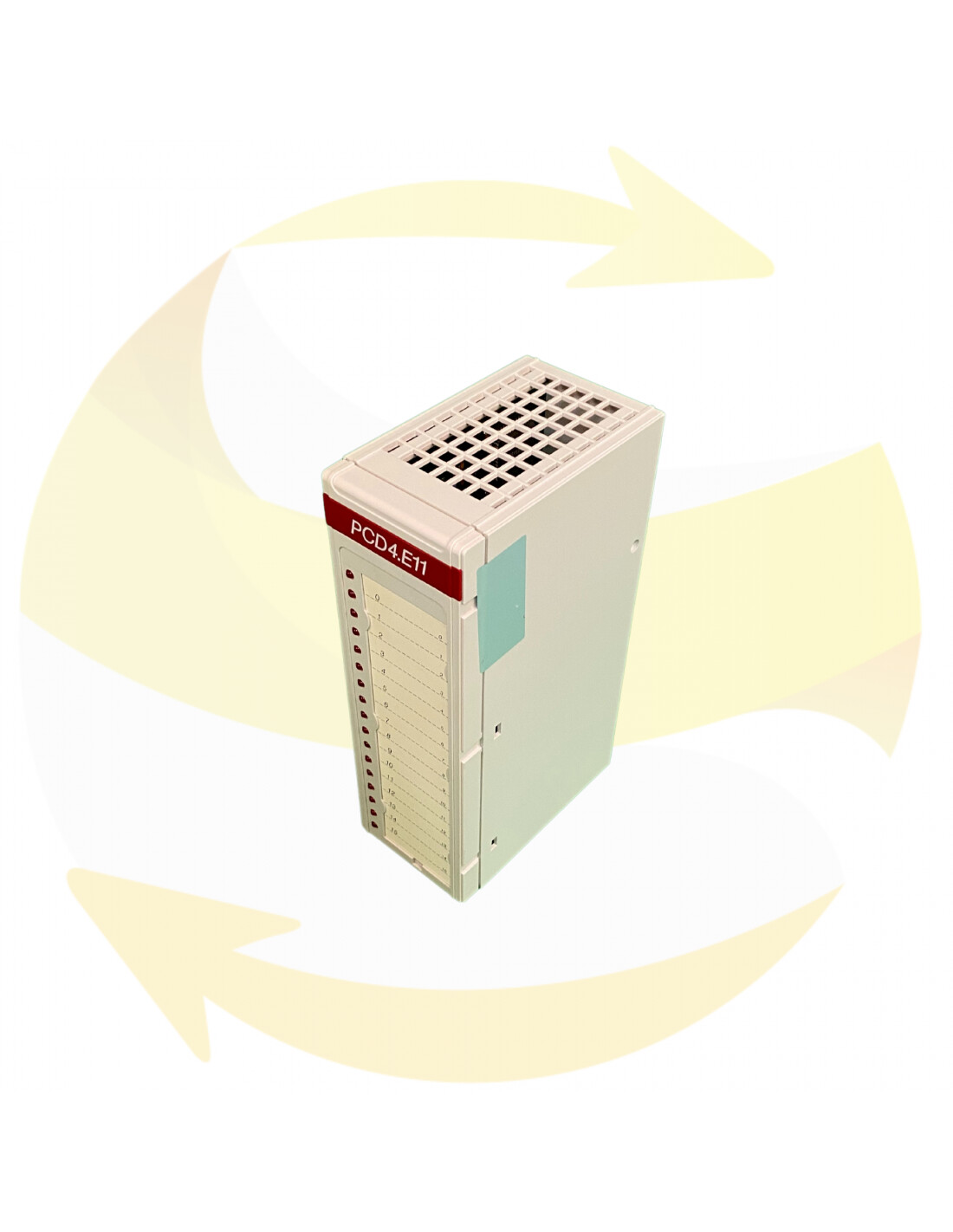

This SAIA input module is reference PCD4-E110. It is part of the PCD4 range.
24 Volts, 8mA / Positive or negative logic. 16 entries.
This SAIA all-or-nothing (TOR) input module is available to replace your defective equipment and has a guarantee adapted to your needs.
Module reconditioned and tested on PLC bench (100% test).
Powerful functions concentrated in the base controller
■ Capacity up to 510/2048 inputs/outputs: A modular design with 32 slots to accommodate all types of modules: discrete or analog I/O, counting, measurement and/or positioning cards
– up to 510 centralized inputs/outputs,
– up to 2048 remote inputs/outputs (PROFIBUS DP).
■ Up to 1 MB of user memory for programs, texts and data blocks. Optional 1 MB Flash memory facilitates downloading of program changes and backups.
■ A maximum of 6 serial ports of your choice: RS 232, RS 422, RS 485 or TTY/BC 20 mA.
■ Choice of fieldbus connections: PROFIBUS FMS, PROFIBUS DP in master or slave mode and Ethernet-TCP/IP.
■ Standard inputs: fast counters and interrupt inputs directly on the PLC CPU (with PCD4.M170). High-performance operating software and programming tools
■ Efficient programming with multi-language PG5 software (IL instruction list, FUPLA ladder diagram, GRAFTEC, etc.) combined with diagnostic functions and additional tools. A powerful set of instructions, complete libraries of function boxes (FBox) and a structure conforming to the international standard IEC 1131-3 simplify the editing of programs in a transparent way to the user.
■ Portability of user programs guaranteed by the harmonization of system resources and the integrated SAIA®S-Bus: these programs are thus transferable and immediately operational on the entire PCD range, from PCD1 to PCD6.
■ Maximum responsiveness (low response times) thanks to direct access to I/O signals, without going through an input/output image memory.
■ Flexibility of integration into company networks: the communications and programming of your automation systems are carried out on Ethernet-TCP/IP, from upstream to the devices connected to the PROFIBUS DP or FMS field bus.
The PCD4 range is a model of flexibility. From a simple system consisting of the most modest processor, a serial interface, an economical power supply and 2 I/O modules, to a complete equipment with 32 I/O modules, specialized modules ( counting, axis control, etc.), a ..M170 processor module, 6 fully autonomous serial interfaces and SAIA®S-Bus, PROFIBUS FMS/DP or Ethernet-TCP/IP network connections… SAIA immediately offers an optimal configuration or a variable architecture, able to evolve according to your needs. All the modules are in the form of cassettes of the same size, which are plugged into the corresponding bus modules, which are themselves snapped onto rails and interconnected to form the "system bus". Since the process connections are made directly to the bus modules, you are free to insert or remove the cassette modules without ever having to work on the wiring.
SAIA-Burgess is a Swiss company specialized in the manufacture of electric motors, contactors and automatic control systems.
Its fields of activity are important: Electric motor/ Switch/ Automatons/ HMI/ Electric meters
