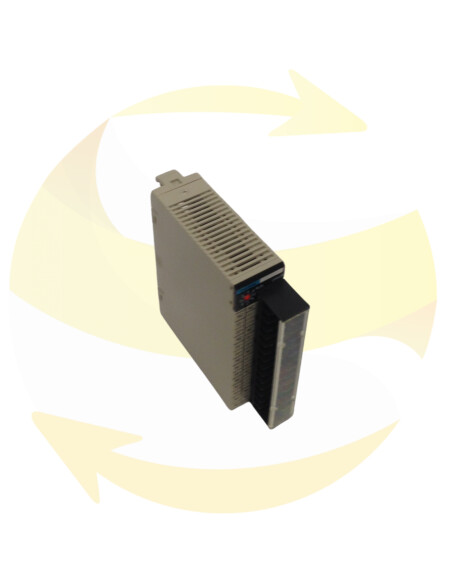

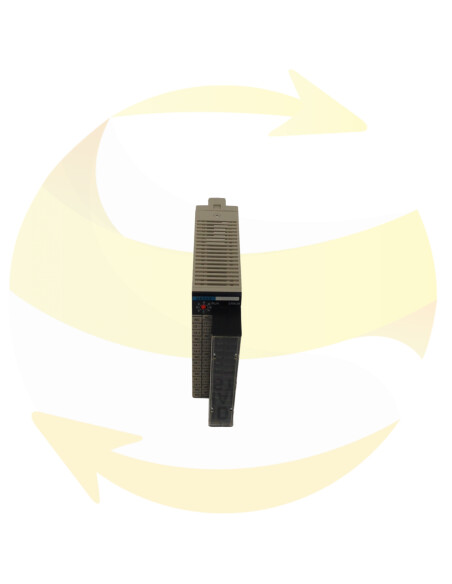

C200H-DA001 - Output Module - OMRON
C200H-DA001
This output module of OMRON brand and reference C200H-DA001 belongs to the CS1 range.
Output module: 4 to 20 mA, 2 outputs, 1/4000 resolution.
This output module C200H-DA001 is at your disposal to replace your defective equipment and has a guarantee adapted to your needs.
Standard Exchange Service
Reconditioned and tested systems
From 6 to 12
month warranty
Standard Exchange Service
New systems
From 12 to 24
month warranty
Supply Service
Reconditioned and tested systems
From 6 to 12
month warranty
Supply Service
New systems
From 12 to 24
month warranty
Supply Service
Sold for parts – no warranty
Repair service
Repair will be made to damaged and defectiv units
From 3 to 18
month warranty
Fast
delivery
guaranteed
products
Secure
payment
All general specifications of the C200H-DA003/DA004 Analog Output Units conform to those of the C200H, C200HS, and C200HX/HG/HE Series.
These special-purpose Units enable highly accurate analog input and output at a resolution of 4,000, for C200H, C200HS, and C200HX/HG/HE PC systems. The C200H-AD003 Analog Input Unit converts analog sensor output to digital format and transmits it to C200H, C200HS and C200HX/HG/HE PCs. The C200H-DA003 and C200H-DA004 Analog Output Units convert C200H, C200HS, and C200HX/HG/HE digital data to analog format for output. The C200H-MAD01 Analog I/O Unit provides both input and output functions.
High-speed Conversion
The Analog Input and Output Units provide high-speed data conversion at 1 ms per I/O point. The sampling period can be further shortened by setting unused inputs and outputs so their use is prohibited.
Input Disconnection Detection Function
The input disconnection detection function can be used for analog inputs within an input signal range of 1 to 5 V (4 to 20 mA). When this function is set for use, any input under 0.3 V will be regarded as a disconnection.
Peak Value Function
The peak value function holds the maximum digital conversion value for every input (including mean value processing). This function can be used with analog input. The following diagram shows how digital conversion values are affected when the peak value function is used.
- Height
- 14 cm / 5,5 in
- Width
- 3,5 cm / 1,3 in
- Length
- 13 cm / 5,1 in
- Weight
- 0,4 kg / 0,8 lb
- Family
- CS1 - OMRON
- Reference
- C200H-DA001
New product
3003143219770
300835305302
Omron was created by Kazuma Tateish in 1933. Based in Kyoto, Japan, Omron Corporation is a global leader in automation. Headed by President Yoshihito Yamada, Omron has approximately 37,000 employees in more than 36 countries who offer products and services in various areas, including automation components and systems, electronic components and medical and paramedical products.
