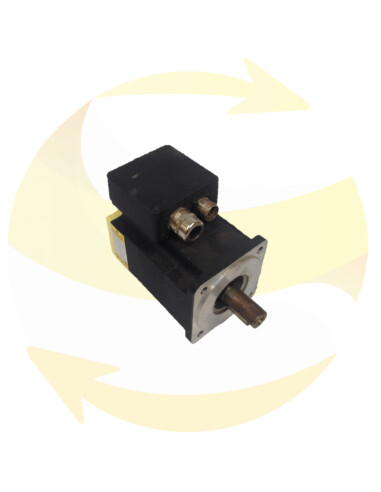

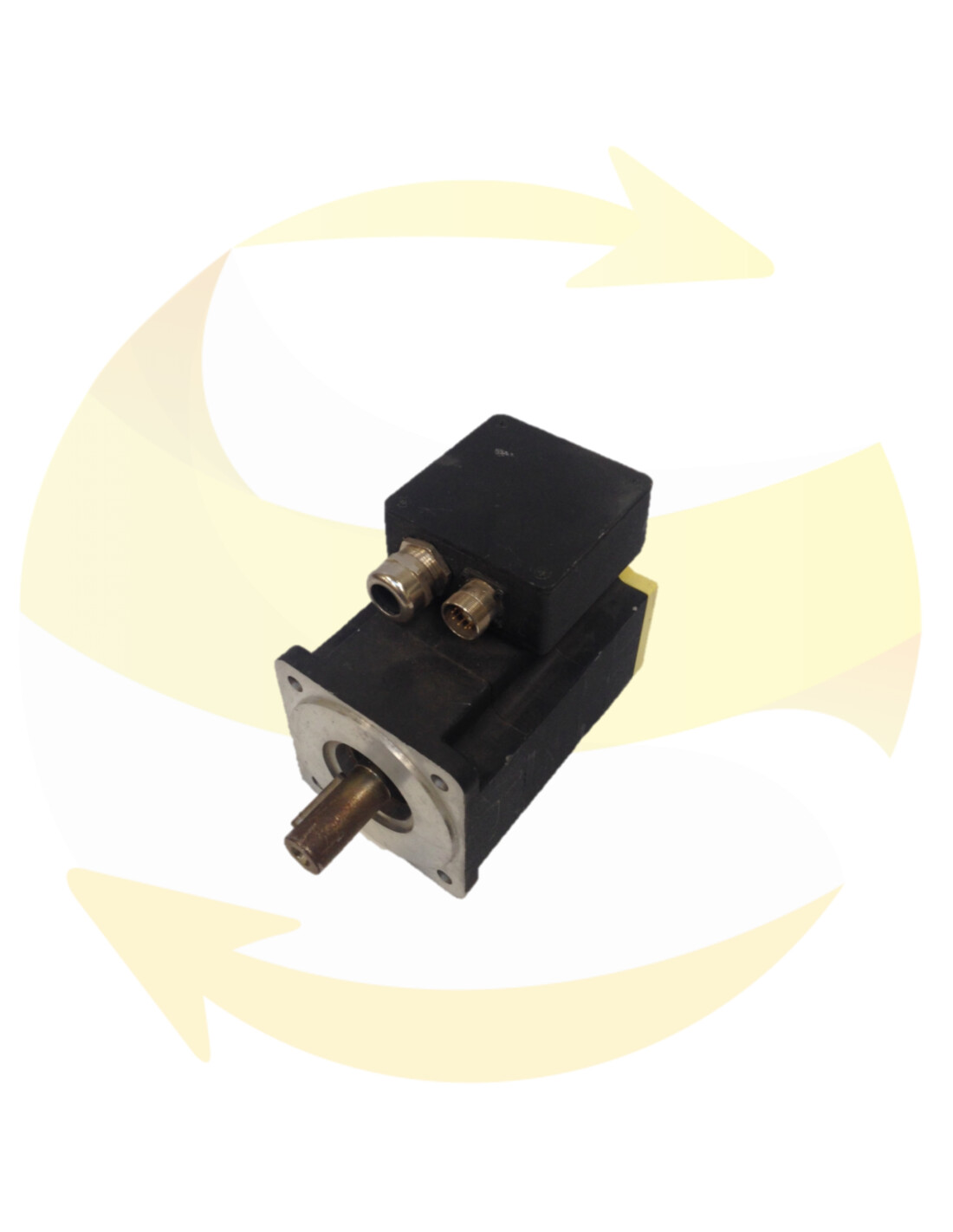

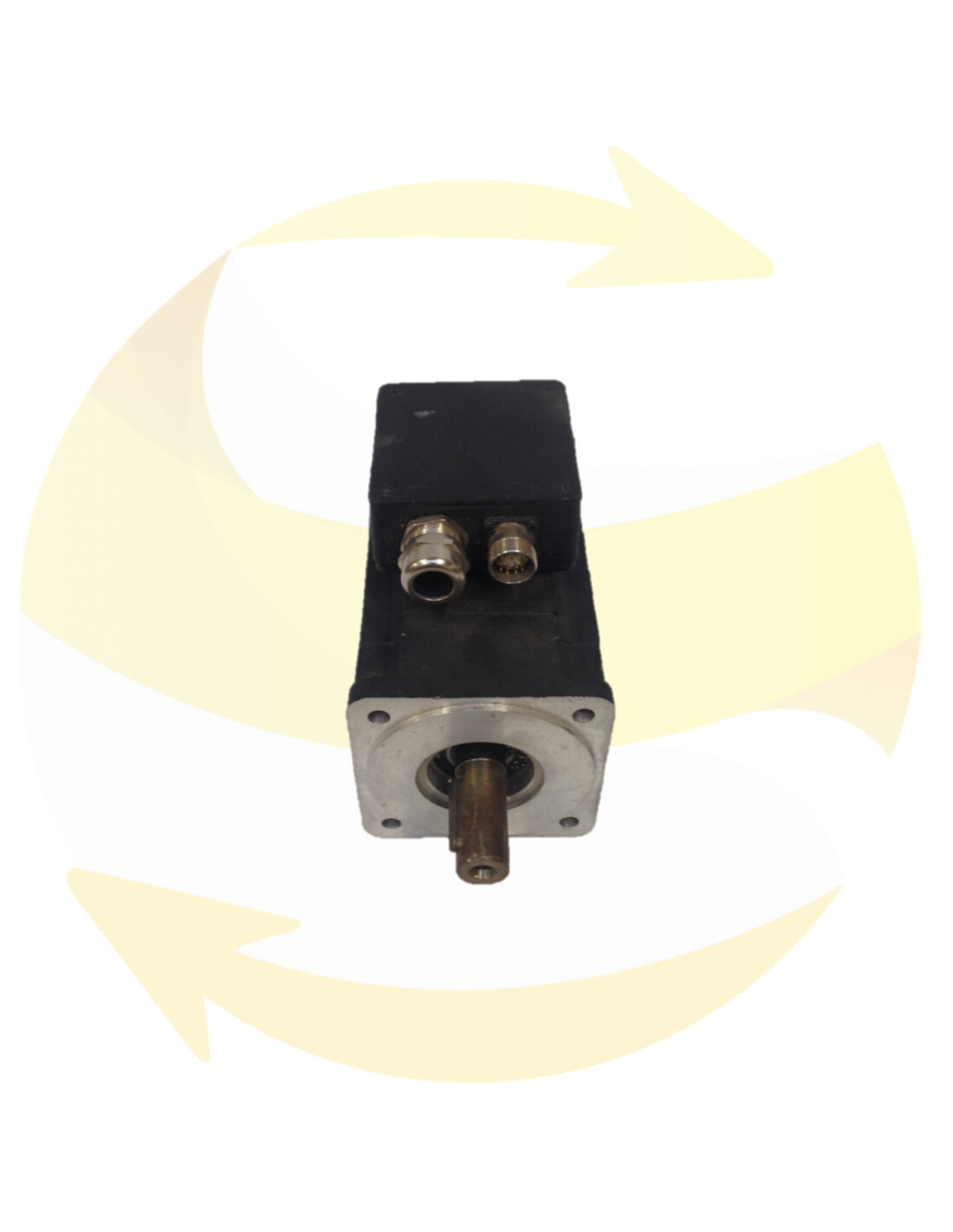

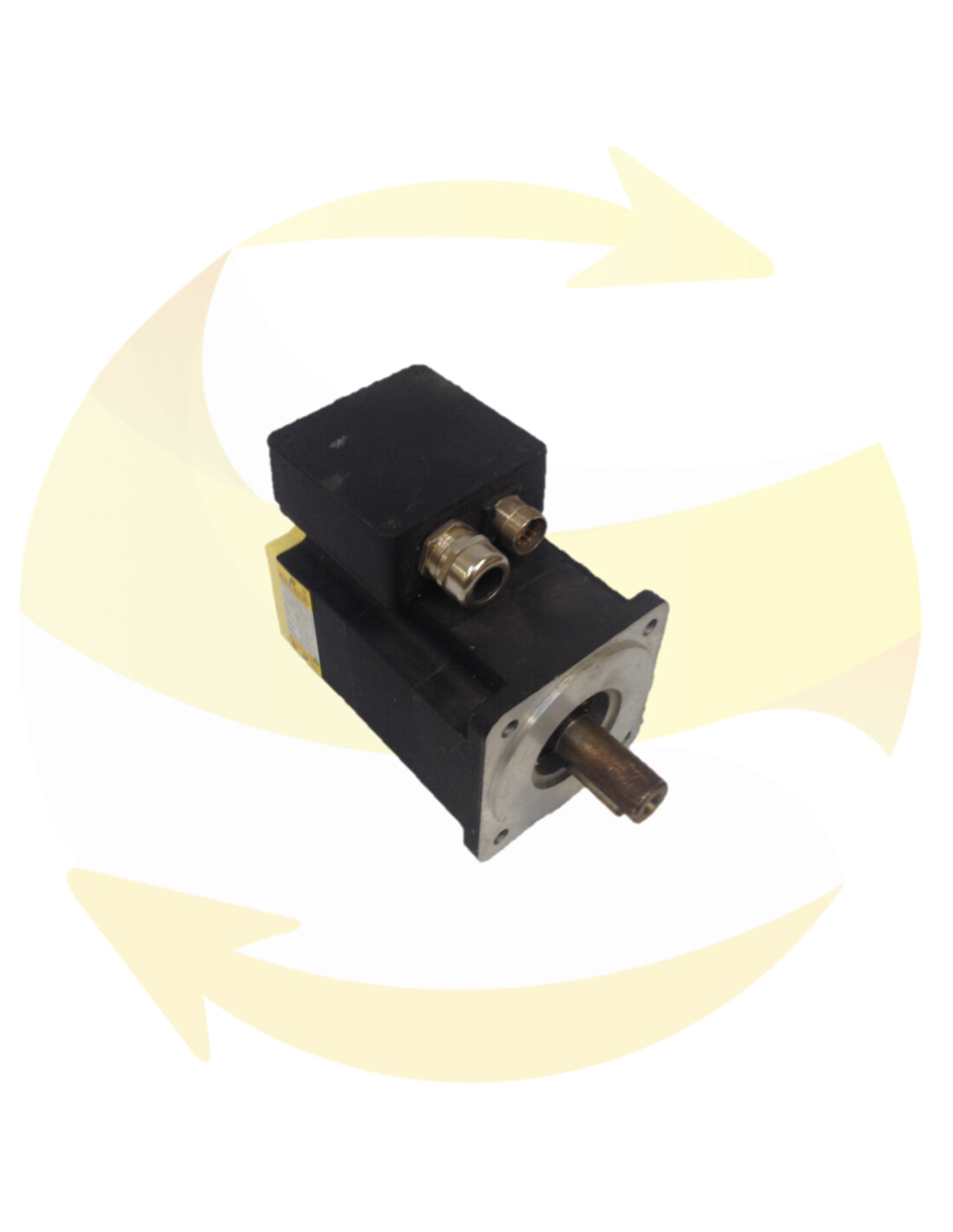

BSM90N-175AA - Servo Motor brushless - BALDOR
BSM90N-175AA
This reference motor BSM90N-175AA and brand BALDOR is a Brushless motor AC.Gamme C series

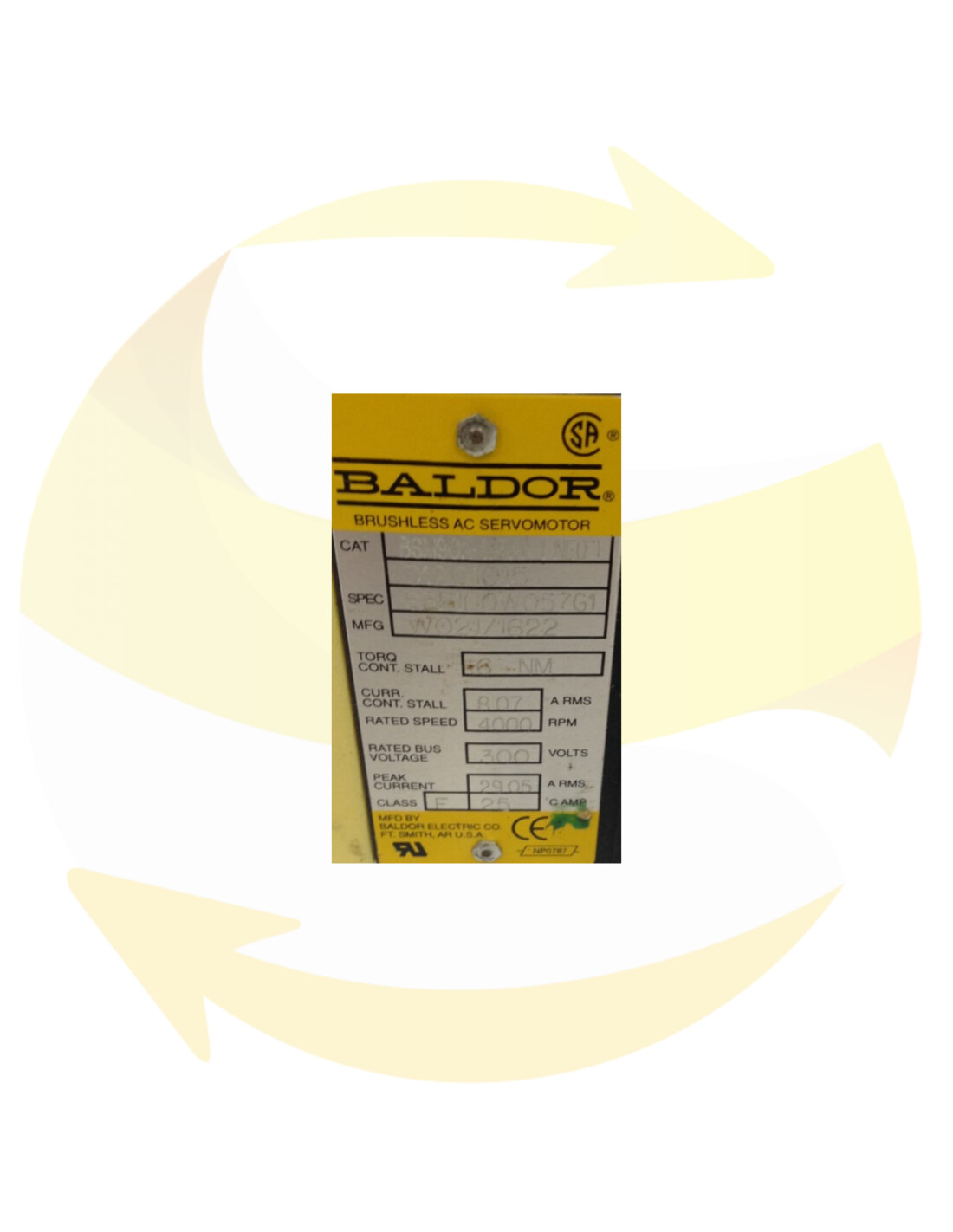

TORQ CONT STALL: 6 NM, CUR CONT STALL / AT RMS: 8.07, POWER: 0.53kW, RATED SPEED / RPM: 4000, RATED BUS VOLTS: 300, PEAK CUR / AT RMS: 29.05, MAX MECH SPEED 6000
This BALDOR Engine is at your disposal to replace your equipment and has a guarantee adapted to your needs
Standard Exchange Service
Reconditioned and tested systems
From 6 to 12
month warranty
Standard Exchange Service
New systems
From 12 to 24
month warranty
Supply Service
Reconditioned and tested systems
From 6 to 12
month warranty
Supply Service
New systems
From 12 to 24
month warranty
Supply Service
Sold for parts – no warranty
Repair service
Repair will be made to damaged and defectiv units
From 3 to 18
month warranty
Fast
delivery
guaranteed
products
Secure
payment
‘BSM’ Brushless ac Servo Motors
• High performance Brushless ac Servo Motors provide fast response and are designed to ensure maximum in-field durability and reliability. They offer an extremely high torque to inertia ratio in a compact and well thought-out package.
• ‘BSM 63A/80A/90A/100A’ motors incorporate ultra low inertia ‘samarium cobalt’ (rare earth) magnets to ensure optimum acceleration and operational performance for the most demanding applications.
• ‘BSM 50N/63N/80N/90N/100N’ incorporate ultra low inertia ‘niodymium’ magnets which provide performance comparable to ‘rare earth’ magnets and lower cost advantages.
• ‘BSM 80B/90B/100B’ motors provide the high performance and economy for normal applications.
• ‘BSM C Series Motors’ are the most cost effective Baldor brushless servo motor per unit of torque. They have been developed with a new ‘Ring Magnet’ rotor design which incorporates Neodymium magnet material. Major advantages include a 20-50% increase in torque and a reduced length of the motor (when compared with B series ferrite magnet motors). C series motors will also be available in the BSM100 size in the near future.
- Height
- 17 cm / 6,6 in
- Width
- 23 cm / 9 in
- Length
- 12 cm / 4,7 in
- Weight
- 8,5 kg / 18,7 lbs
- Family
- BALDOR - SERIE C
- Reference
- BSM90N-175AA
Refurbished
3008072679640
300270736624
As ABB's US Motors and Generators division, ABB Motors and Mechanical Inc. market, design, manufacture and supply services for industrial electric motors, generators and mechanical power transmission products. This company was previously known as Baldor Electric Company until its merger with ABB on March 1, 2018.
The US division, headquartered in Fort Smith, Arkansas, oversees 15 manufacturing sites in 8 states.
The company sells Baldor-Reliance and ABB industrial electric motors. The products are available in IEC and NEMA configurations and range from fraction to 100,000 horsepower.
The company also sells Dodge mechanical power transmission products, including mounted bearings, enclosed gears, couplings, sheaves and bushings.
