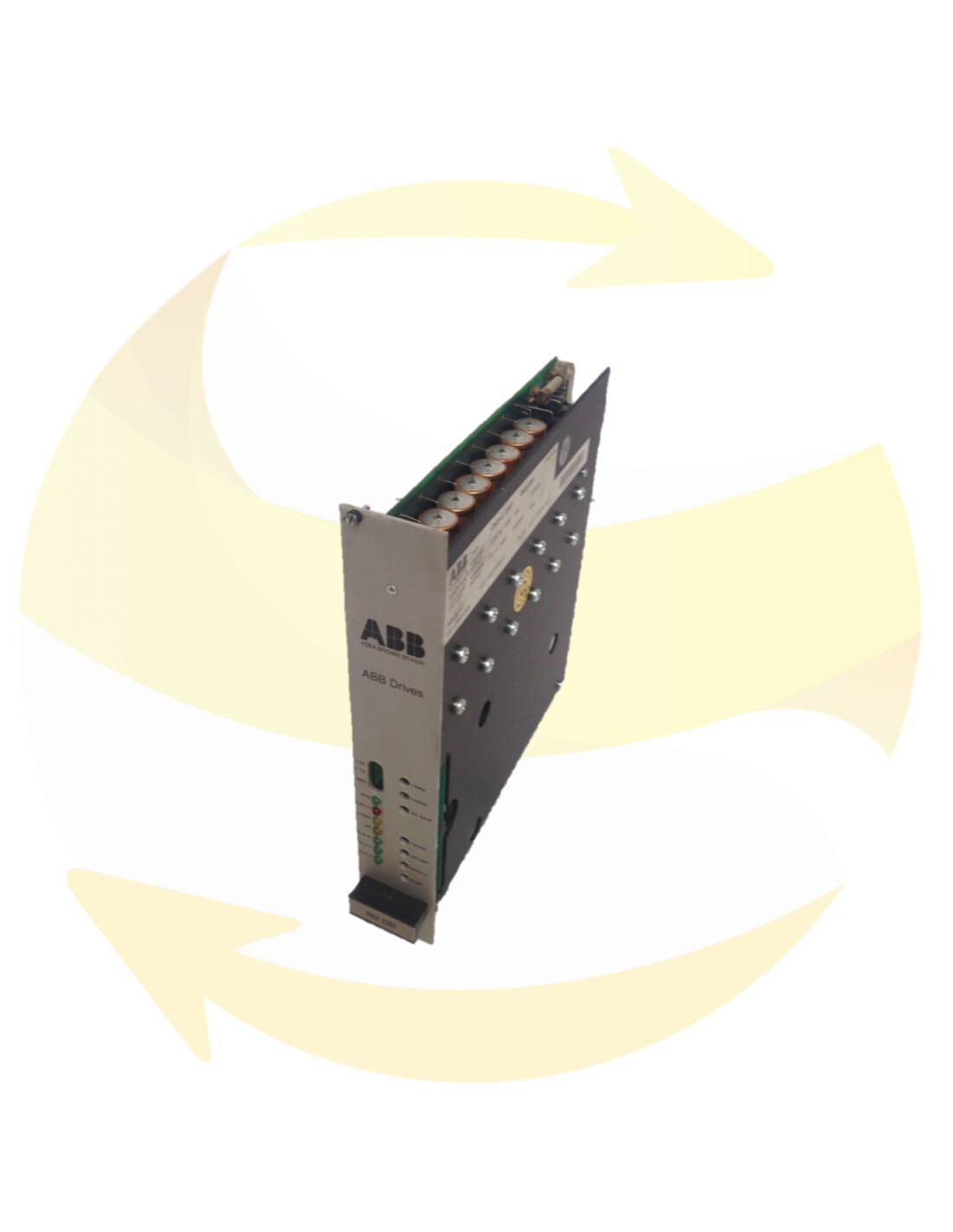

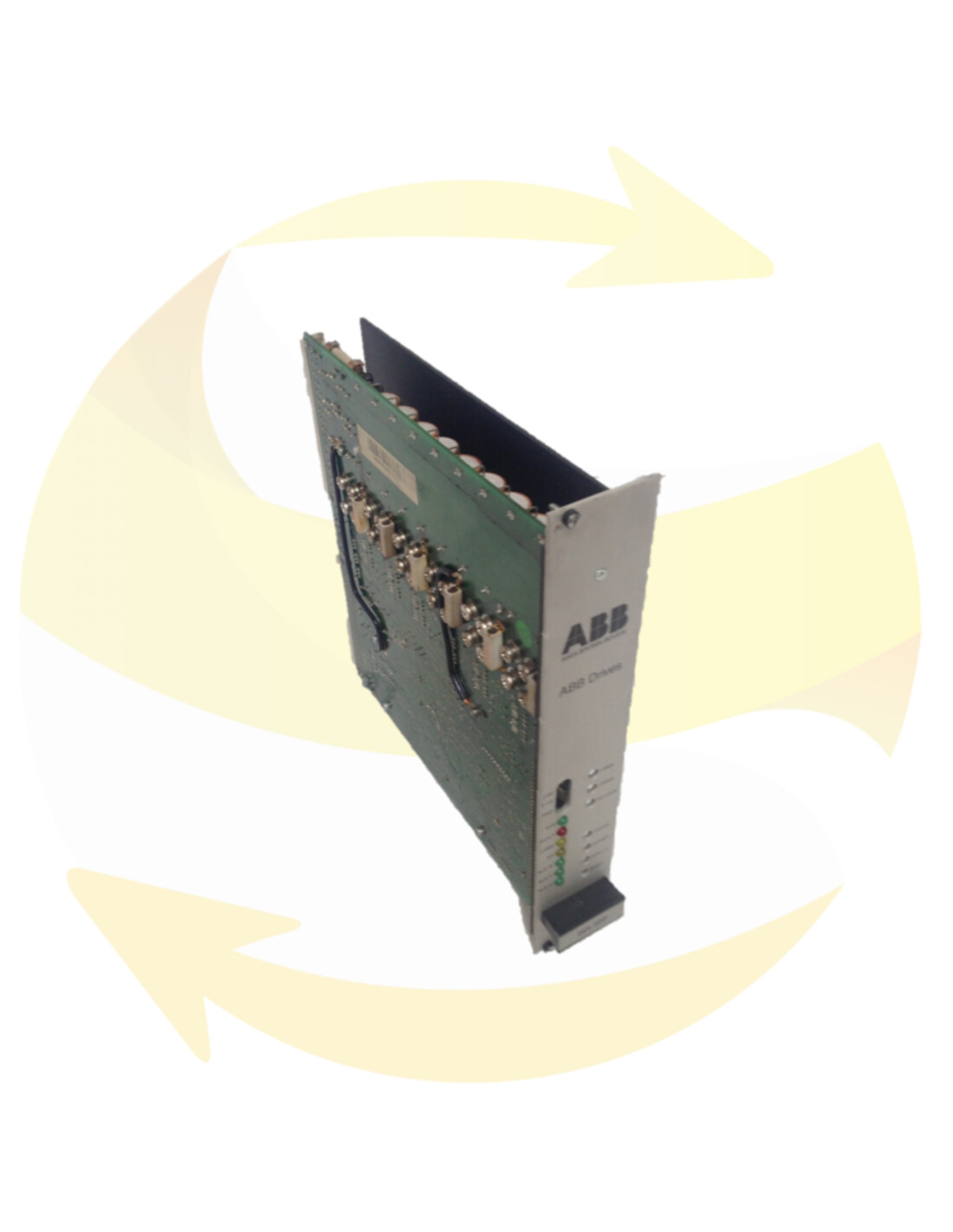

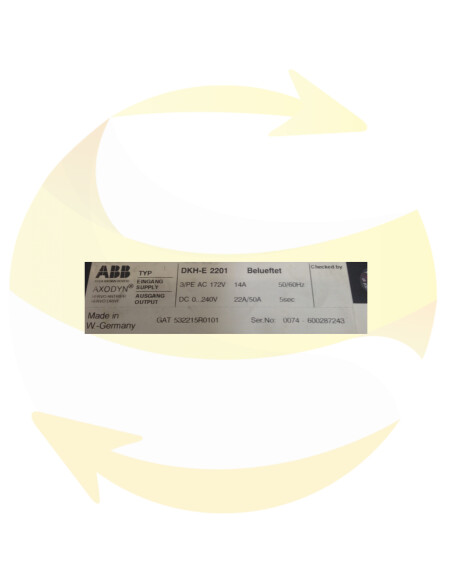

DKH-E 2201 - Speed regulator - ABB
This reference speed regulator DKH-E 2201 and ABB brand is a drive of the series: AXODYN.

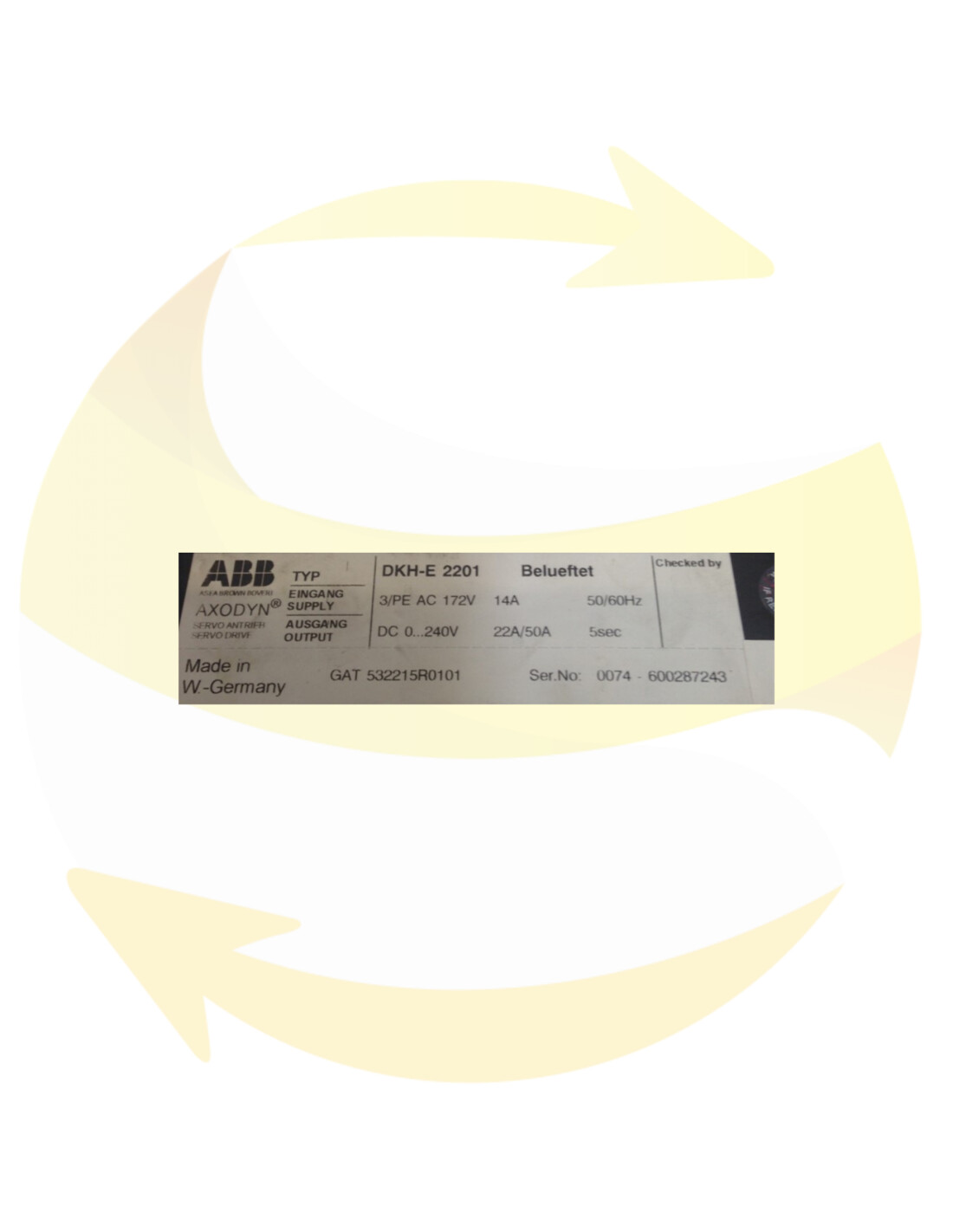

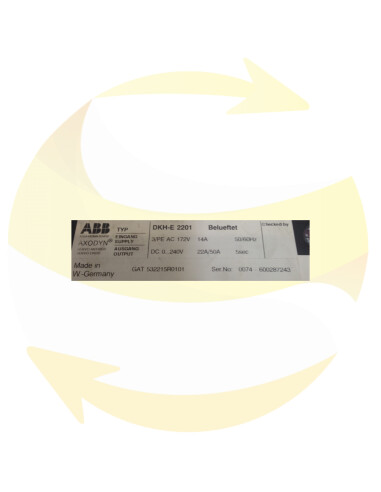

Speed regulator : 3PH, 172VAC, 14A, 50/60Hz, 0-240 VDC
This ABB DKH-E 2201 controller is at your disposal to replace your defective equipment and has a guarantee adapted to your needs.
To be used in brushless DC servo drive for 4 quadrant operation.
Compact design of the speed regulators, incorp state of the art components and SMD technology :
Power rectifier bridge
Smoothing capacitors
Transistor output stage (3ph)
Electronics supply
Monitoring devices
Control electronics
Ballast circuit (parallel connection possible)
Unit DKH-E 5001 with separate power supply unit DN-E 8001
Plug in motor PCB equipped wtih potentiometers accessible from the front (presetting possible to encuse easy and quick start up), as well as other components for drive optimization.
Protected against short circuits and earth faults at tke motor terminals

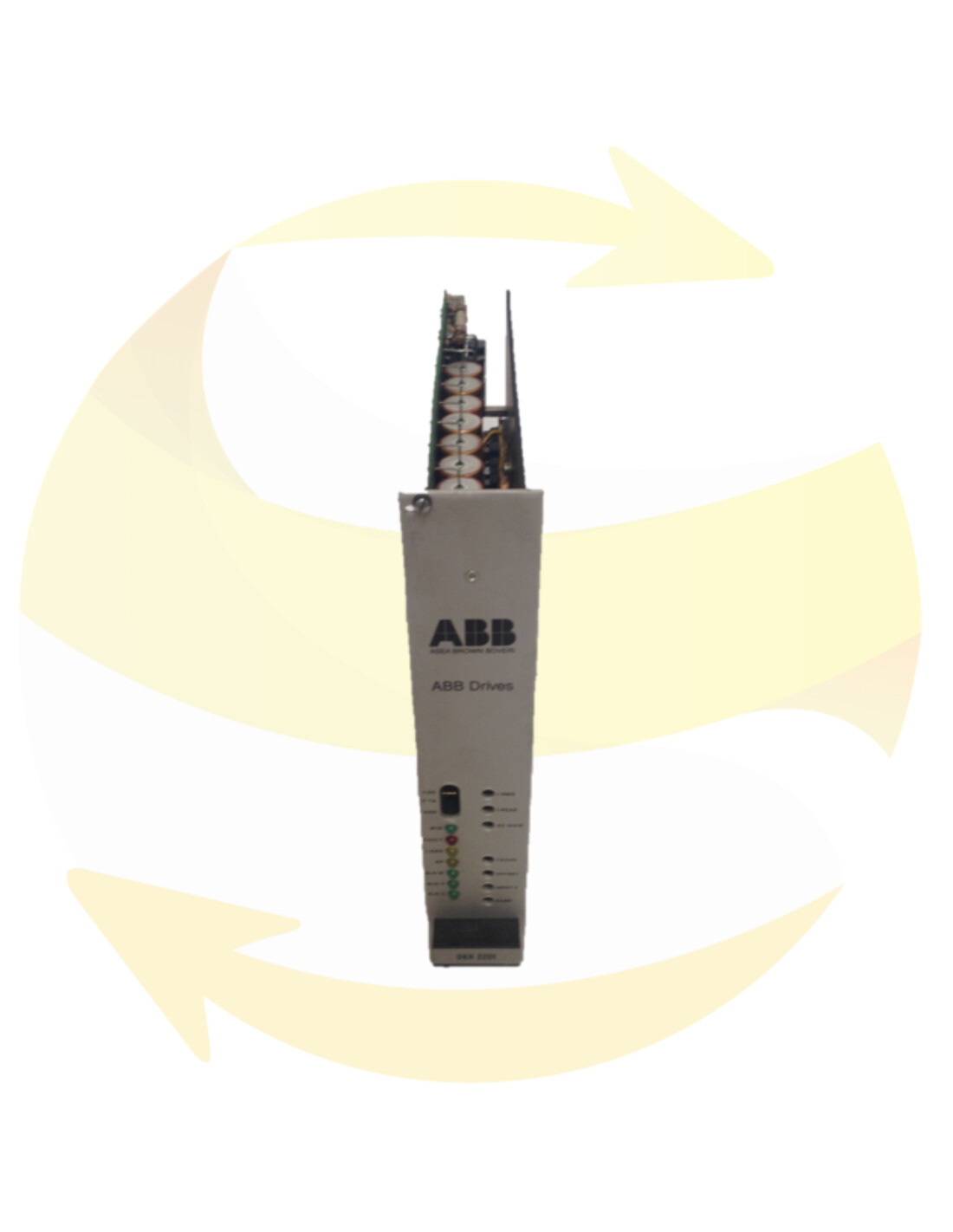

LED displays for monitoring and fault diagnosis :
Ready for operation (DC link voltage available)
Overcurrent / short circuit
Overvoltage / undervoltage
Overtemperature of heat sink
RMS value limitation
Rotor position measuring device
Ballast circuit
