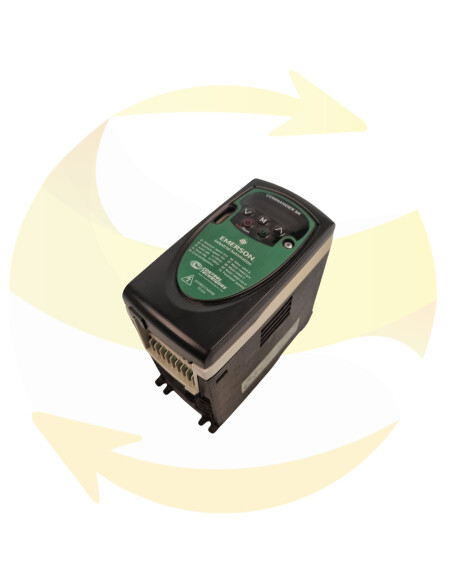

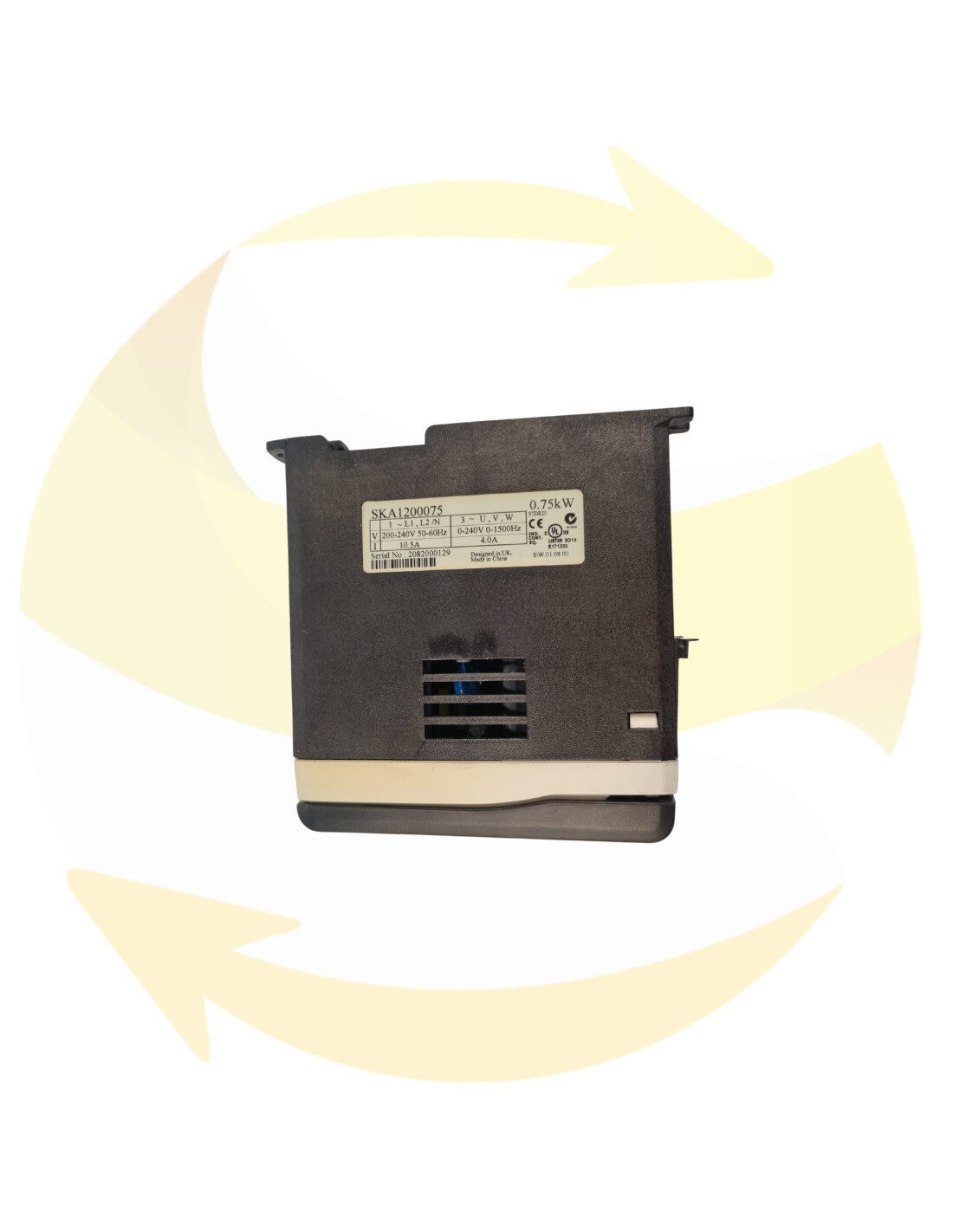

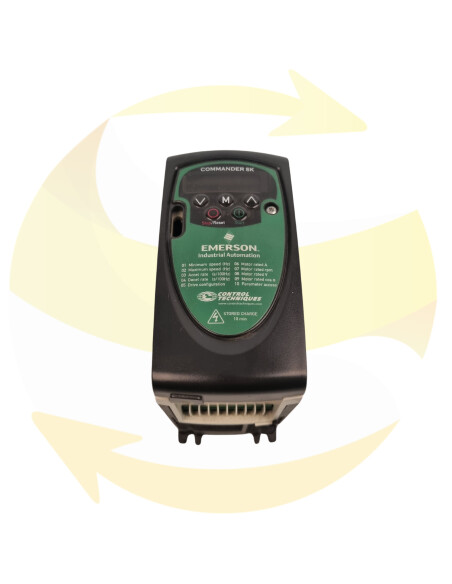

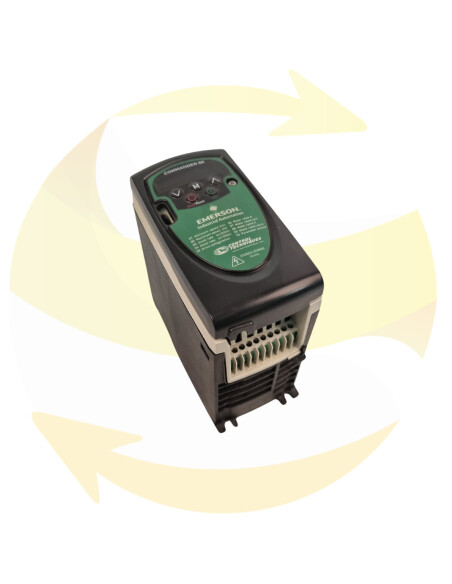

SKA1200075 - Variable speed drive - CONTROL TECHNIQUES

Control Techniques frequency inverter SKA1200075, Commander / Digidrive SK

The reference SKA1200075 belongs to the Commander / Digidrive SK series from Control Techniques, designed for the control of asynchronous motors in general industrial applications. This range meets the needs of maintenance teams and system integrators looking for a compact, reliable drive that is quick to configure to ensure production continuity. The SKA1200075 drives a motor of 0.75 kW (about 1 HP) and offers the essential control modes, V/f and open-loop vector, to achieve stable speed and torque regulation without unnecessary complexity. The drive handles acceleration, deceleration and direction of rotation, with integrated protections against overload, overcurrent, overvoltage and undervoltage faults. Designed for panel or chassis mounting, it is suitable for conveyors, pumps, fans and light automation systems where availability and operational simplicity are priorities. Thanks to a clear parameter interface and standard I/O logic, commissioning remains straightforward, with basic functions covering the majority of use cases while maintaining a compact installation footprint.

Technical specifications

• Référence constructeur : SKA1200075
• Gamme : Commander / Digidrive SK
• Constructeur : Control Techniques
• Type : Compact AC frequency drive for three-phase asynchronous motors
• Tension d’alimentation : single-phase or three-phase mains input depending on the variant, 50/60 Hz
• Puissance moteur associée : 0.75 kW, about 1 HP
• Tension de sortie : three-phase output, output frequency configurable for speed variation
• Mode de commande : V/f and open-loop vector
• Protections intégrées : overload, overcurrent, overvoltage, undervoltage, detectable short-circuit faults
• Refroidissement : fan speed-controlled on certain sizes of the range
• Montage : panel or chassis installation, standard I/O terminal block for local control

Overview of the Commander / Digidrive SK range

The Commander / Digidrive SK series groups compact AC drives focused on productivity. It covers a wide spectrum of general drive applications with a simple architecture, robust basic functions and clear parameters. The aim is to provide reliable speed control with a reduced mechanical footprint and predictable maintenance. Key features include V/f control, open-loop vector control, full ramp and direction management, and internal electrical protections suited to standard industrial conditions. Integration is eased by common logical and analog I/O terminals, allowing direct connection to a control panel, a PLC or a CNC for speed control.

• Commander / Digidrive SK : core range for asynchronous motors, frequency variation, fast deployment, essential control and protection functions
• Range extensions : options and accessories available by version for I/O, EMC filtering and integration interface to adapt the drive to the machine context

The SKA1200075 model naturally integrates into existing installations, both for retrofit and new-build situations, when speed stability, cycle repeatability and easy tuning are priorities. The range's parameter logic reduces downtime during maintenance while ensuring a smooth transition during preventive or corrective replacement.

Industrial applications

The SKA1200075 frequency inverter meets the needs of many drive functions in industry. Its scope covers light automation and control of non-synchronized axes, with asynchronous motor control focused on energy efficiency and operational reliability.

• Continuous conveying and handling : speed adjustment of rollers and belts to pace flows and stabilize the process
• Pumps and ventilation : flow and pressure adjustment via V/f, optimizing energy consumption
• Packaging : driving auxiliary axes, stable throughput, soft starts to protect mechanisms
• Light automation : simple motor drives controlled from a PLC or operator panel
• General processes : mixing, agitation, auxiliary drives where a variable speed range improves production quality

Integration and communication

Integration of the SKA1200075 is done via standard logical and analog I/O, allowing control by PLCs, CNCs or external regulators. The range accepts a single-phase or three-phase mains supply depending on the version, at 50/60 Hz, and delivers a three-phase variable-frequency output. V/f control is suited to variable-torque loads, while open-loop vector control provides more precise speed holding under load. Internal protections limit common electrical faults and protect both motor and drive.

Depending on the equipment associated with the machine, range modules and accessories can be used for EMC filtering, I/O adaptation or integration into an automation architecture. This modular approach facilitates connection to existing systems, whether a simple control loop, speed setpoint control via an analog signal, or sequencing under the authority of a PLC. In multi-vendor environments, the SK series parameter philosophy is valued for its intuitive layout and reproducibility of settings during a quick replacement.

Availability and warranty

Standard Exchange Industry offers the SKA1200075 refurbished, as an exchange unit or repaired, each unit being bench-tested. Shipping is ensured within 24 to 72 hours to over 120 countries. Our technical teams assist you to validate the compatibility of the reference with your motor and installation, and to prepare a safe transition in case of obsolescence or failure of an existing drive. Depending on the chosen service, a warranty of 6 to 24 months covers the intervention. To secure a production line, choosing a frequency drive from the Commander / Digidrive SK range is a proven solution focused on maintenance and operational continuity. Contact us to qualify the reference, schedule shipment and minimize your equipment downtime.
