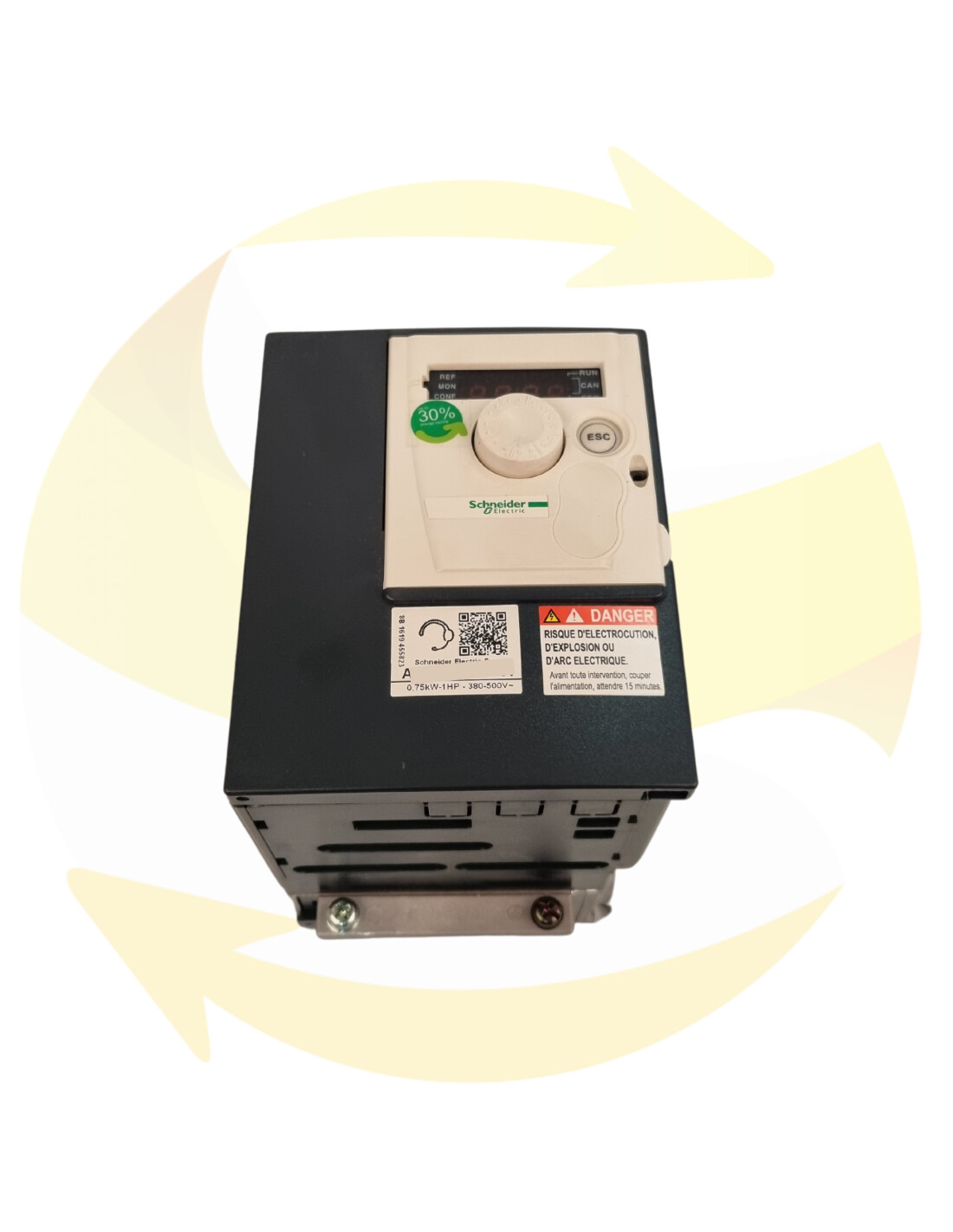

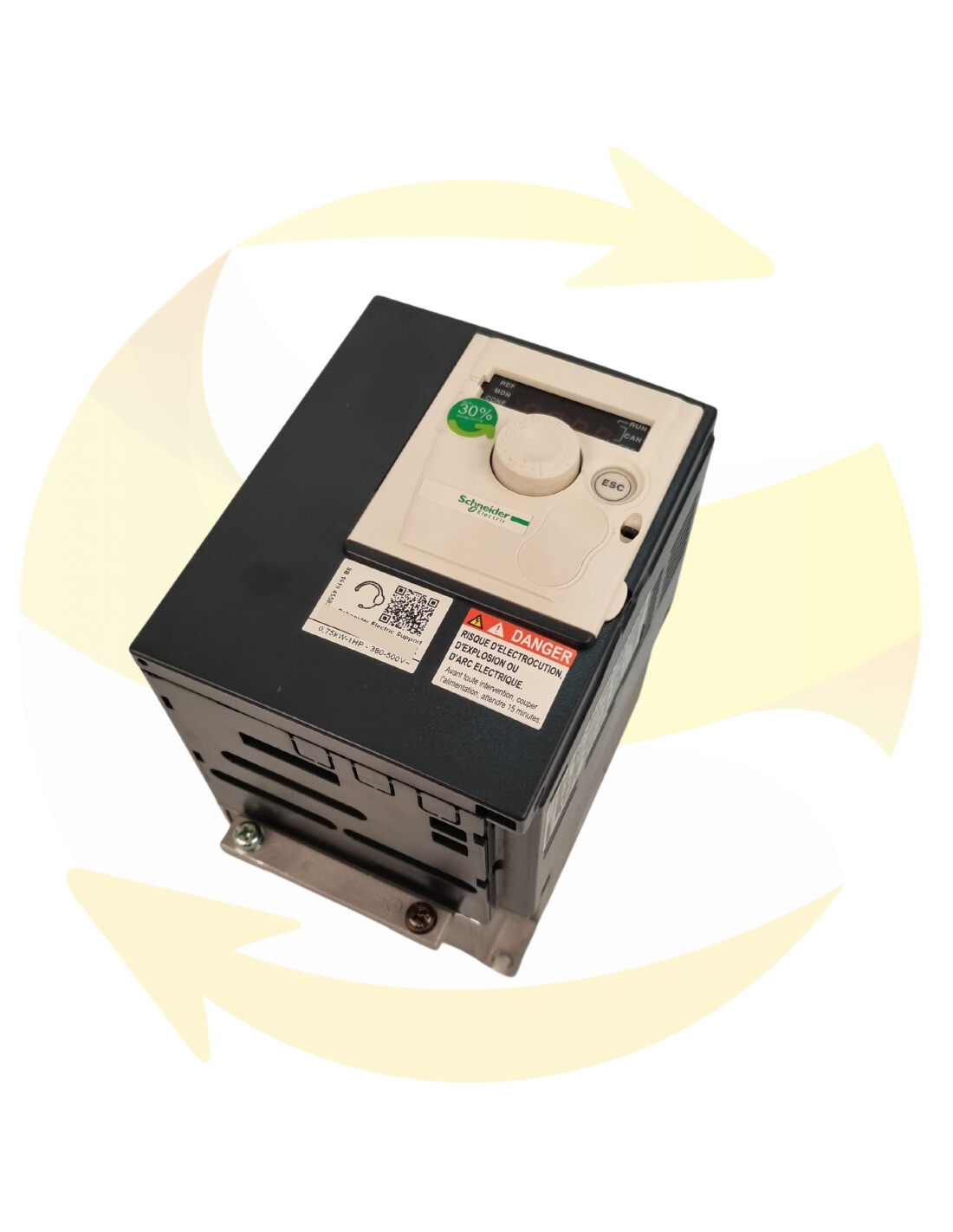

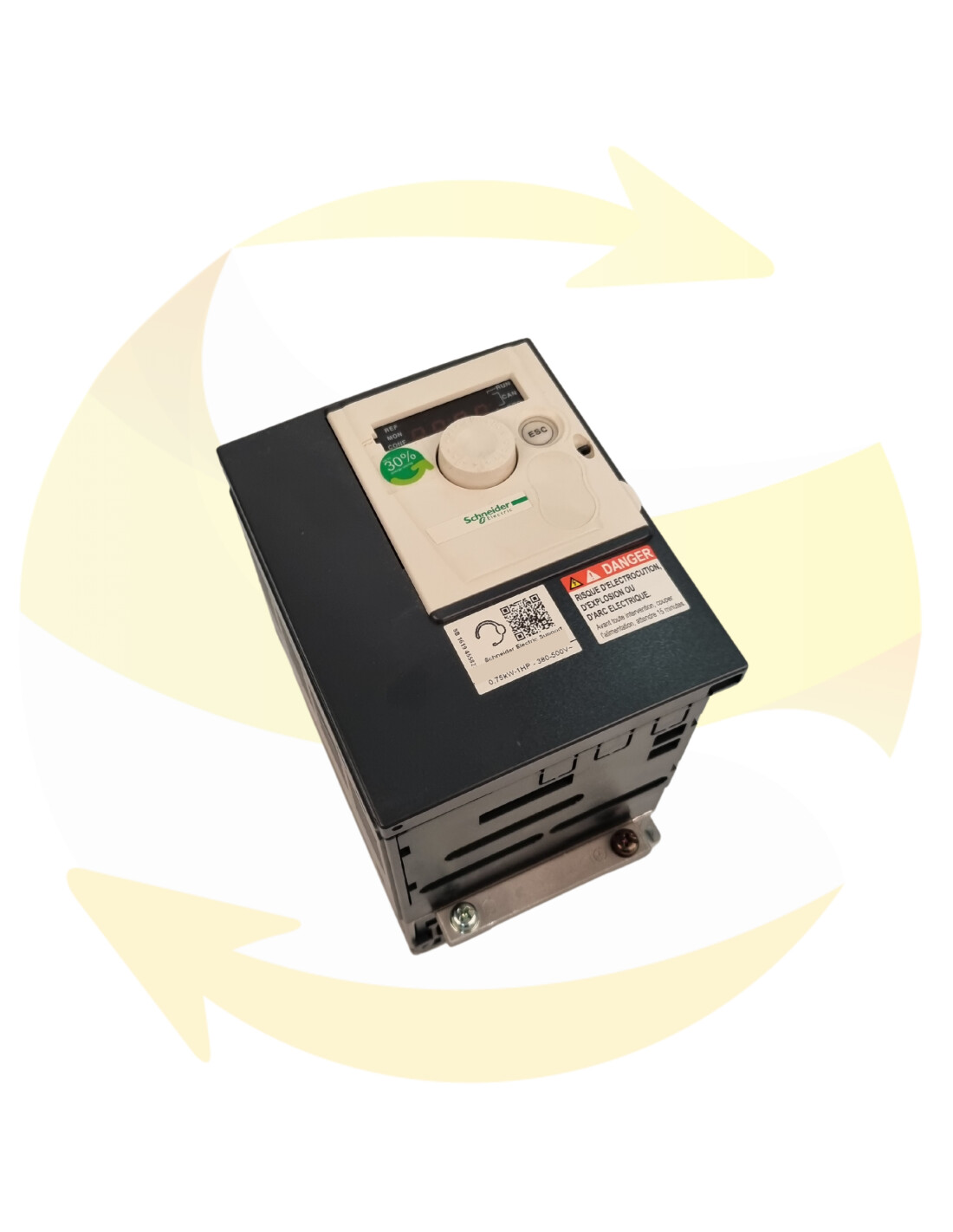

ATV312HU22M3

This ATV312HU22M3 and SCHNEIDER TELEMECANIQUE reference speed controller is a variable speed drive for asynchronous motors. ALTIVAR 312 series.

Speed drive : 2.2kW - 5.2kVA - 114W - 200.240V three phase input

This ALTIVAR (Schneider Electric) is at your disposal to replace your defective equipment and has a guarantee adapted to your needs.

In stock, ready to ship.
State
  • Refurbished Supply
Warranty
€360.00
VAT excluded

System options

Exchange service with a refurbished unit

Standard Exchange Service

Reconditioned and tested systems

From 6 to 12
month warranty

Exchange service with a new unit

Standard Exchange Service

New systems

From 12 to 24
month warranty

Supply of a refurbished unit

Supply Service

Reconditioned and tested systems

From 6 to 12
month warranty

Supply of a new unit

Supply Service

New systems

From 12 to 24
month warranty

For parts only

Supply Service

Sold for parts – no warranty

Repair

Repair service

Repair will be made to damaged and defectiv units

From 3 to 18
month warranty

Livraison rapide

Fast
delivery

Livraison rapide

guaranteed
products

Livraison rapide

Secure
payment



The ALTIVAR 312 family of adjustable frequency drives is used for the control of three-phase asynchronous motors. Their power varies from:
• 0.37 to 2.2 kW (0.5 to 3 HP) 240 V, single phase input.
• 3 to 7.5 kW (5 to 10 HP) 230 V, three-phase input.
• 0.75 to 15 kW (1 to 20 HP) 460/480 V, three-phase input.
These guidelines cover the technical characteristics, specifications, installation and wiring of all ALTIVAR 31 variable speed drives.

The Altivar 31 is preset at the factory for the most common conditions of use:

- Display: drive ready (stopped), motor frequency (running).
- Network: 50 Hz.
- Motor voltage: 230 V or 400 V, depending on model.
- Ramps: 3 seconds.
- Low speed: 0 Hz
- High speed: 50 Hz.
- Loop frequency gain: standard.
- Motor thermal current = nominal drive current.
- Injection braking current at standstill = 0.7 x drive rated current, for 0.5 seconds.
- Constant torque operation, with vector control of flux without sensor.
- Automatic adaptation of the deceleration ramp in the event of brake overvoltage.
- 4 kHz switching frequency.
- Logic inputs: LI1, LI2: 2 direction of operation, 2-wire control. LI3, LI4: 4 preset speeds (0Hz, 10Hz, 15Hz, 50Hz).
- Analog inputs: AI1 (0 + 10 V): speed reference, AI2 (0 + 10 V) or AIC (0, 20 mA): summing of AI1.
- Relay R2: speed setpoint reached.
- Analog output AO (0 - 20 mA): motor frequency.

Height
14,3 cm / 5,63 in
Width
10,7 cm / 4,21 in
Length
15,2 cm / 5,98 in
Weight
1,35 kg / 2,98 lbs
Family
ALTIVAR 312
Reference
ATV312HU22M3
Refurbished
3008581667084
300323493115

Since its creation, the Telemecanique brand has been pursuing an innovation policy, which has become one of the world’s first references in automatism management.

The story of Telemécanique is read through that of its inventions, initiated with the launch of the first contactor on bars. A patent filed the same year of its acquisition, in 1924! It will develop contactors D became world reference. The 1980s marked the acquisition of Telemechanics by Schneider Electric (1988).
