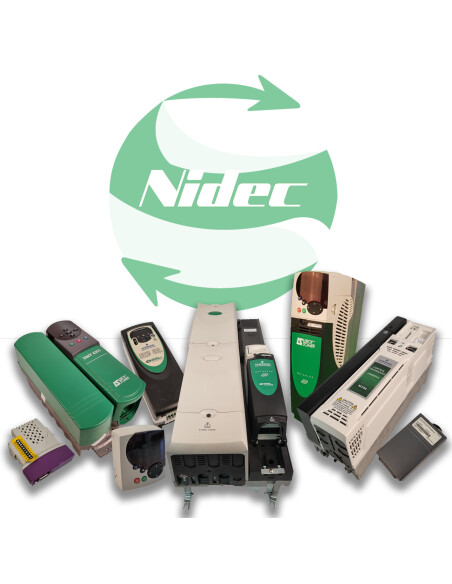

FMV 2107 2.5M - DIN1220150B - Frequency modulator - LEROY SOMER
FMV 2107 2.5M - DIN1220150B
This frequency modulator for asynchronous motor reference FMV 2107 2.5M - DIN1220150B and brand Leroy Somer is a variator from the DINVERTER range.
Specifications: 1x200-240V, 1.5kW, 7A
This Leroy Somer modulator is at your disposal to replace your defective equipment and has a suitable guarantee.
Standard Exchange Service
Reconditioned and tested systems
From 6 to 12
month warranty
Standard Exchange Service
New systems
From 12 to 24
month warranty
Supply Service
Reconditioned and tested systems
From 6 to 12
month warranty
Supply Service
New systems
From 12 to 24
month warranty
Supply Service
Sold for parts – no warranty
Repair service
Repair will be made to damaged and defectiv units
From 3 to 18
month warranty
Fast
delivery
guaranteed
products
Secure
payment
Functional description of the modulator
The modulator consists of:
• A network voltage rectifier, followed by a filter capacitor giving a fixed direct voltage which depends on the network voltage.
• An inverter: this direct voltage powers the 6-transistor inverter (IGBT). The inverter converts direct voltage into voltage and frequency modulated alternating voltage.
• Three internal current measurements for the DC bus, the inverter output and the braking transistor.
• An electronic control card. comprising: the microprocessor, the PWM generator ASIC circuit (PWM) and the power control signal amplification circuits.
• An operator panel allowing configuration, reading information and controlling the modulator.
FMV 2107: general-purpose frequency modulator and 200V/240V single-phase power supply.
FMV 2307: general purpose frequency modulator and three-phase power supply
1.5 = Rating in kVA. M = Single-phase power supply. TL = 200V/240V three-phase power supply. T = 380V/480V three-phase power supply.
This name is reproduced on the nameplate.
Frequency resolution
- Reference via serial link: 0.001 Hz.
- Numerical reference * < 100: 0.1 Hz.
- Digital reference * ≥ 100: 1 Hz.
- 10-bit resolution - 8-bit precision.
Braking
Hypersynchronous braking:
- modulator alone,
- with options R - FMV.
Braking by direct current injection.
Frequency reference
Analog reference:
- in voltage: 0 to +10V or ±10V (input impedance 110 kΩ),
- current: 4 to 20mA, 20 to 4mA, 0 to 20mA (impedance 100Ω).
Numerical reference:
- by preset speed,
- by command from the operator panel,
- by serial link.
- Height
- 20 cm / 7.8 in
- Width
- 9 cm / 3,5 in
- Length
- 29 cm / 11,4 in
- Weight
- 3 kg / 6,6 lbs
- Family
- FMV 2107 / 2307
- Reference
- FMV 2107 2.5M - DIN1220150B
LEROY SOMER, leader and global specialist in industrial alternators and drive systems, designs and industrializes the most innovative eco-technology solutions to serve the industrial and tertiary markets.
Founded in 1919 by Marcellin Leroy
International company headquartered in Angoulême in Charente (France), worldwide specialist in alternators and electromechanical and electronic drive systems. Subsidiary of the American group Emerson since 1990.
In 2017, Nidec Cormoration took effective control of Leroy Somer.
