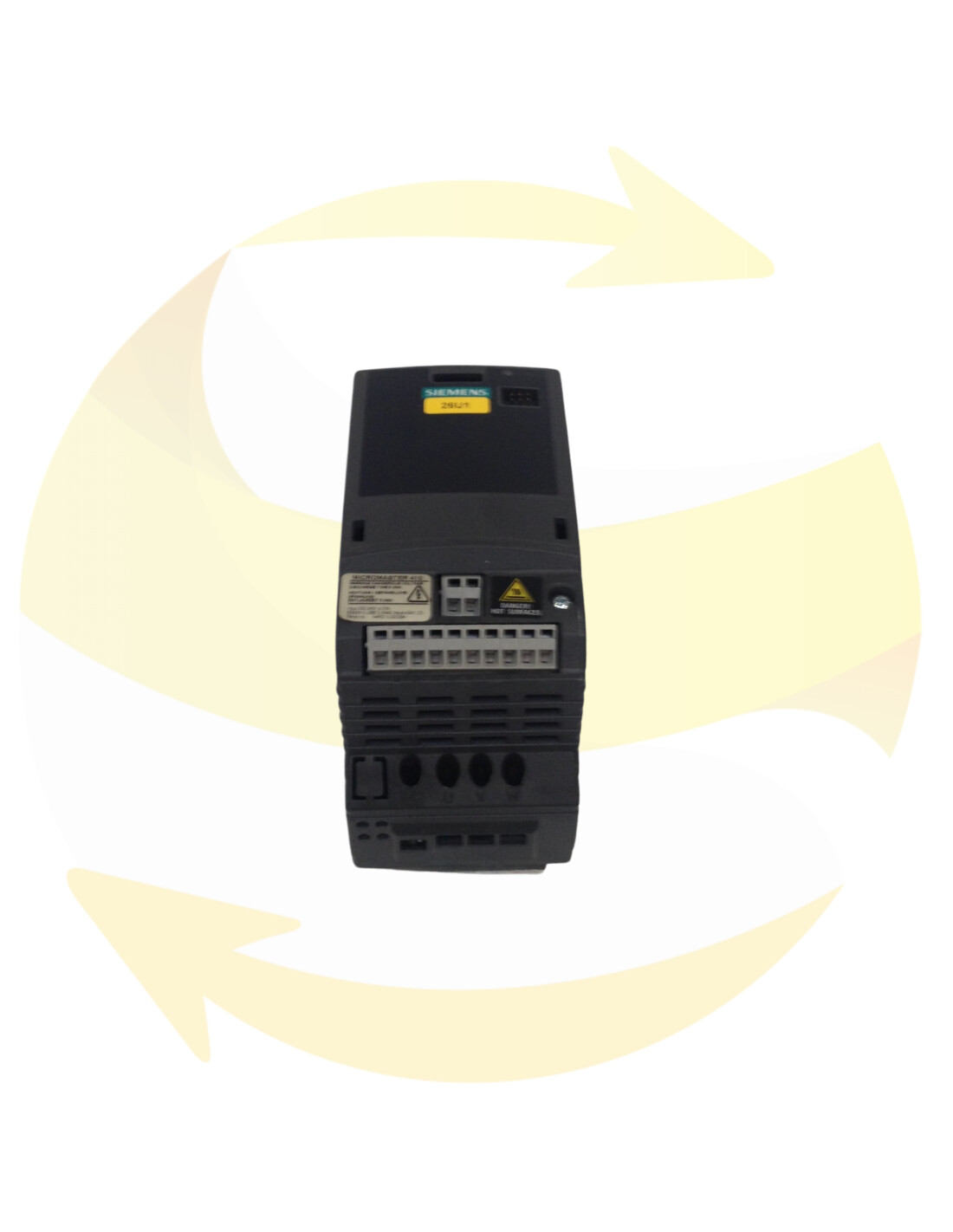

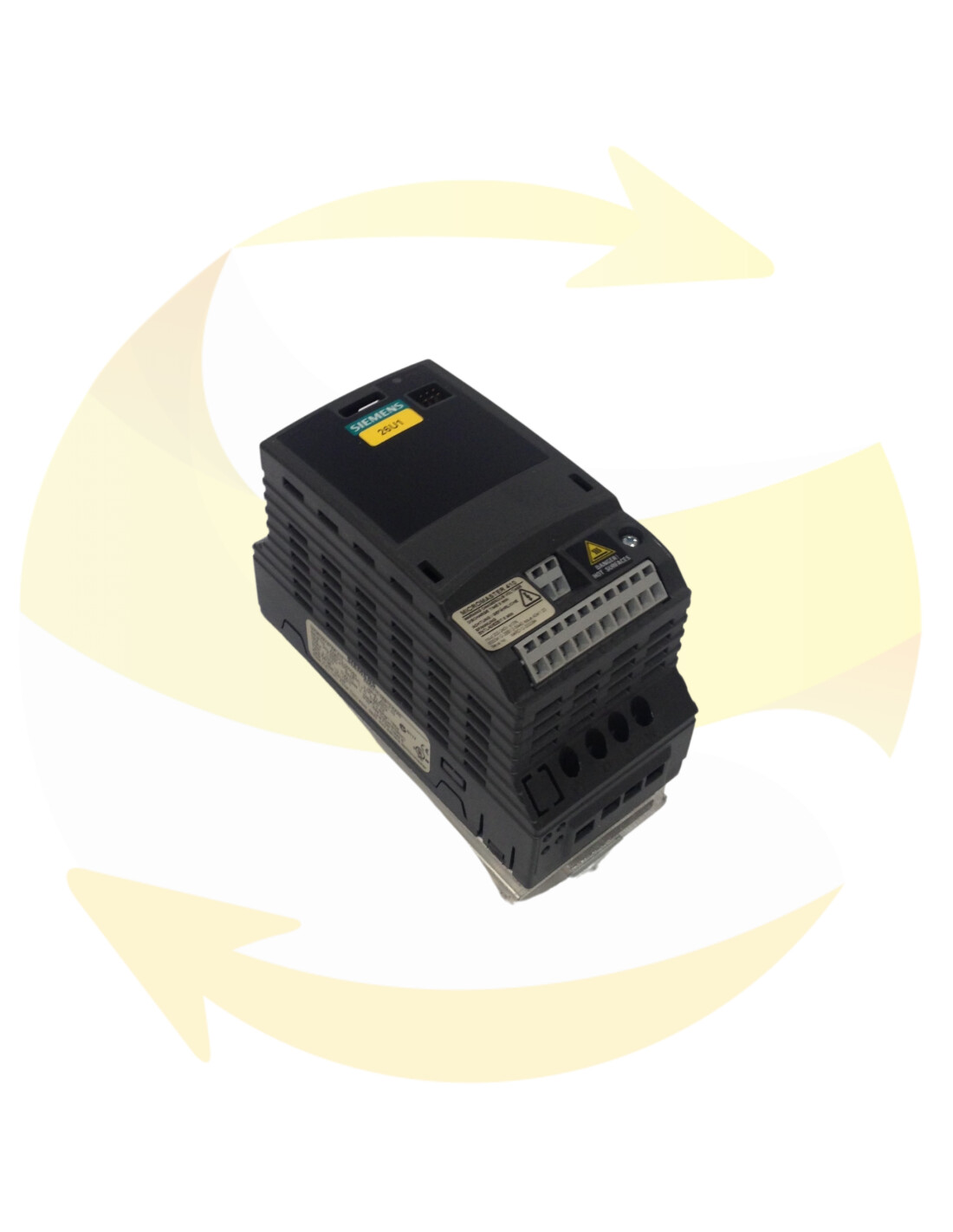

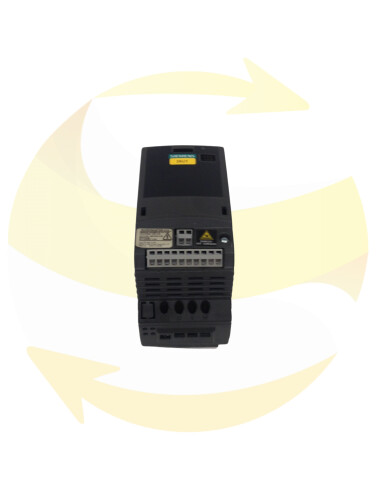

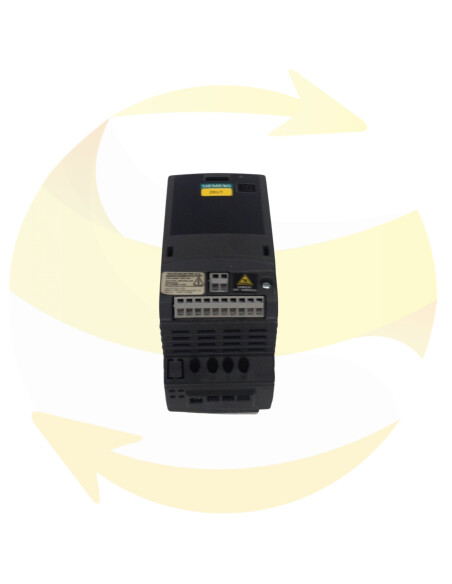

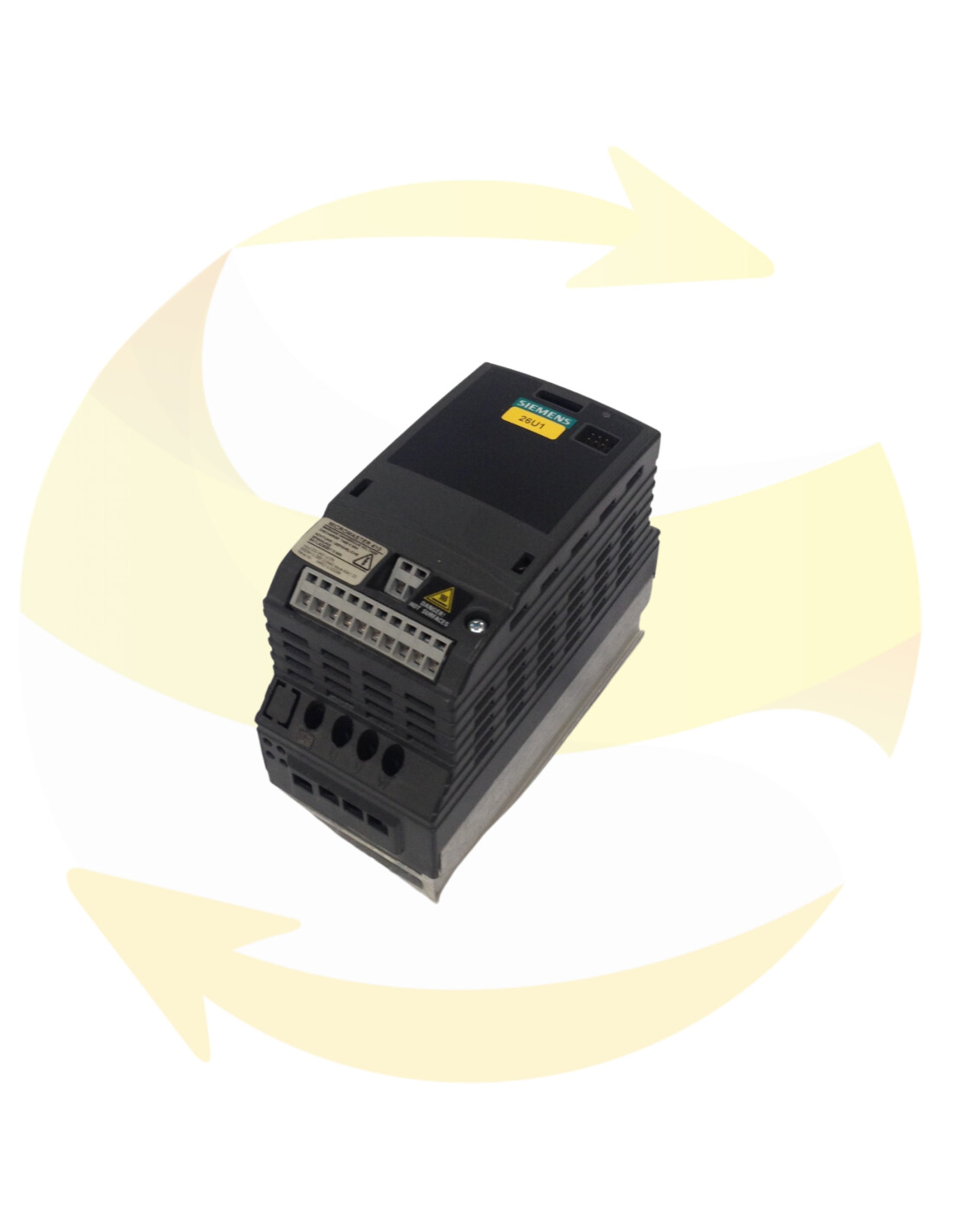

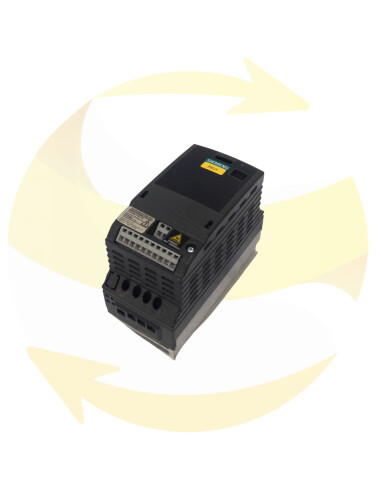

6SE6410-2BB15-5BA0 - Inverter - SIEMENS
This reference inverter 6SE6410-2BB15-5BA0 and brand SIEMENS is a drive of the MICROMASTER 410 range.
SIEMENS MICROMASTER 410 200-240V 0.55KW WITH INTERNAL CLASS B FILTER
This SIEMENS drive is at your disposal to replace your defective equipment and has a guarantee adapted to your needs.
The MICROMASTER 410 inverter is suitable of variable-speed drive applications.
It is especially suitable for use with pumps and fans, as a drive in various sectors, e.g. food, textile and packaging in- dustries as well as for conveyor systems, factory gate and garage door drives and as a universal drive for moving bill- boards.
It is the ideal low cost frequency inverter solution for the low end performance range of the MICROMASTER product family.
The inverter is especially characterized by its customer oriented performance and ease of use.
Versions for connecting to 230 V and 115 V single-phase networks enable it to be used all over the world.
The MICROMASTER 410 inverter has a compact design.
Heatsinks provide natural cooling for the inverter. A fan unit is not used.
The position of the connections has been selected as for conventional contactors.
The operator panel available as an option can be easily fitted without requiring any tools.
The design with flat plate heat sink offers space-saving and favorable heat dissipation since an additional heatsink can be installed outside the control cabinet.
■ Simple selection from minimum range of types (only a few options)
■ Compact design
■ Natural cooling with heat sinks (no fan unit)
■ Simple connection similar to conventional switching elements (e.g. contactors)
■ Versions with internal EMC filter Class B
■ Fast, simple commissioning with input of only a few parameters (fast commis- sioning mode)
■ Integrated RS-485 communications interface
■ Three programmable digi- tal inputs, non-floating (the analog input can be used as a fourth binary input)
■ One analog input (0 V to 10 V)
■ One programmable relay output
(30 V DC/5 A resistive load; 250 V AC/2A inductive load)
■ Low-noise motor operation resulting from high pulse frequency
■ Integrated protection for motor and inverter.
