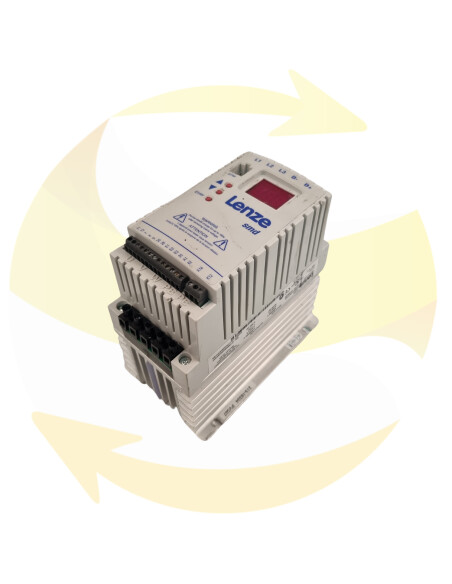

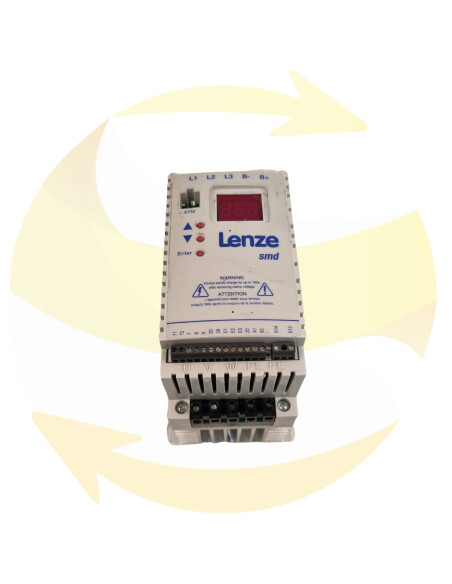

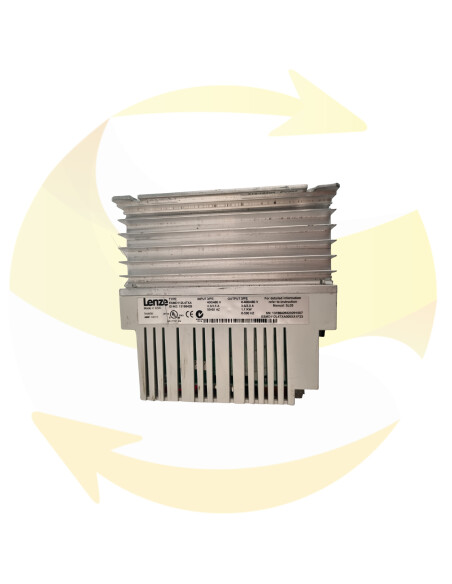

ESMD112L4TXA - Frequency converter - LENZE
This frequency converter reference ESMD112L4TXA and brand LENZE is a drive from the SMD range.
Frequency converter: 3x400/480V, 4.3/3.6A, 1.1kW
This LENZE ESMD112L4TXA drive is at your disposal to replace your defective equipment and has a guarantee adapted to your needs.
smd – for simple applications
Do you use digital and analogue inputs, preset speeds or adisplay with keypad for your applications? Is space in your control cabinet tight and is your budget tight too? The smd frequency inverter is a zero-compromise solution. The smd covers a power range of 0.25... 22 kW and handles everything you could possibly need of a universal use frequency inverter today. A large range of applications can be easily solved using clear functions.
All you need is three on-board operator buttons and a handful of parameters – commissioning is child's play. The parameter setting can be saved on one single chip. The Electronic Programmable Module (EPM) is a pluggable memory chip designed especially for the smd. The EPM allows you to transfer stable set drive data to other frequency inverters in the series as often as you want. Modified drive parameters are also handled in a matter of seconds by simply replacing the EPM on the front of the frequency inverter.
Programming is undertaken on the inverter itself or via a battery operated EPM (Electronic Programmable Module) programming unit. Configurations can then be conveniently produced or edited offline. The device saves up to 30 different drive programs as a file. You can copy from EPM to EPM, file to EPM or write the EPM back to a file in a couple of seconds at the push of a button.
The frequency inverter has integrated motor overload protection. To achieve this a microprocessor calculates the motor load regardless of output speed, protects themotor andmakes additional hardware superfluous.
The function and number of control terminals corresponds to the usual Lenze standard:
-start-stop function
- analogue setpoint selection with voltage or current freely
- programmable inputs
- freely programmable relay output
The smd has a current limitation with reduced frequency for operation, a clearly legible LED display and scope for low-noise operation thanks to an adjustable switching frequency of up to 10kHz.
Lenze specializes in automation and drive technologies and is established in more than 60 countries. They develop, manufacture and sell innovative products, global solutions and complete systems.
