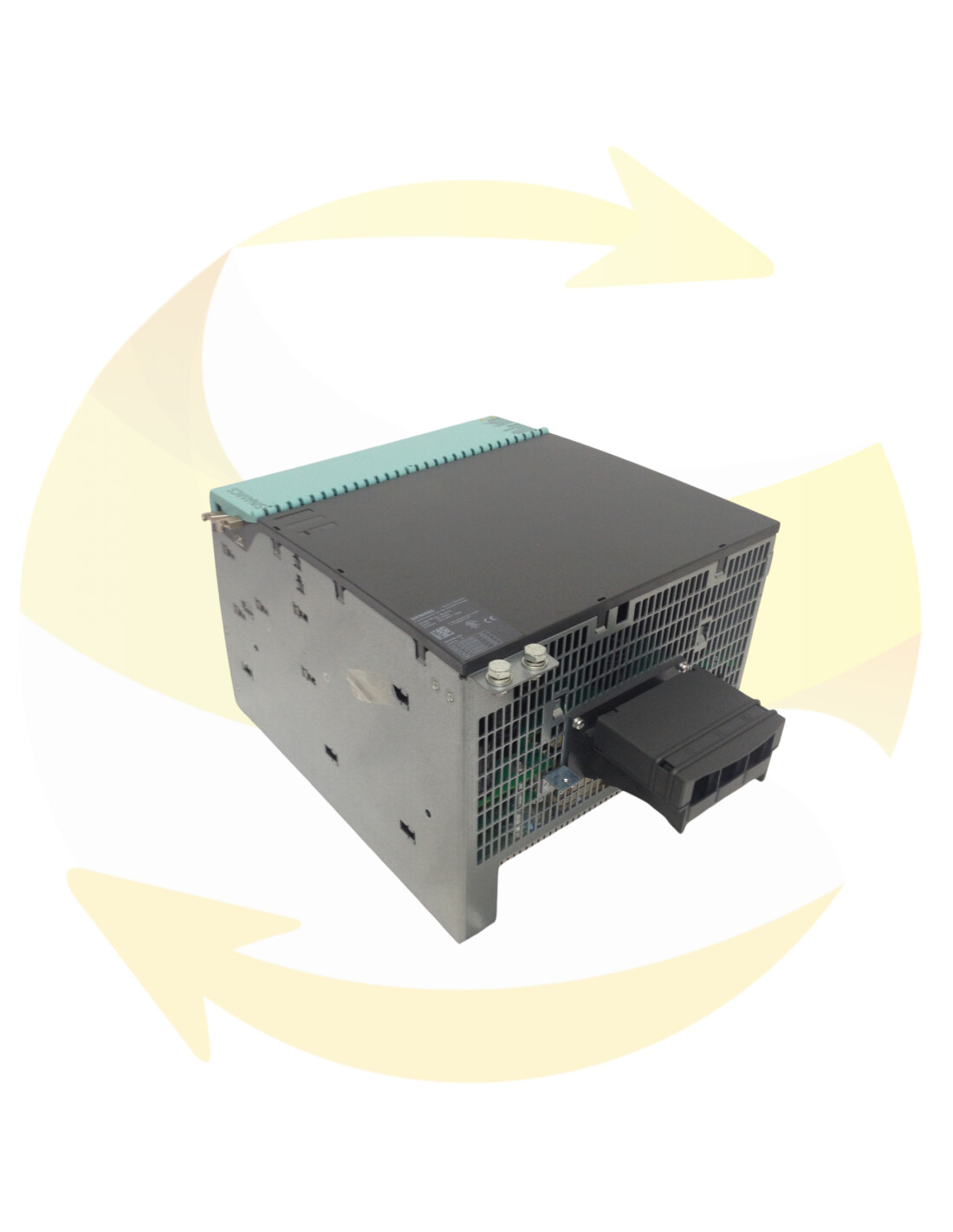

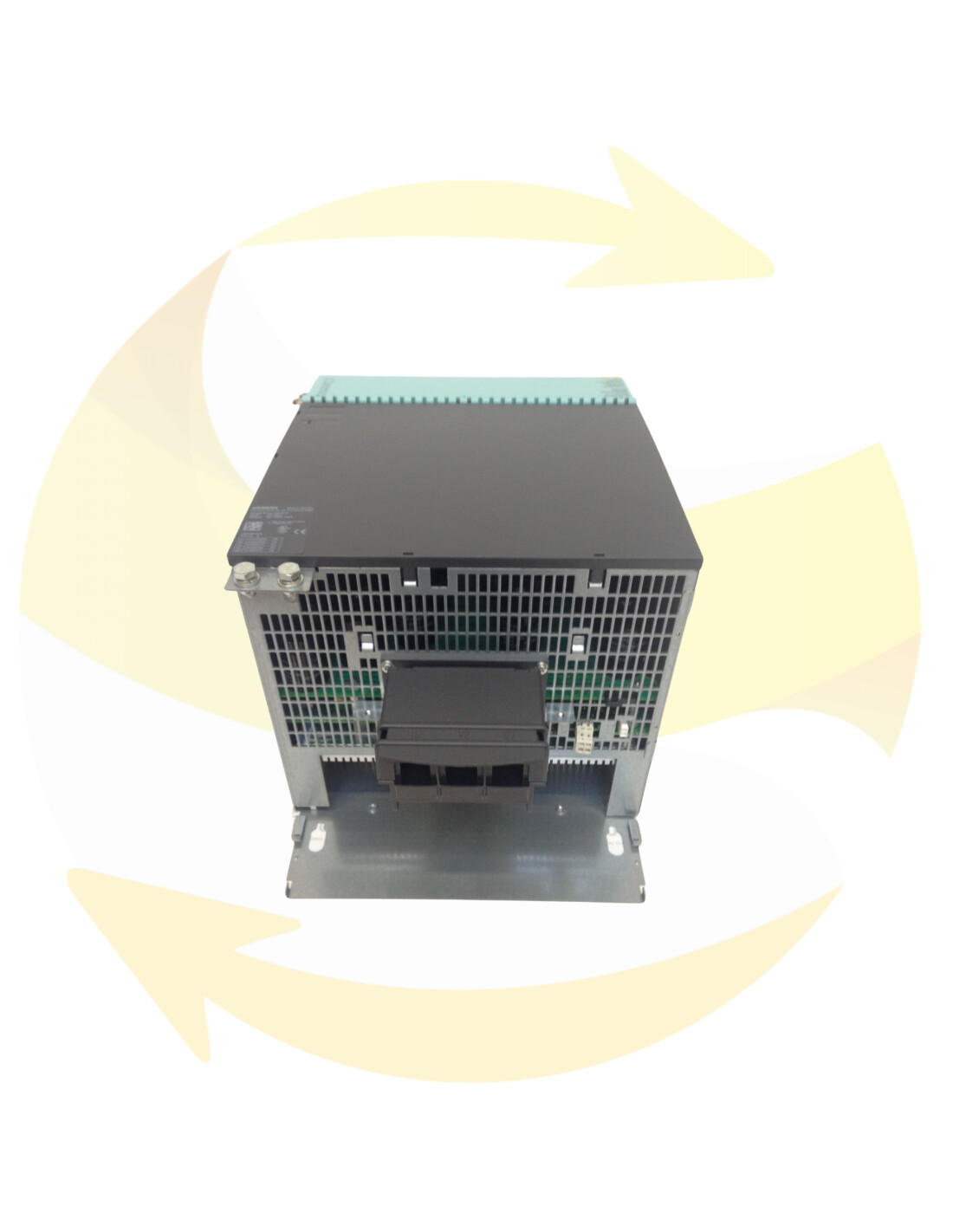

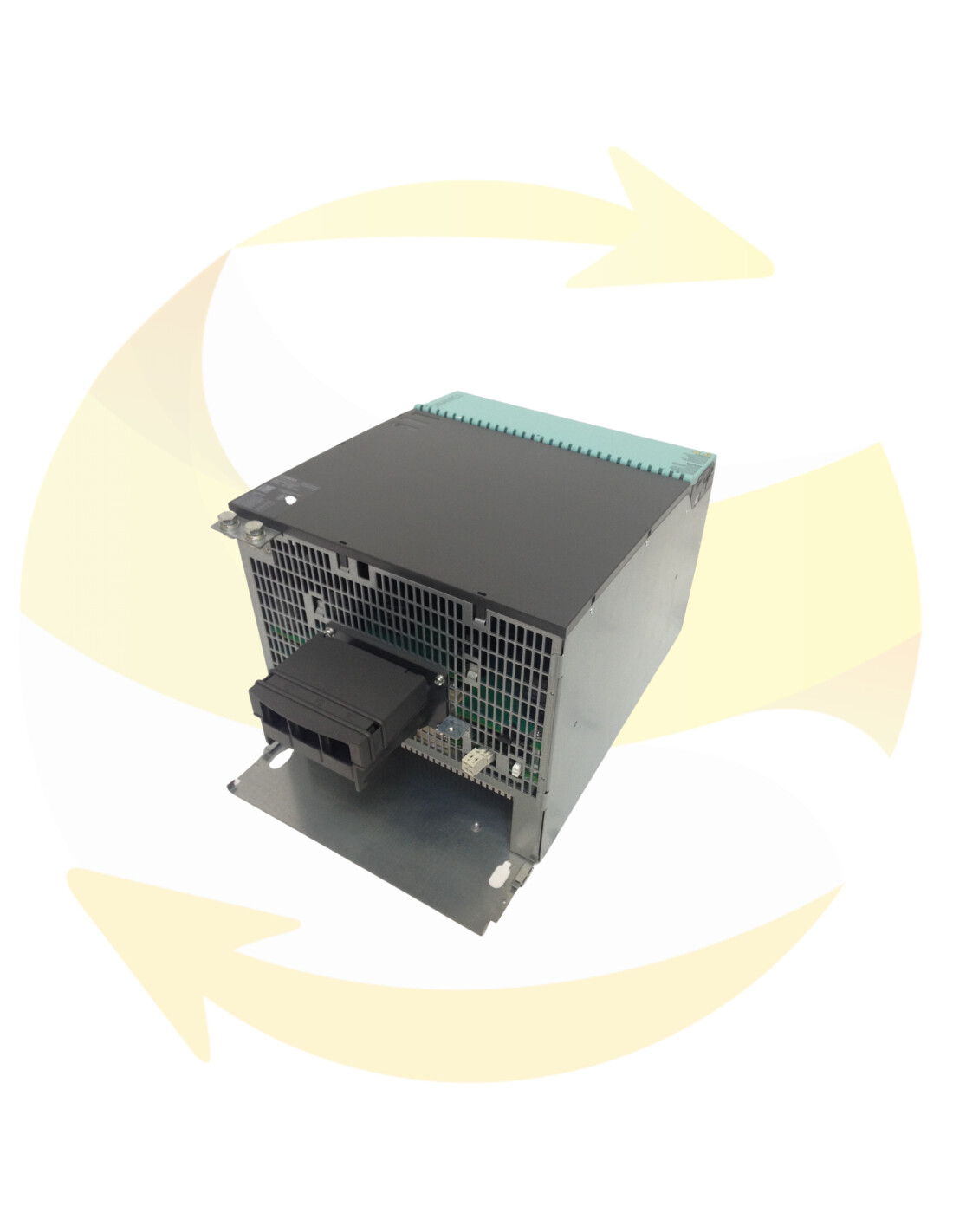

6SL3120-1TE31-3AA0 - Motor Module - SIEMENS
This drive 6SL3120-1TE31-3AA0 and brand SIEMENS is a drive of 71 kW. This drive belongs to the SINAMICS S120 range.
SINAMICS S120 MODULE SINGLE MOTOR SET: OUTPUT DC 600V: 3AC 400V, 132A FRAME SIZE: BOOKSIZE INTERNAL AIR COOLING
This Siemens 6SL3120-1TE31-3AA0 drive is available to replace your defective equipment and have a warranty.
The Single Motor Modules in booksize format feature the following connections and interfaces as standard:
• 2 DC link connections via integrated DC link busbars
• 1 electronics power supply connection via
integrated 24 V DC busbars
• 3 DRIVE-CLiQ sockets
• 1 motor connection, plug-in (not included in scope of supply)
or screw-stud depending on rated output current
• 1 safe standstill input (enable pulses)
• 1 safe motor brake control
• 1 temperature sensor input (KTY84-130 or PTC)
• 2 PE (protective earth) connections
The status of the Motor Modules is indicated via two multi-color LEDs.
The motor cable shield is inside the connector on 50 mm (1.97 in) and 100 mm (3.94 in) wide Motor Modules. A shield connection plate can be supplied for 150 mm (5.91 in), 200 mm (7.87 in) and 300 mm (11.8 in) wide Motor Modules. On these modules, the
motor cable shield can be connected using a tube clip.
The signal cable shield can be connected to the Motor Module by means of a shield connection terminal, e.g. Weidmüller type KLBÜ 3-8 SC.
The scope of supply of the Motor Modules includes:
• DRIVE-CLiQ cable appropriate to the width of the Motor Module for connection to the adjacent Motor Module, length = width of Motor Module + 0.06 m (2.4 in)
• Jumper for connecting the 24 V DC busbar to the adjacent Motor Module
• Connector X21
• Connector X11 for the motor brake connection (for Motor Modules with a rated output current of 45 A to 200 A)
• 2 blanking plugs for sealing unused DRIVE-CLiQ sockets
• Fan insert for the 132 A and 200 A Motor Modules
(the voltage for the fan insert is supplied by the Motor Module)
• 1 set of warning signs in 30 languages
• 1 heat conducting foil (for Motor Modules with cold plate cooling only)
