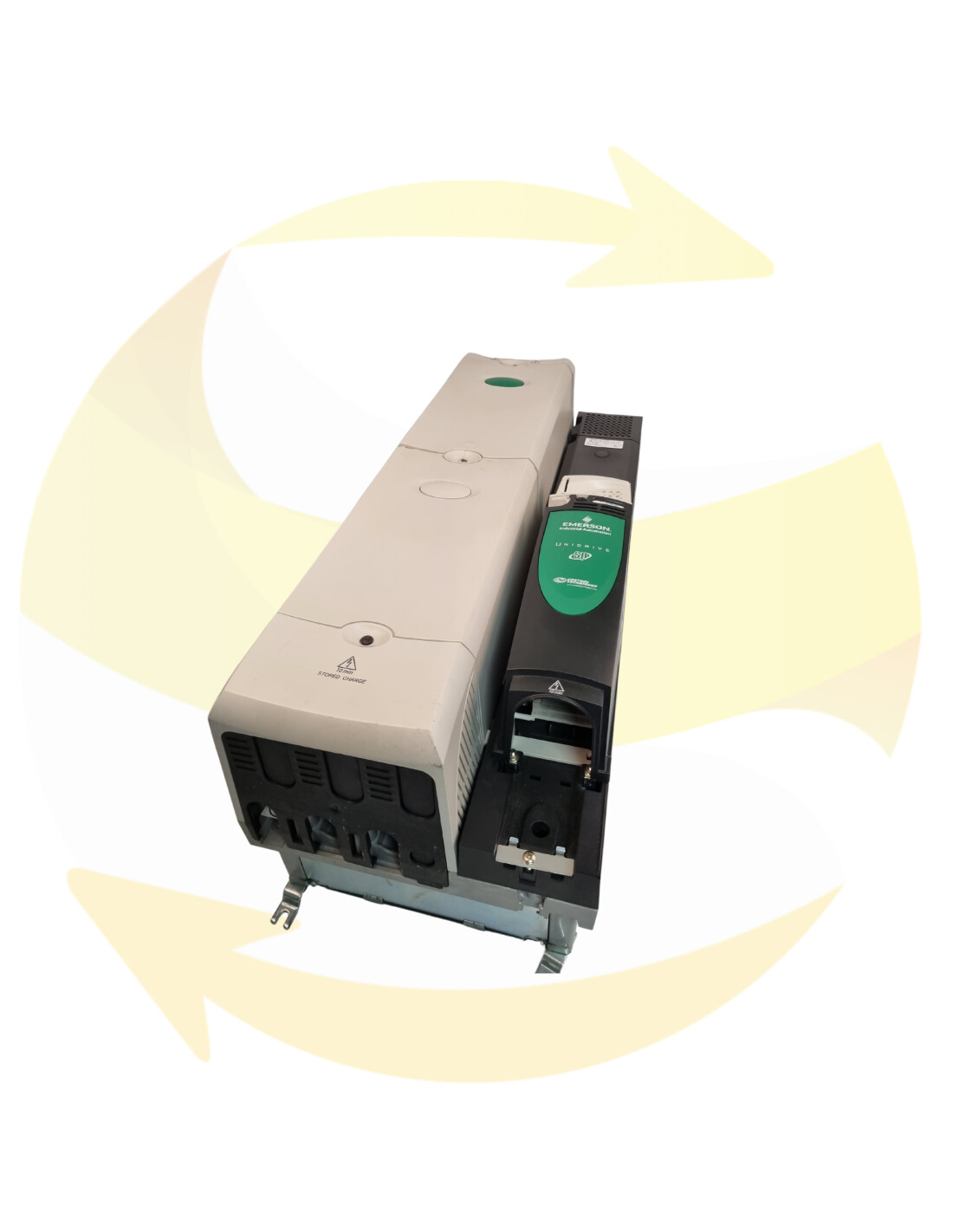

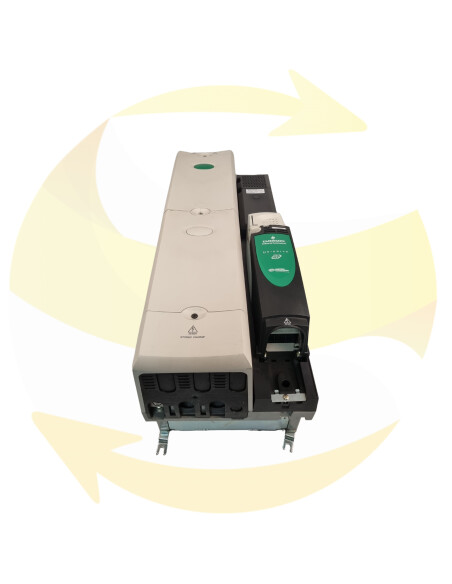

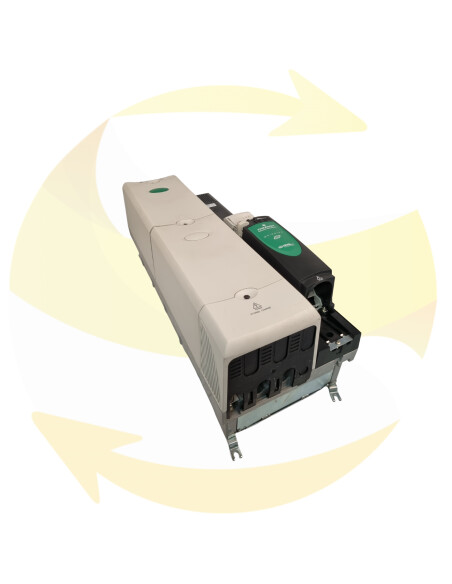

SPMD1401 - Inverter Drive - CONTROL TECHNIQUES
This reference drive SPMD1401 and brand CONTROL TECHNIQUES is a drive from the UNIDRIVE SPM range.

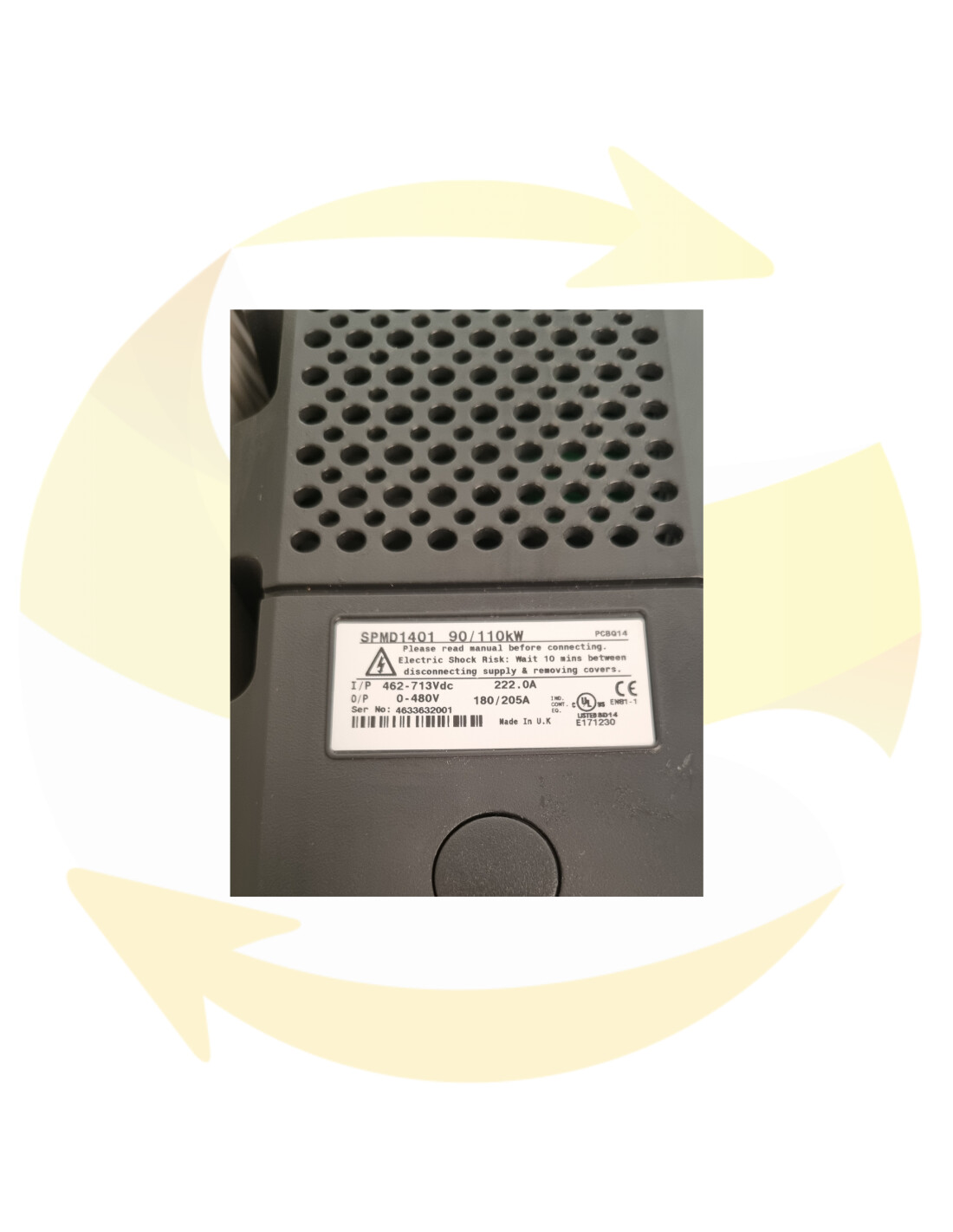

High power universal dimmer: 380/480V, 90/110kW, 180/205A. Rectifier required: SPMC1402, Line choke required: INL401.
This CONTROL TECHNIQUES drive is at your disposal to replace your defective equipment and has an appropriate guarantee.
Drive tested on an engine test bench.
Benefits of SPM
You can create custom high-power systems with mass-produced power modules, while benefiting from their proven reliability and reduced lead time. The IP20 modules, both compact and innovative, are very easy to install and use.
A near-perfect power waveform is achieved by minimizing input harmonics using 12, 18, or 24-pulse rectifiers or eliminating harmonics with a sinusoidal absorption configuration. Control of dynamic loads using a built-in braking module or full control of the energy returned to the network by a regenerative input module. Reduced operating costs by distributing braking energy between the drives through a common DC bus system and returning excess energy to the supply network through a sinusoidal absorption configuration. High-performance motor control, without position sensor thanks to RFC (Rotor Flux Control) mode, with simple parameter setting. Easy familiarization and integration with controls and options common to the entire Unidrive SP range. The SPM range complements the existing Unidrive SP range described in another brochure. Modular SP drive for cabinet mounting: 0.75 to 132 kW.
The SPM offer:
● SPMA - Alternating Current (AC) Input and Output
● SPMD - Direct Current (DC) Input and Alternating Current (AC) Output
● SPMC - Controlled Rectifier
● SPMU - Uncontrolled rectifier
Electrical design
The products in the SPM range can be used to implement most drive systems. The separation of the power circuit into rectifier modules and inverter modules makes it possible to make configurations that are both rational and compact. For example, this 550 kW four-quadrant test bench driver system includes 6 identical inverter modules in a 2.4 m cabinet assembly.
Control Techniques is a leading manufacturer of AC and DC speed variation, servo motors and power conversion technologies for commercial and industrial applications. Their innovative products are used in the most demanding applications, requiring performance, reliability and energy efficiency.
Nidec Control Techniques has been at the forefront of industrial-driven drive technology for more than 40 years. They are dedicated to the advancement of automation. From product development to their headquarters to their 45 automation centers around the world, Nidec Control Techniques provides industry-relevant solutions. They guarantee high performance, reliability and energy efficiency in all applications.
