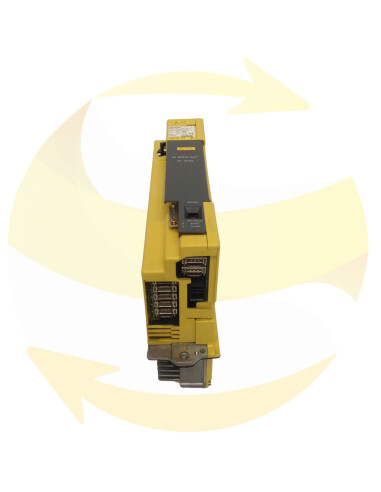

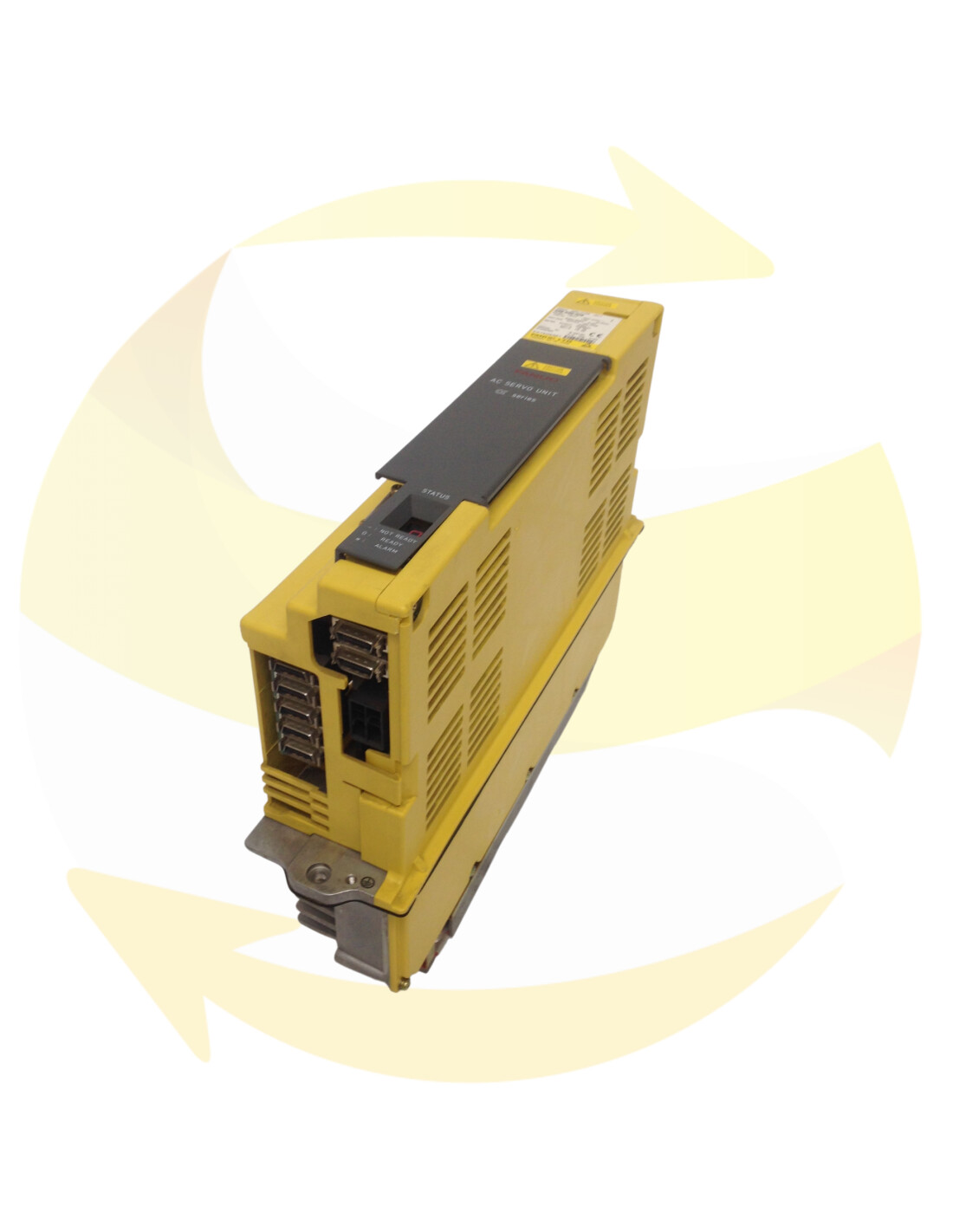

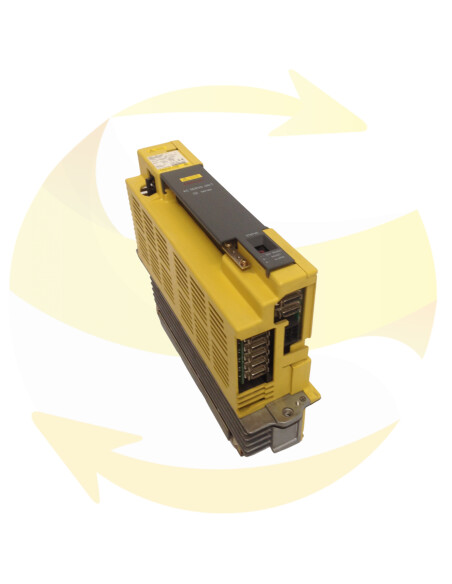

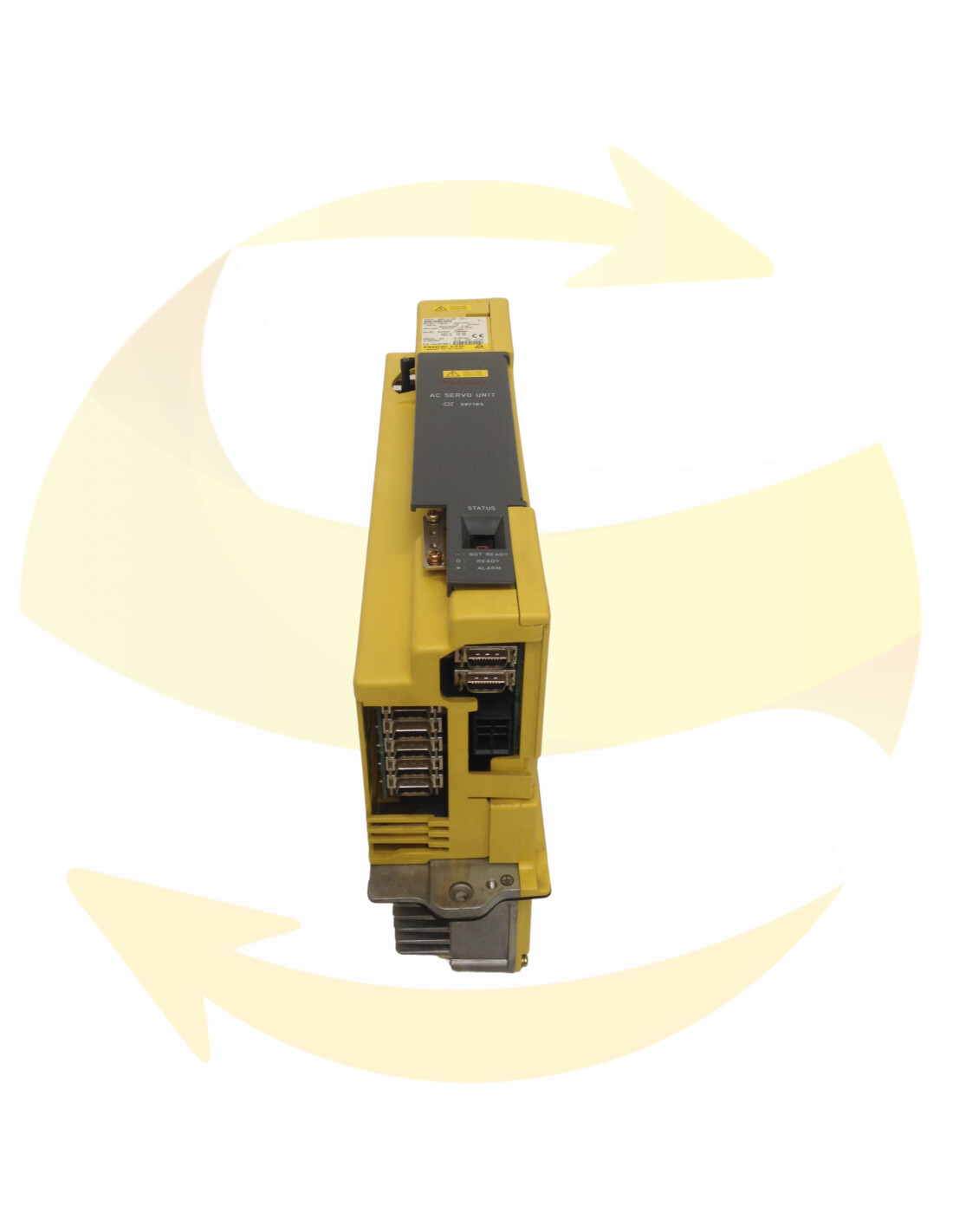

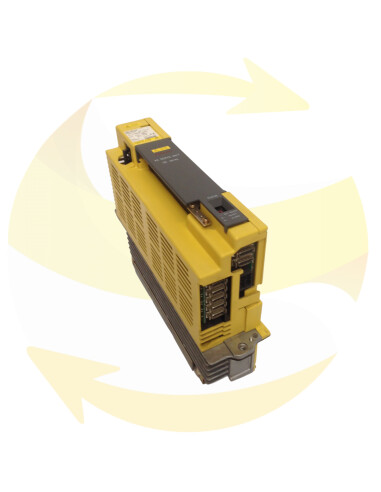

A06B-6090-H266

This FANUC servo amplifier module with 2 axes and reference A06B-6090-H266 is a drive type AC. SVUC2-80/80.

Input: 200-230V/Power: 10A. - Nominal output 230V ~ 10.2A/10.2A

This servo amplifier A06B-6090-H266 is at your disposal to replace your defective equipment and has a guarantee adapted to your needs

Drive reconditioned and tested under full load (test duration) on FANUC bench

In stock, ready to ship.
State
  • Refurbished Supply
Warranty
€3,480.00

System options

Exchange service with a refurbished unit

Standard Exchange Service

Reconditioned and tested systems

From 6 to 12
month warranty

Exchange service with a new unit

Standard Exchange Service

New systems

From 12 to 24
month warranty

Supply of a refurbished unit

Supply Service

Reconditioned and tested systems

From 6 to 12
month warranty

Supply of a new unit

Supply Service

New systems

From 12 to 24
month warranty

For parts only

Supply Service

Sold for parts – no warranty

Repair

Repair service

Repair will be made to damaged and defectiv units

From 3 to 18
month warranty

Livraison rapide

Fast
delivery

Livraison rapide

guaranteed
products

Livraison rapide

Secure
payment



There are four channel switches above the 7-segment LED behind the terminal board cover on the front of the servo amplifier.
The check pins in the servo amplifier unit enable checking the control power supply voltage and motor current. There are six check pins in the servo amplifier unit. Open the terminal cover on the servo amplifier unit front panel,and you will see the six check pins below the 7 segment LED.

If an axis is left unused, for example, in a two-axis amplifier, remove the cable between the NC and servo amplifier unit, and insert a dummy connector,with pins 8 and 10 strapped, into the JV*B (for type A interface) or JS*B (for type B interface) connector of that axis.
If a dummy connector is inserted, it prevents the motor of the corresponding axis from being energized. In this state, the dynamic brake is not applied to the motor, leaving it in a free state. Be careful especially about vertical- axis motors in this situation.

Amplifier

- α series servo amplifier, α series spindle amplifier, α series power supply module, αi series servo amplifier, βi series servo amplifier, αi series spindle amplifier, αi series spindle amplifier.

Applicable CNC

FANUC Series 30i/300is/300i, FANUC Series 31i/310is/310i A5, FANUC Series 31i/310is/310i, FANUC Series 31i/310is/310i, FANUC Series 32i/320is/320i.

Number of controlled axes

- Series 30i/300is/300i : 32 maximum

- Series 31i/310is/310i A5 : 20 maximum

- Series 31i/310is/310i : 20 maximum

- Series 32i/320is/320i : 9 maximum

Number of spindle controlled axes

- Series 30i/300is/300i : 8 maximum

- Series 31i/310is/310i A5 : 6 maximum

- Series 31i/310is/310i : 6 maximum

- Series 32i/320is/320i : 2 maximum

Height
38 cm / 14,9 in
Width
9 cm / 3,5 in
Length
27,2 cm / 10,71 in
Weight
5 kg / 11 lbs
Family
FANUC ALPHA SERVO MODULE
Reference
A06B-6090-H266
Refurbished
3005002761505
300231769821

FANUC is a Japanese manufacturer of industrial robots, machining centers and numerical controls for machine tools

Since its creation in 1956, when the company’s founder, Dr. Seiuemon Inaba, introduced the concept of digital controls, FANUC has always been at the forefront of manufacturing techniques in the world. Moving from the automation of a single machine in the late 1950s to the automation of entire production lines over the following decades.
