EVS9327-EP - Position controller - LENZE

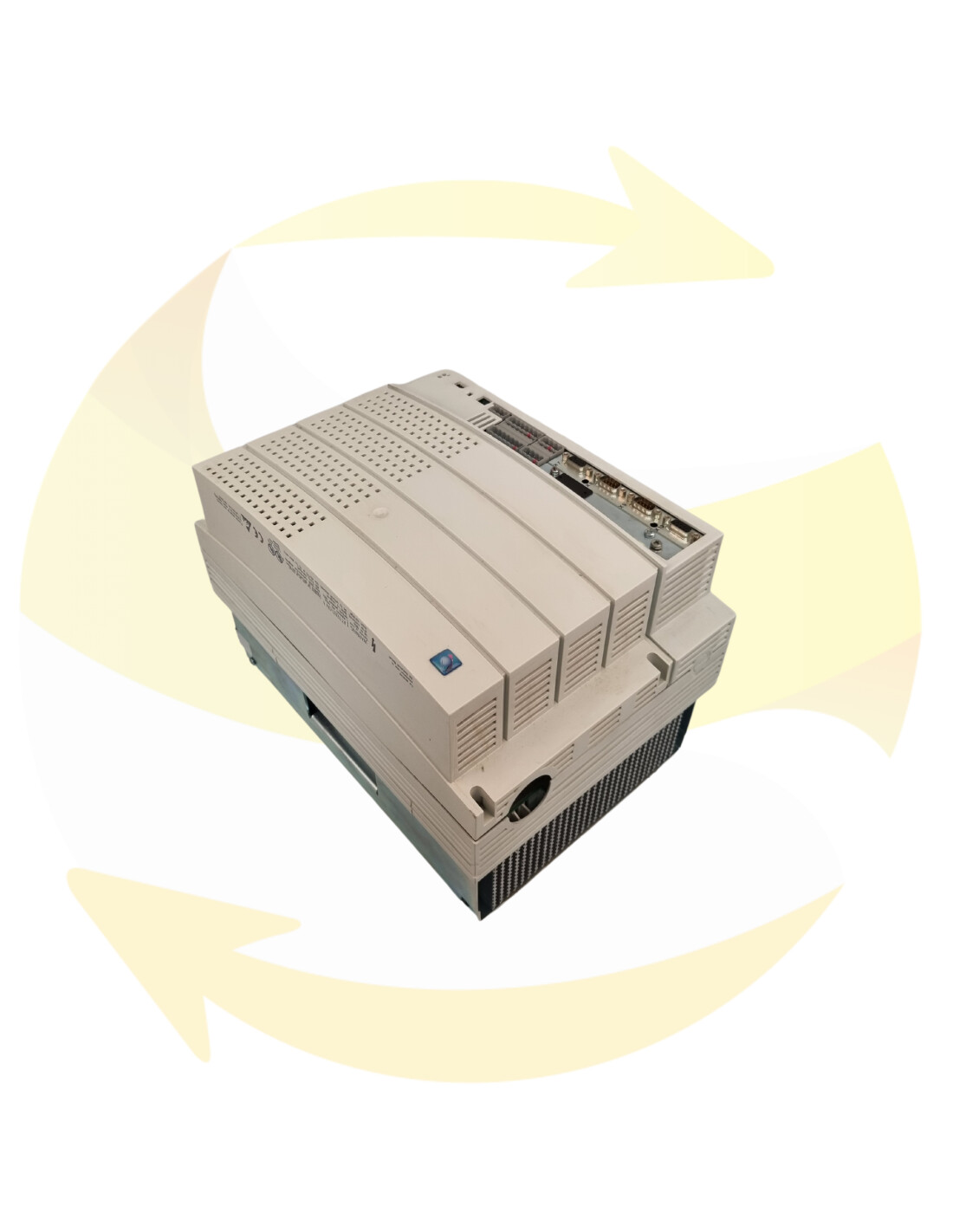

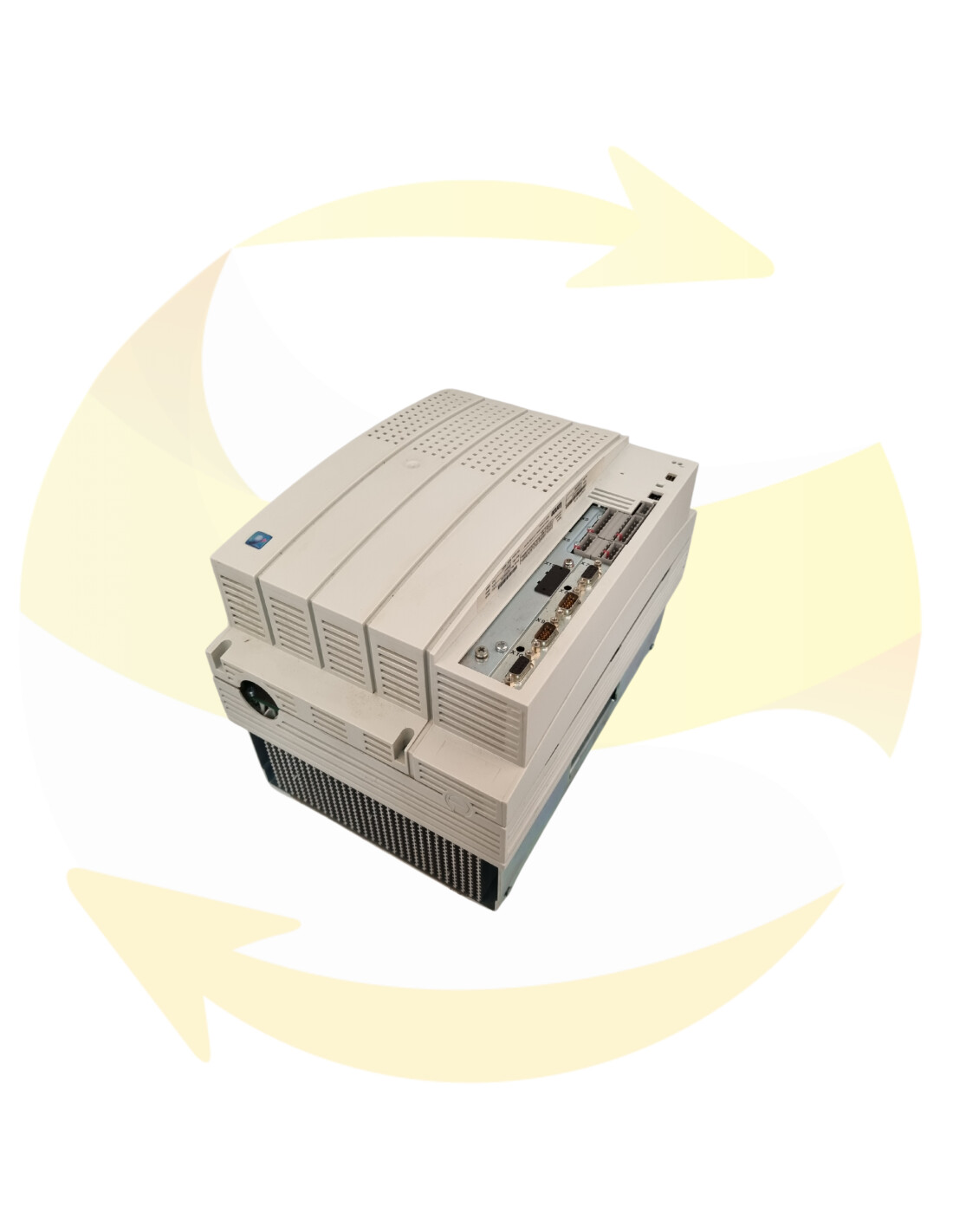

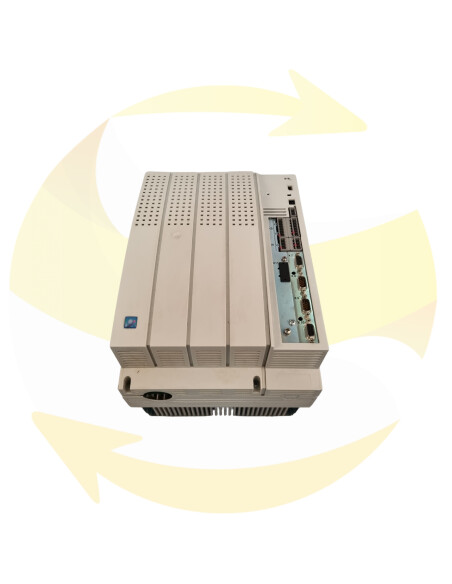

Lenze EVS9327-EP brushless controller, 9300 series for precise positioning

The brushless controller EVS9327-EP belongs to the Lenze 9300 range, engineered to control industrial axes in position, speed and torque. Intended for motion control environments, it drives synchronous brushless motors as well as asynchronous motors in demanding positioning applications. Its architecture is suited for cabinet integration, with a three-phase 400/480 V, 50/60 Hz supply. The EVS9327-EP model is selected when trajectory accuracy, repeatability and drive responsiveness determine process quality, for example on packaging lines, handling systems, indexing conveyors or assembly machines. In both maintenance and design phases, its servo control logic and compatibility with application modules from the 9300 series enable repeatable commissioning, stable dynamic performance and smooth integration within an automation architecture with a programmable logic controller or a numerical controller.

Technical specifications

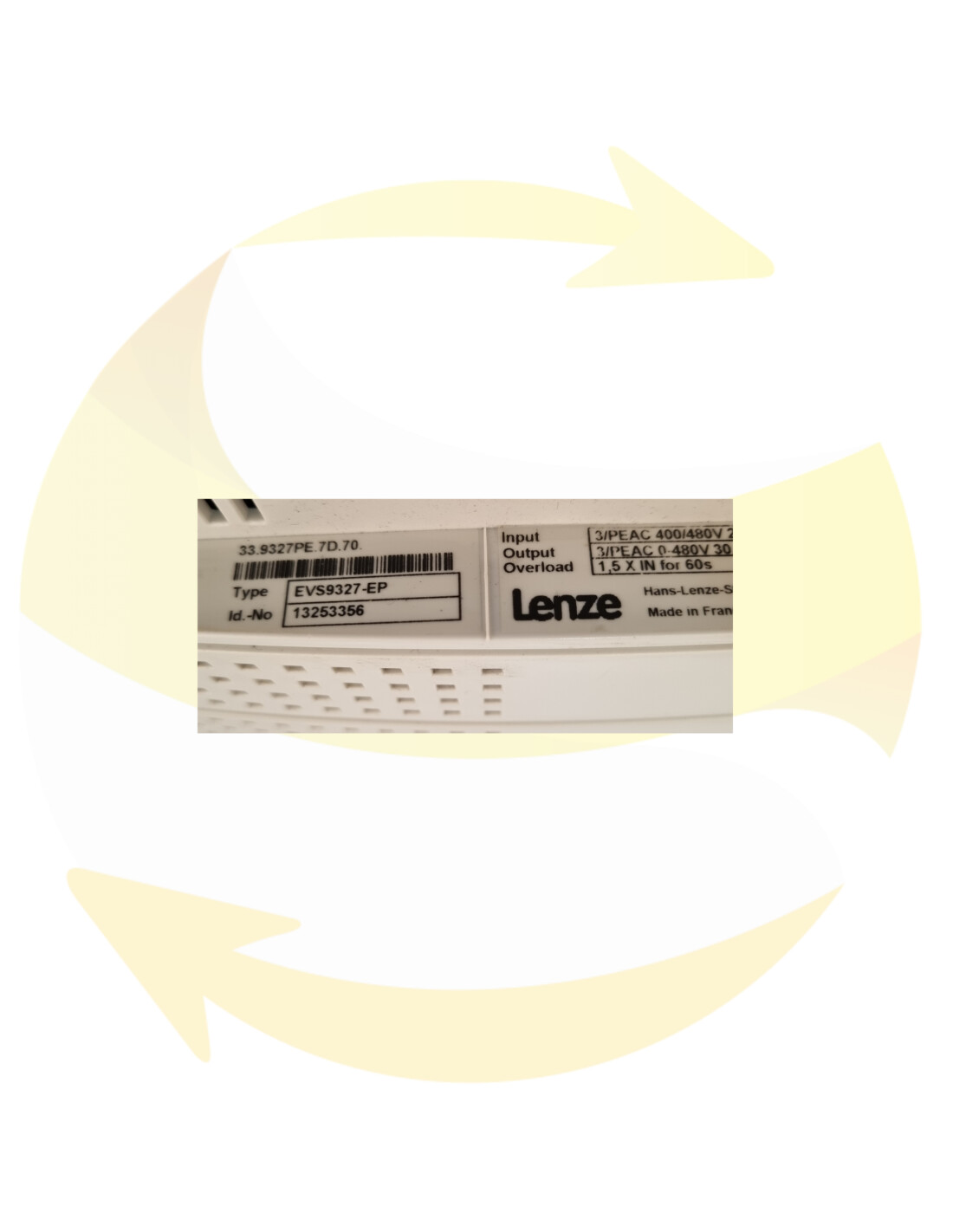

• Référence constructeur : EVS9327-EP
• Gamme : Lenze 9300, servo drives and position controllers
• Constructeur : Lenze
• Type : Brushless positioning controller, servo drive for axes
• Tension d’alimentation : 3 × 400/480 V AC, 50/60 Hz
• Puissance nominale typique : 15 kW, about 20 HP, commonly indicated value for this reference
• Courant nominal : 27 A three-phase
• Compatibilité moteurs : synchronous brushless and asynchronous motors
• Mode de commande : servo-oriented control for position, speed and torque, closed-loop operation with encoder feedback depending on options
• Communication : optional cards for common fieldbuses, e.g. PROFIBUS-DP, CANopen or DeviceNet depending on configuration
• Montage : cabinet integration, connection via terminals and dedicated modules of the 9300 series

Overview of the Lenze 9300 range

The Lenze 9300 series groups modular servo drives designed for precise control of industrial drives. Widely used on automated lines, it offers a balance of control performance, rich functionality and deployment flexibility. The range supports synchronous brushless and asynchronous motors, with application modules focused on positioning and motion profiling. This longevity equips a large installed base, easing maintenance and reducing downtime in case of failure.

• 9300 position-oriented: positioner functions, management of indexing, synchronized speeds and torque limiting for repetitive transfer operations.
• Modules and options: communication extensions, I/O and encoder feedback interfaces allowing adaptation of the control to existing sensors and architecture.

The EVS9327-EP fits within this axis control concept, with a power and current rating appropriate for 400/480 V chassis. It is therefore chosen for areas where cycle time, low-speed torque performance and position repeatability have a direct impact on productivity.

Industrial applications

This brushless controller is suitable for drive trains where control stability and trajectory quality determine machine yield. It meets the requirements of process engineers, integrators and maintenance teams seeking reliable and repeatable axis control while maintaining constructive compatibility with Lenze equipment of the same family.

• Packaging: conveyor indexing, roller synchronization, fixed-step placement.
• Material handling and robotics: translation axes, shuttles, grippers with controlled positioning.
• Special machines: multi-axis positioning, repetitive motion profiles, torque limiting for assembly operations.
• Paper and film industry: axis decoupling, speed control, tension control according to kinematics.
• Intralogistics: positioning at stations, accumulation tables, high-throughput routing sequences.

Integration and communication

The EVS9327-EP integrates into automation architectures via optional communication cards compatible with common fieldbuses, for example PROFIBUS-DP, CANopen or DeviceNet depending on the chosen configuration. This connectivity eases the exchange of setpoints and diagnostics with the programmable logic controller, as well as multi-axis coordination. The input/output interfaces handle stop signals, enables, referencing and process events.

Commissioning is performed via the operator panel and the Lenze software tool appropriate for the 9300 series. Control, ramp, positioning and sensor feedback parameters are adjusted to ensure a stable and repeatable response. Compatibility with incremental or absolute encoders, depending on installed modules, enables closed-loop position and speed control. In larger architectures, the controller is placed upstream of a numerical controller or a supervision system to ensure traceability and coordinated control with the rest of the installation.

Availability and warranty

The brushless controller Lenze EVS9327-EP is offered by Standard Exchange Industry as supply, exchange service and electronic repair. Each unit is bench-tested and delivered with a warranty according to the chosen service. Shipping within 24 to 72 hours to over 120 countries, accompanied by assistance from our technicians to confirm the suitability of the reference for your needs, whether it is a rapid return-to-service of a production axis or a scheduled preventive replacement. In case of obsolescence or architecture evolution, we guide you towards compatible replacement solutions to reduce downtime and secure the continuity of your process.
