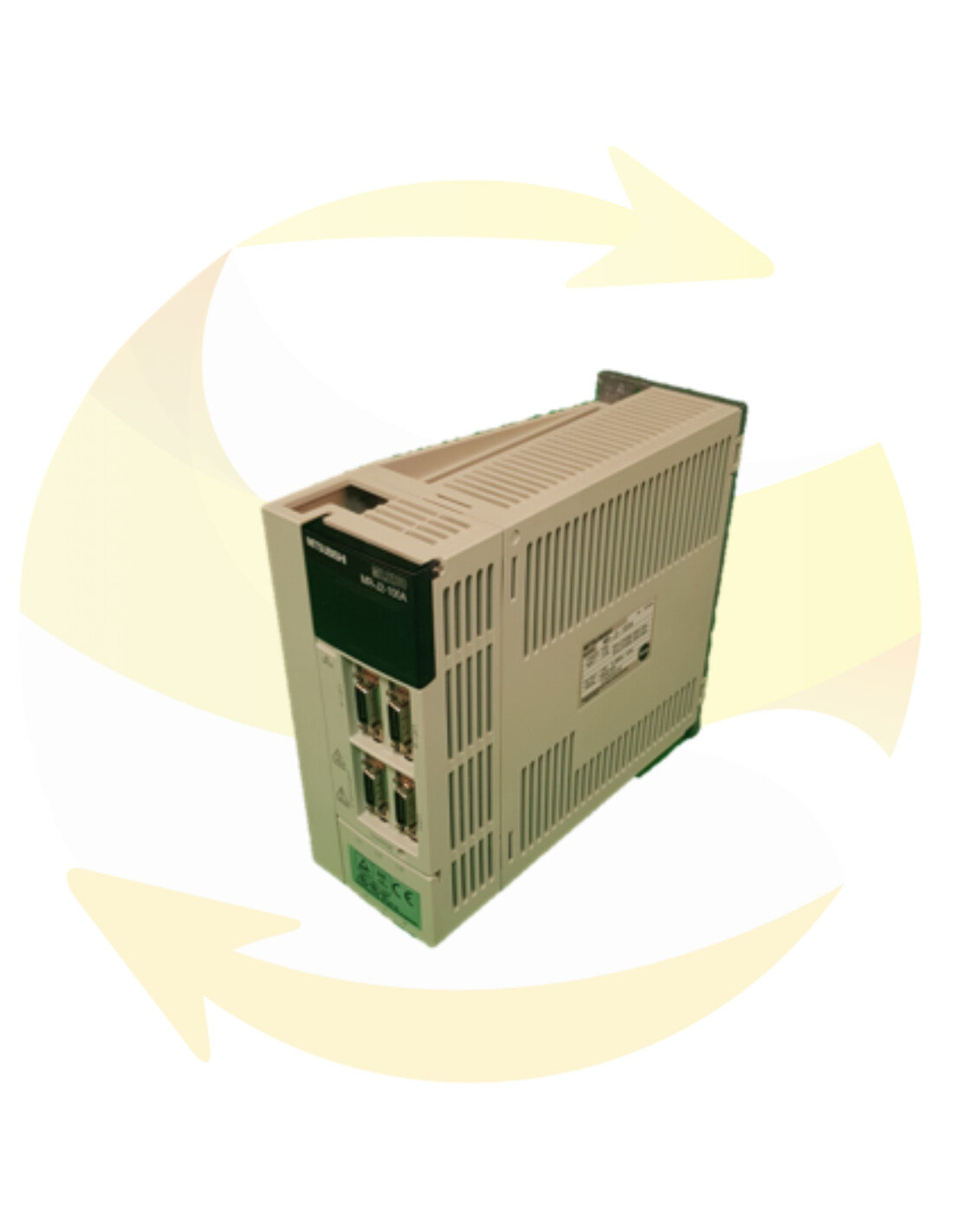

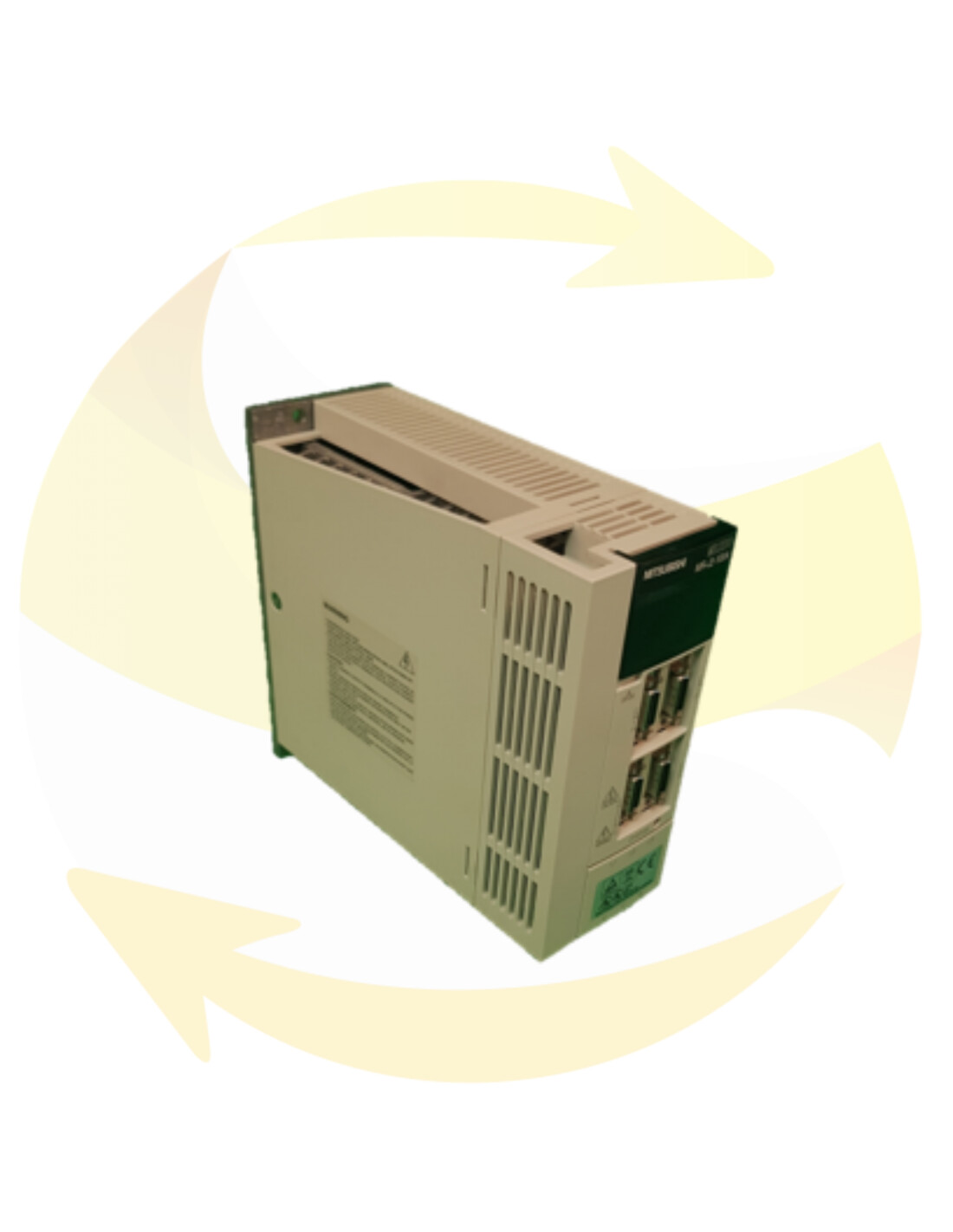

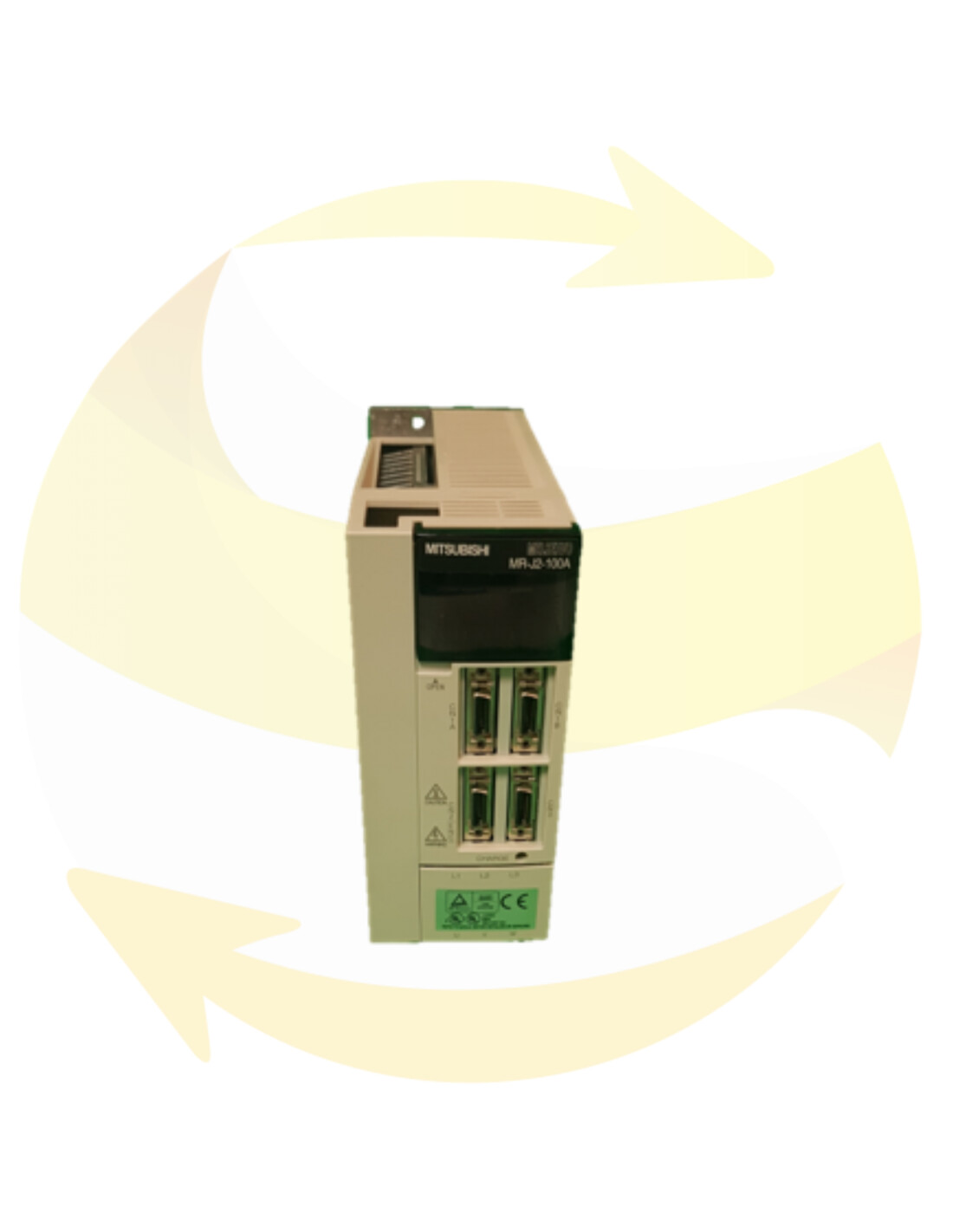

MR-J2-10C - Servo Amplifier - MITSUBISHI
This MITSUBISHI servo amplifier, reference MR-J2-10C is an AC servo drive. It belongs to the MELSERVO-J2-Series.
0,1 kW Mitsubishi AC servo drive for HC-MF053, HC-MF13, HA-FF053, HA-FF13, HC-UF13 servo motors.
This MR-J2-10C servo amplifier is at your disposal to replace your defective equipment and has a warranty adapted to your needs.
Servo amplifier 100% tested on MITSUBISHI motors.
The MR-J2-C AC servoamplifier with integrated positioning functions is the MR-J2-A servoamplifier that incorporates single-axis positioning functions. These functions perform a positioning operation by simply defining the position data (target positions), the servomotor speeds, the acceleration and deceleration time constants, and so on. to indicate the tables as if they were configured as parameters. The servo amplifier is the most suitable for configuring a simple positioning system without a program or for simplifying a system, for example.
Standard 3-point tables are available and can be increased up to 15 points using the optional configuration software.
You can choose a configuration that suits your needs, for example. simple positioning system using external I / O signals (DI / O), operation using serial DI / O and RS-422 communications, or multiple drop operation using RS-422 serial communication.
All servomotors are equipped as standard with an absolute position encoder. An absolute position detection system can be configured by simply adding a battery to the servo amplifier. Once the initial position is defined, it is not necessary to return to the initial position at power up, in case of alarm, etc.
The MR-J2-C AC servoamplifier with positioning function is easier to use and more functional by using the configuration software.
