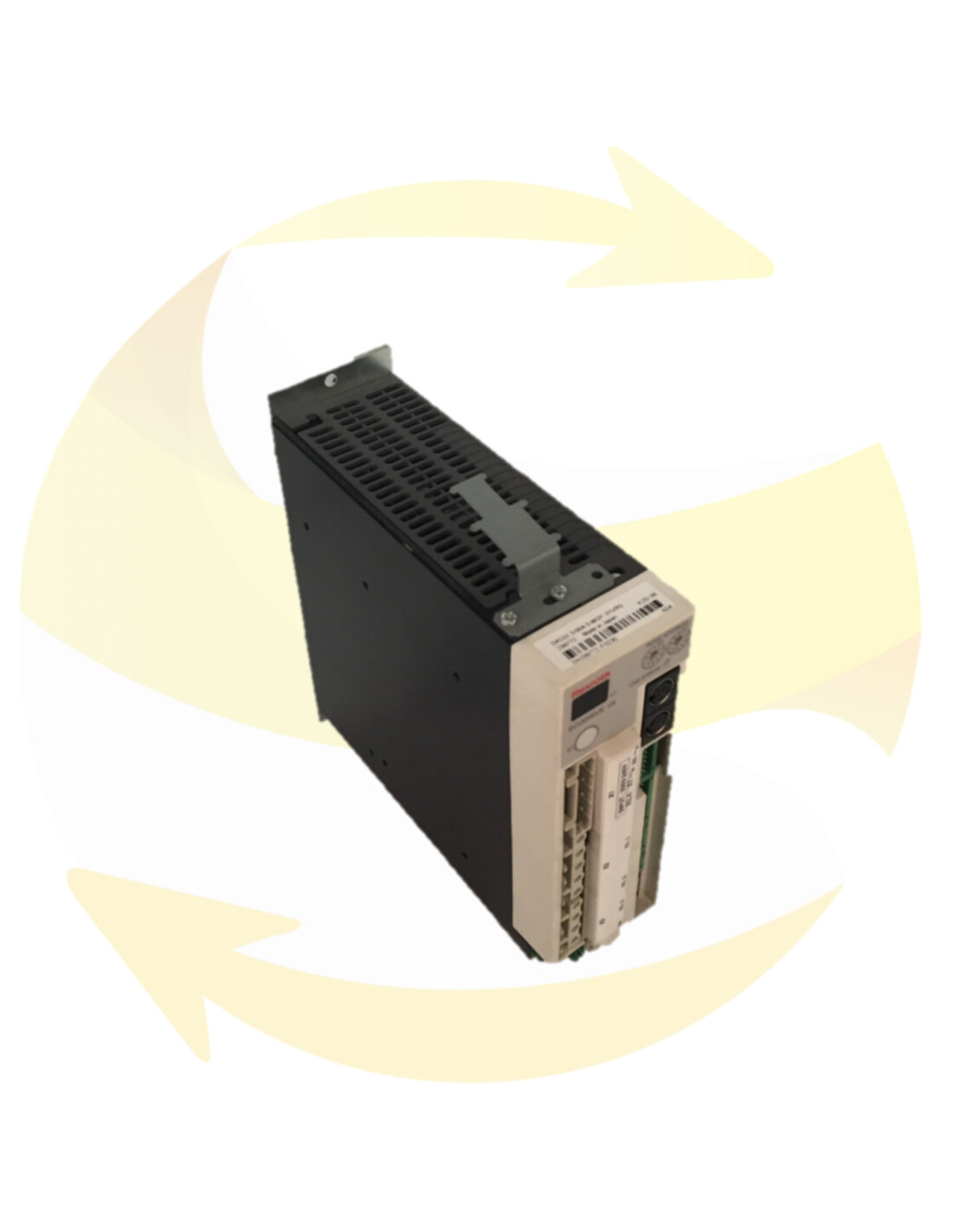

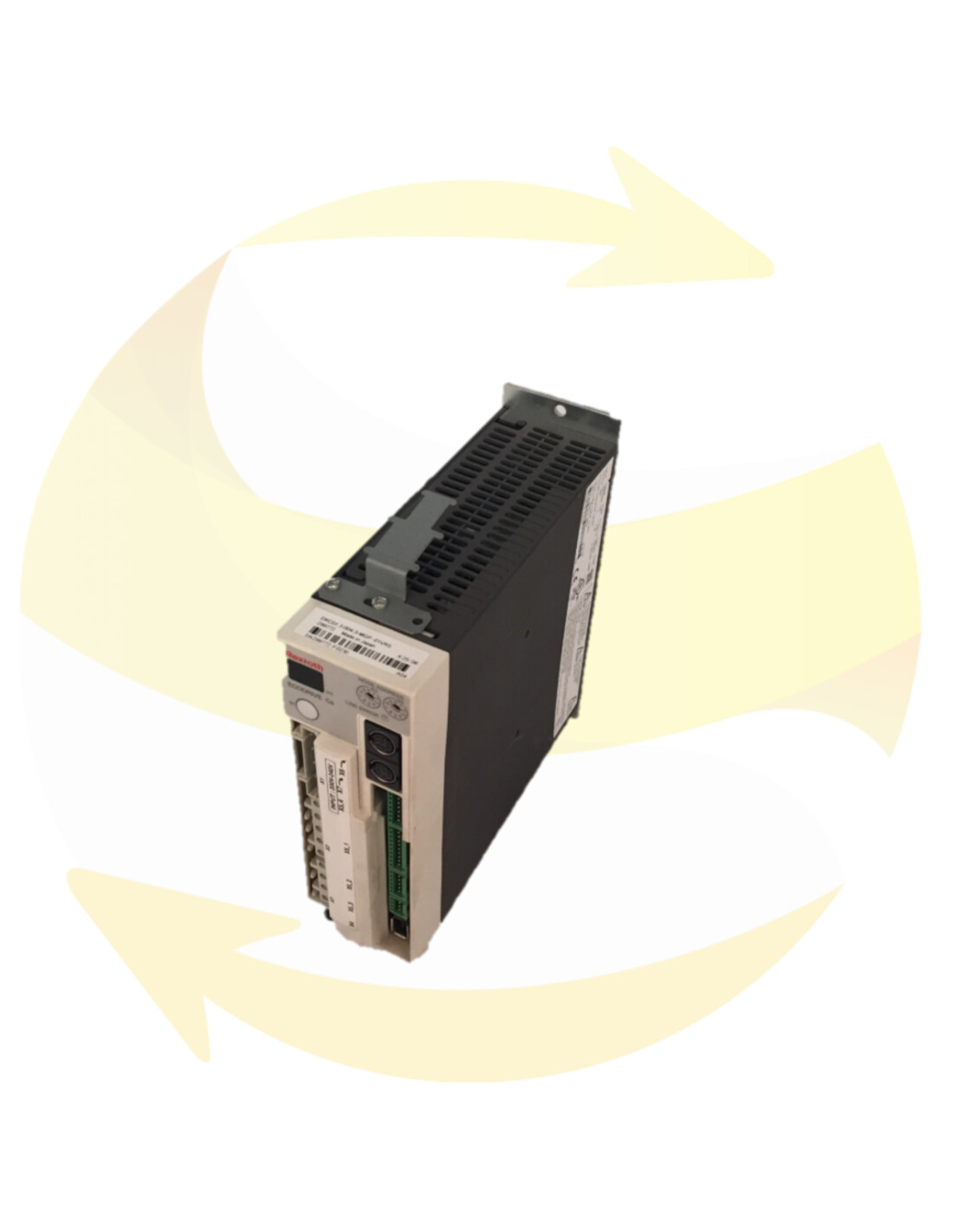

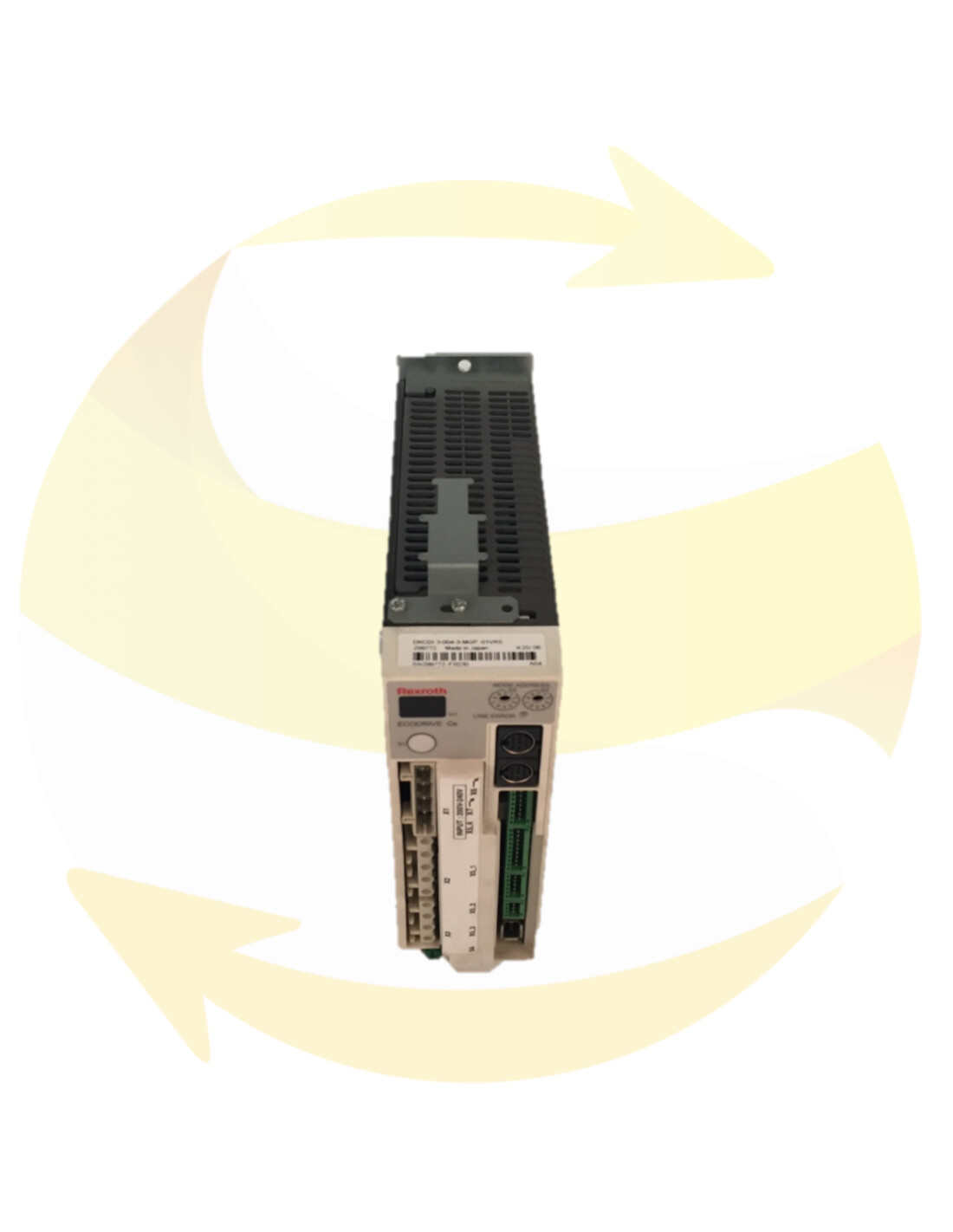

DKC01.3-012-3-MGP-01VRS

This reference INDRAMAT drive DKC01.3-012-3-MGP-01VRS  belongs to the product range ECODRIVE Cs MGP 01VRS

This drive is designed for INDRAMAT CNC machine tools and is used with INDRAMAT MSM030C-0300-NN-C0-CG0 motors.

This INDRAMAT drive is at your disposal to replace your defective equipment and has a guarantee adapted to your needs.

In stock, ready to ship.
State
  • Refurbished Supply
Warranty
€720.00
VAT excluded

System options

Exchange service with a refurbished unit

Standard Exchange Service

Reconditioned and tested systems

From 6 to 12
month warranty

Exchange service with a new unit

Standard Exchange Service

New systems

From 12 to 24
month warranty

Supply of a refurbished unit

Supply Service

Reconditioned and tested systems

From 6 to 12
month warranty

Supply of a new unit

Supply Service

New systems

From 12 to 24
month warranty

For parts only

Supply Service

Sold for parts – no warranty

Repair

Repair service

Repair will be made to damaged and defectiv units

From 3 to 18
month warranty

Livraison rapide

Fast
delivery

Livraison rapide

guaranteed
products

Livraison rapide

Secure
payment



ECODRIVE Cs is a new generation of system-compatible AC servo drives in the lower power range of 100 W to 750 W. It is an extension of the ECODRIVE03 product range. The drive controllers and motors have a specially compact design.

The drive controllers are equipped with the master communication modules SERCOS interface, PROFIBUS-DP, CANopen, DeviceNet or analog/parallel interface; they are perfectly suited for use in systems with multiple-axis devices and can also be used as intelligent single axes on a standard field bus.

The FWA-ECODR3-MGP-01VRS-MS firmware can be used for operating the following MSM motors:

• MSM020B (100 W)
• MSM030B (200 W)
• MSM030C (400 W)
• MSM040B (750 W)

These motors are adjusted to the drive controllers and their size is very compact.
The following optional features are available for the motors:
• an integrated holding brake
• drive shaft with key
• absolute encoder (for detecting the current position of the load without travelling to reference point)

For the ECODRIVE03 range there are four firmware types for different applications :

• SMT : Drive for Machine T ool Applications with SERCOS, Analog and Parallel Interface

• SGP: Drive for General Automation with SERCOS, Analog and Parallel Interface

• FGP: Drive for General Automation with Field Bus Interfaces

• MGP: Drive for General Automation with SERCOS interface, Field Bus Interfaces (PROFIBUS, CanOpen, DeviceNet) and Analog/Parallel Interface

Ecodrive Type 3

The Ecodrive Type 3 family was the upgrade to the Ecodrive Type 1. The firmware was moved to an external module (ESM Module) so that the firmware and parameter set from a failed drive could be moved to the replacement unit in seconds. Another significant improvement was the introduction of the modular I/O (BGR card). This allows a single spare drive power section with multiple I/O to be used as a spare instead of multiple drives.

There were also two additional power ranges added, the 100amp and 200amp units. The 230v unit was completely dropped from the lineup.

Indramat DKC Type 3 servo drive DKCxx.3

DKCXX.3-040-7-FW
DKCXX.3-100-7-FW
DKCXX.3-200-7-FW


Ecodrive Type 1

The Ecodrive Type 1 was a newer alternative to the DKS series of compact AC controllers. As the name implied, it was an economical solution for some applications. The units have internal firmware requiring disassembly to change, and are purpose built, not being reconfigurable. They were built in a single power range, but in two voltages (the 230v units were 30amp because of the reduced power available). Quite popular because of their cost and versatility, they were superseded by the DKC Type 3.

DKC01.1-040-7-FW
DKC02.1-040-7-FW
DKC11.3-040-7-FW

Height
18,2 cm / 7,17 in
Width
5,5 cm / 2,1 in
Length
17 cm / 6,6 in
Weight
1,9 kg / 4,1 lbs
Family
ECODRIVE Cs
Reference
DKC01.3-012-3-MGP-01VRS
Refurbished
3005641546204
300618016791

Indramat is an industrial company founded in 1958, based in Neuwied, Germany.
Indramat Gmbh , which is now part of Bosch Rexroth , was an industrial control company founded in 1958, based in Neuwied (am Rhein), Germany. Its name is a German abbreviation meaning «Gesellschaft zur IND ustrialisierung- RA tionalisierung und Auto MAT isierung».
