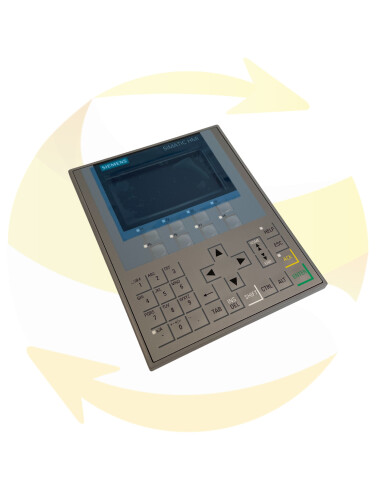

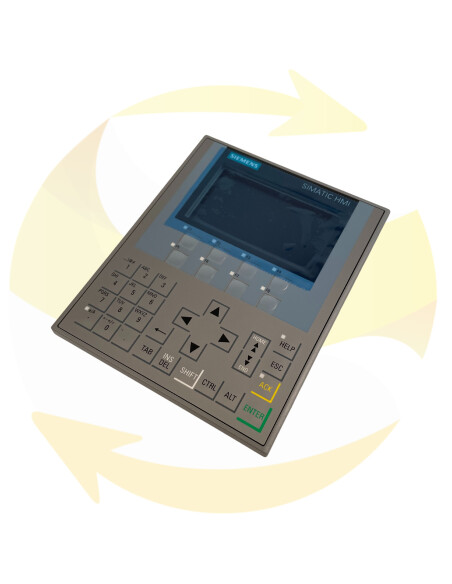

6AV2124-1DC01-0AX0 - Panel - SIEMENS

The range of SIMATIC HMI Comfort panels is completely new, it offers consoles with touch control (Touch Panels) and keyboard (Key Panels). This product line includes the following models:

● Five Key Panels (keypad control) with screen sizes 4", 7", 9", 12" and 15"

● Six Touch Panels (touchscreen operation) with screen sizes 7", 9", 12", 15", 19" and 22".

● A Key&Touch Panel (keypad and touchscreen operation) with 4" screen size All devices have the same convincing functions and are configured exclusively with the innovative WinCC HMI software. This software is integrated into the engineering structure " Totally Integrated Automation Portal

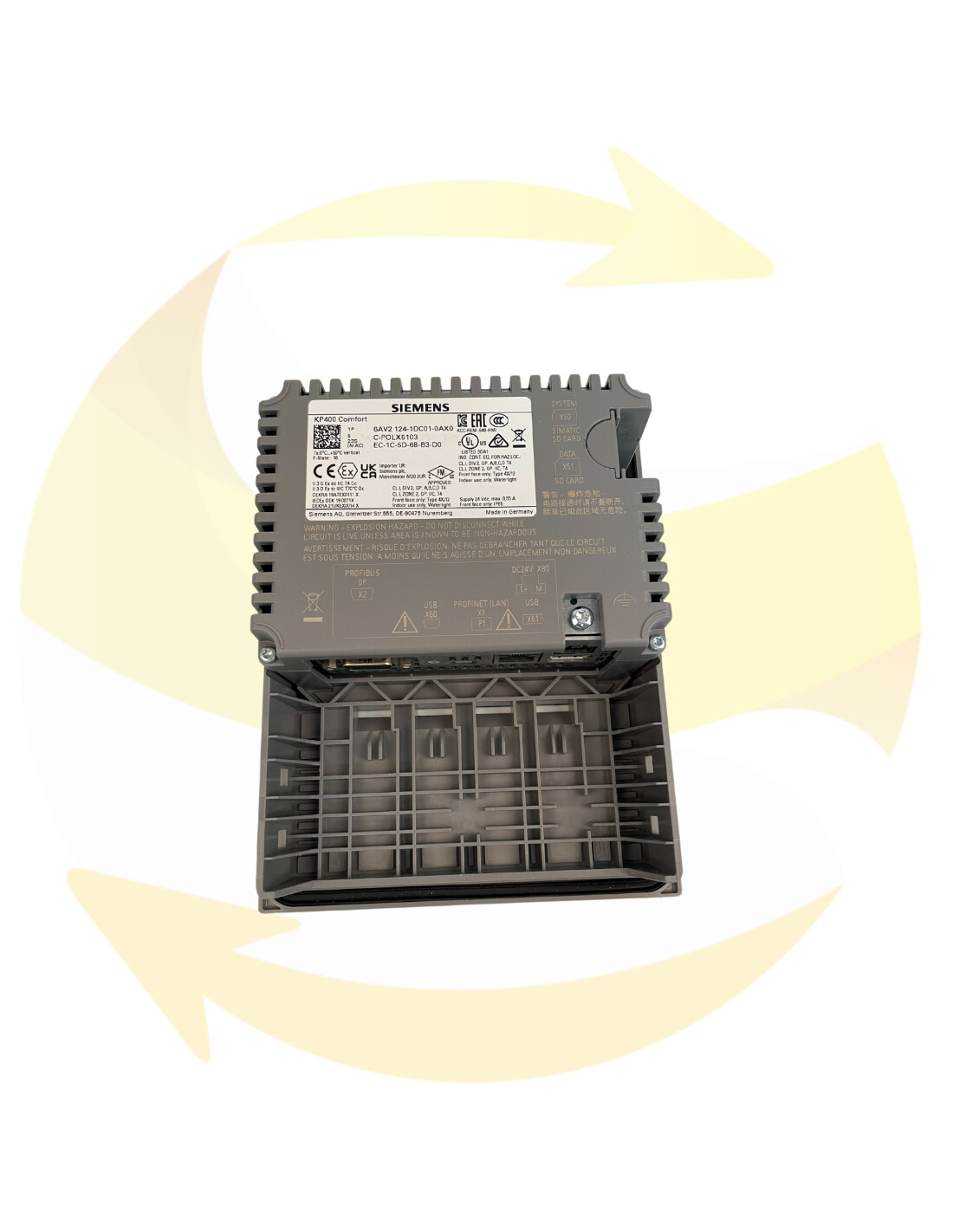

Plastic housing for the 4" model. Die-cast aluminum housing for all device models from 7"

Mounting and Operation of Touch Models in Landscape and Portrait Formats The desired format must be selected when configuring the user interface. In addition, the screen orientation must be changed in the Start Center of the HMI device.

2 PROFINET interfaces (exception: KP400 Comfort and KTP400 Comfort only have one PROFINET interface) Additional Gigabit PROFINET interface for devices from 15" 1 PROFIBUS interface USB 2.0 interfaces: • USB host port (type A) – 1 x on 4" model – 2 x on 7", 9" and 12" models • USB Device port (type mini B) – 1 x on Comfort V1/1.1 devices

High definition TFT display in widescreen format (landscape) with 16 million colors Wide reading angle Fully variable brightness

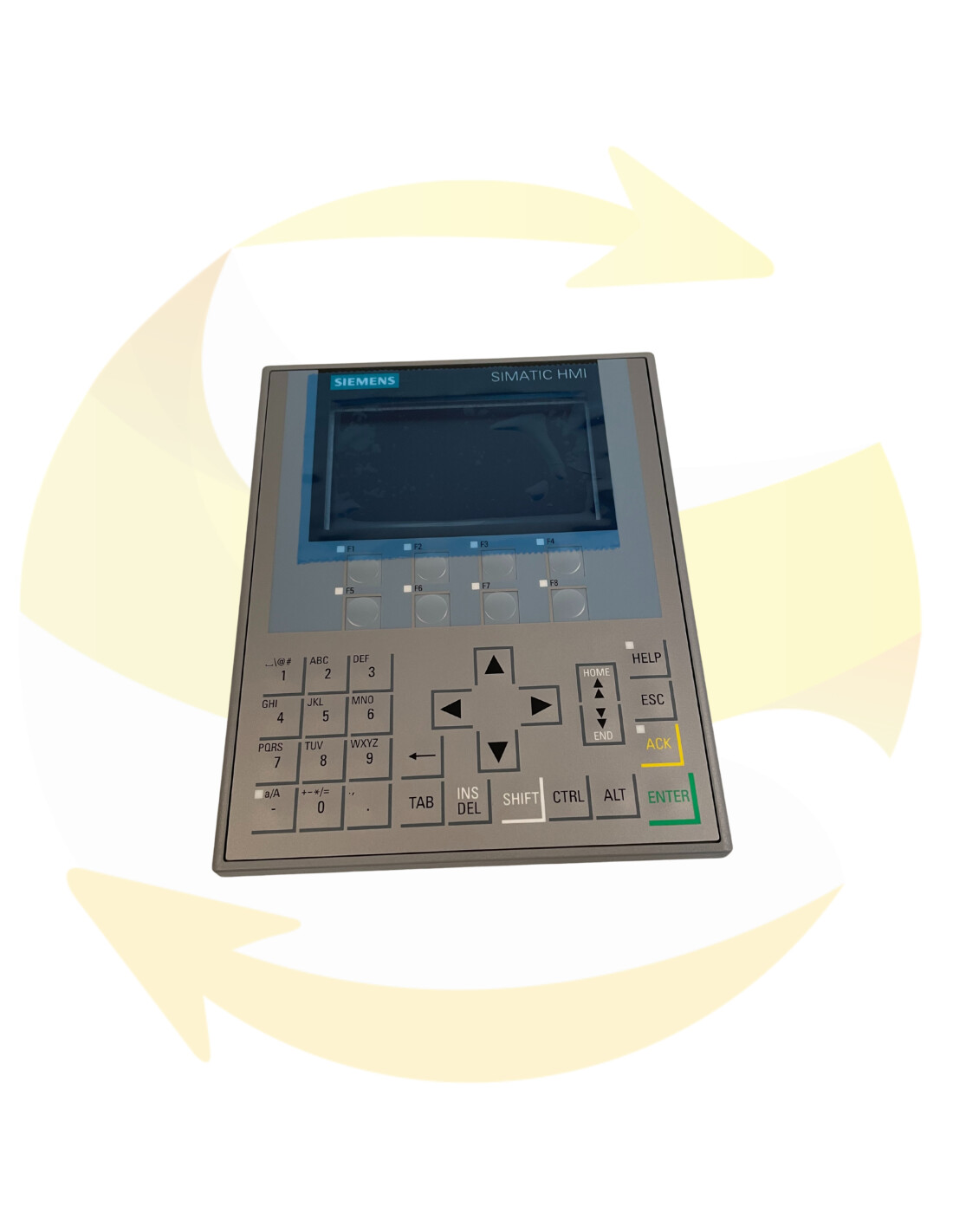

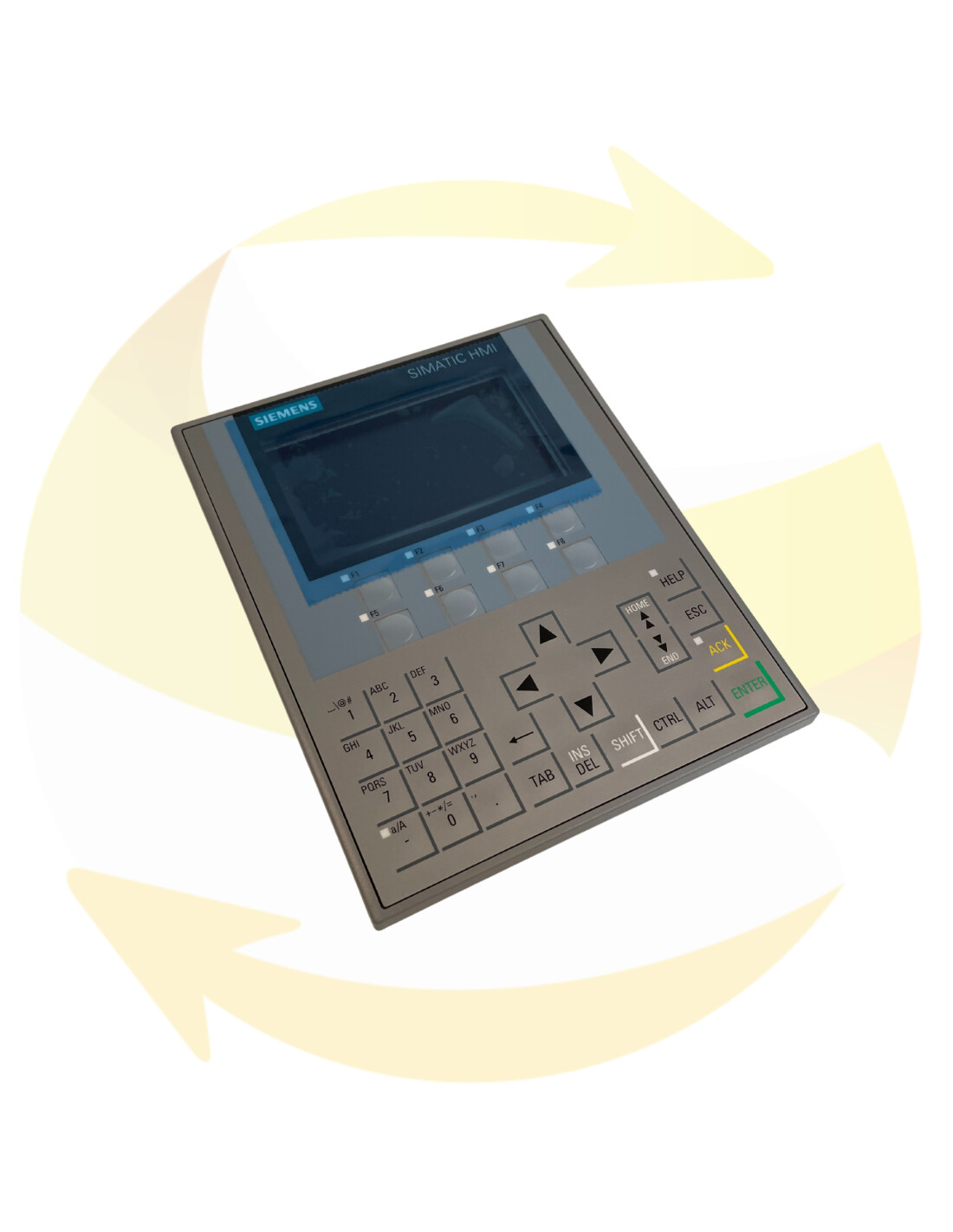

On keypad models, input of text and numbers according to the mobile phone's key scheme. All freely configurable function keys have LEDs. All keys have a clear pressure point to increase control certainty.

Internet Explorer for viewing websites Viewer for PDF, Excel and Word documents Runtime software with archive and script functions, system diagnostics for SIMATIC controller, display of curves (f(x), f(t)) and more.

2 slots for memory cards • A slot for saving user data. • A location for using the maintenance concept for simplified re-commissioning when maintenance is required. Project data and device settings are updated automatically on the system board. No data inconsistency in the event of a power outage. Applies to HMI device and inserted SIMATIC HMI memory cards with a capacity of at least 2 GB.

Since the system diagnostics of SIMATIC controllers can be read from the operator panel, there is no need to use an additional programming device.
