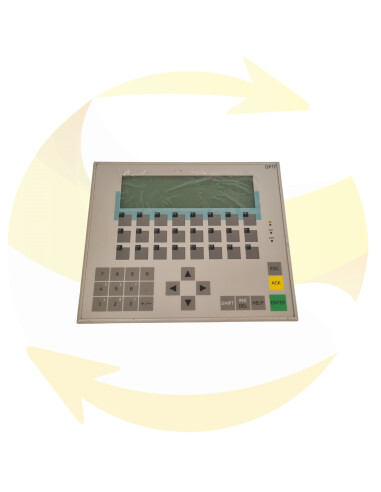

6AV3617-1JC00-0AX2 - Operator Panel - SIEMENS
SIEMENS operator panel reference 6AV3617-1JC00-0AX2 for Simatic S7.

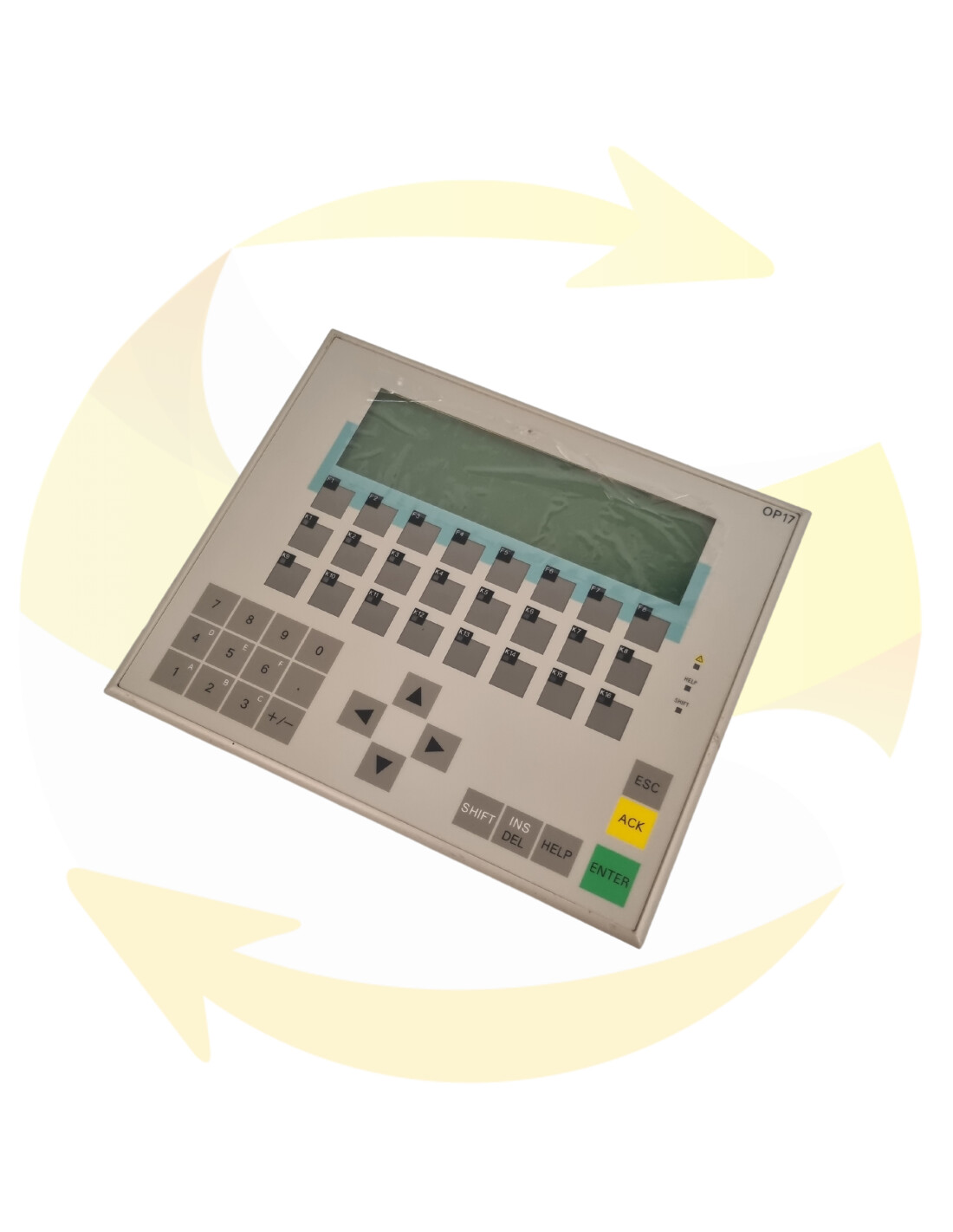

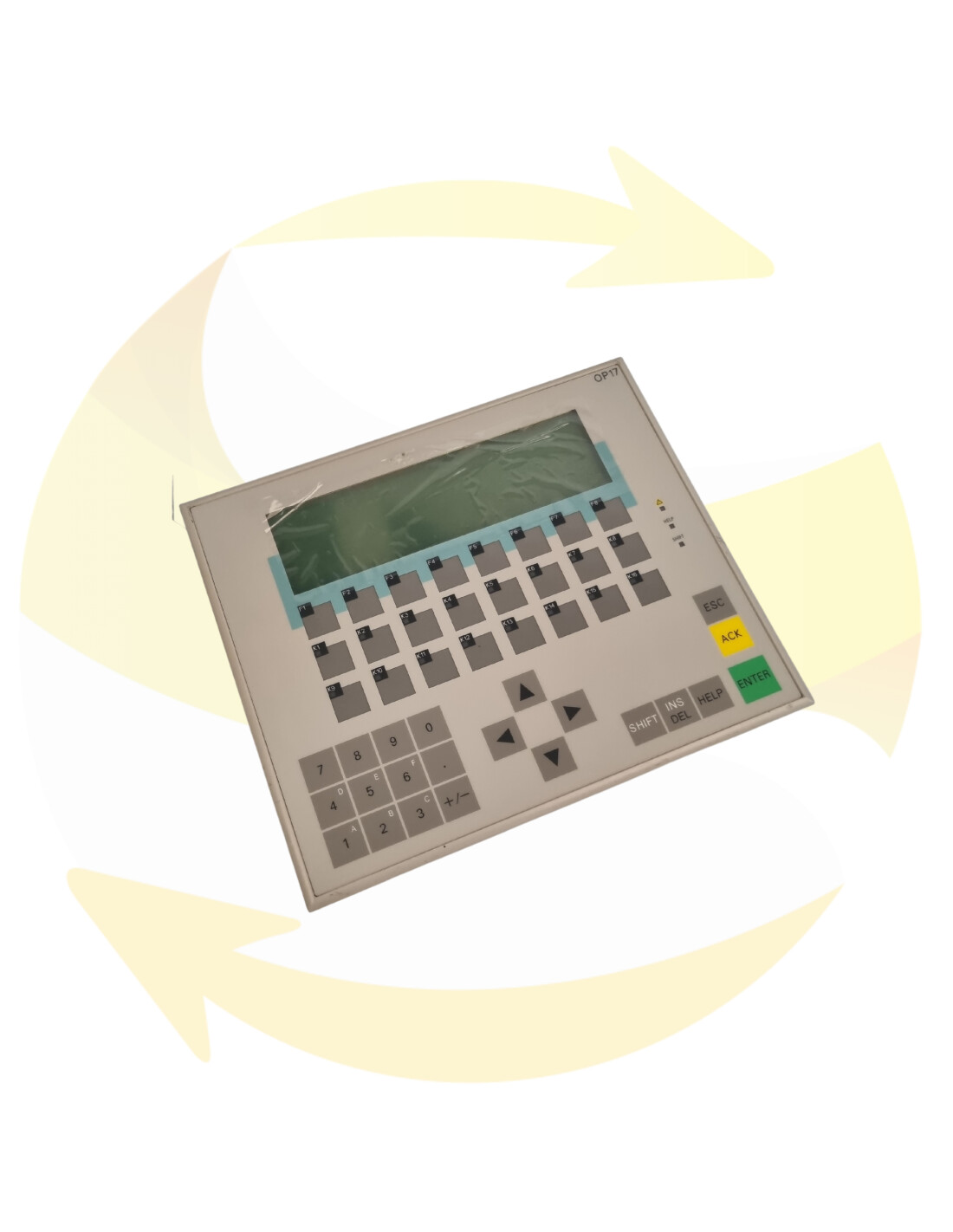

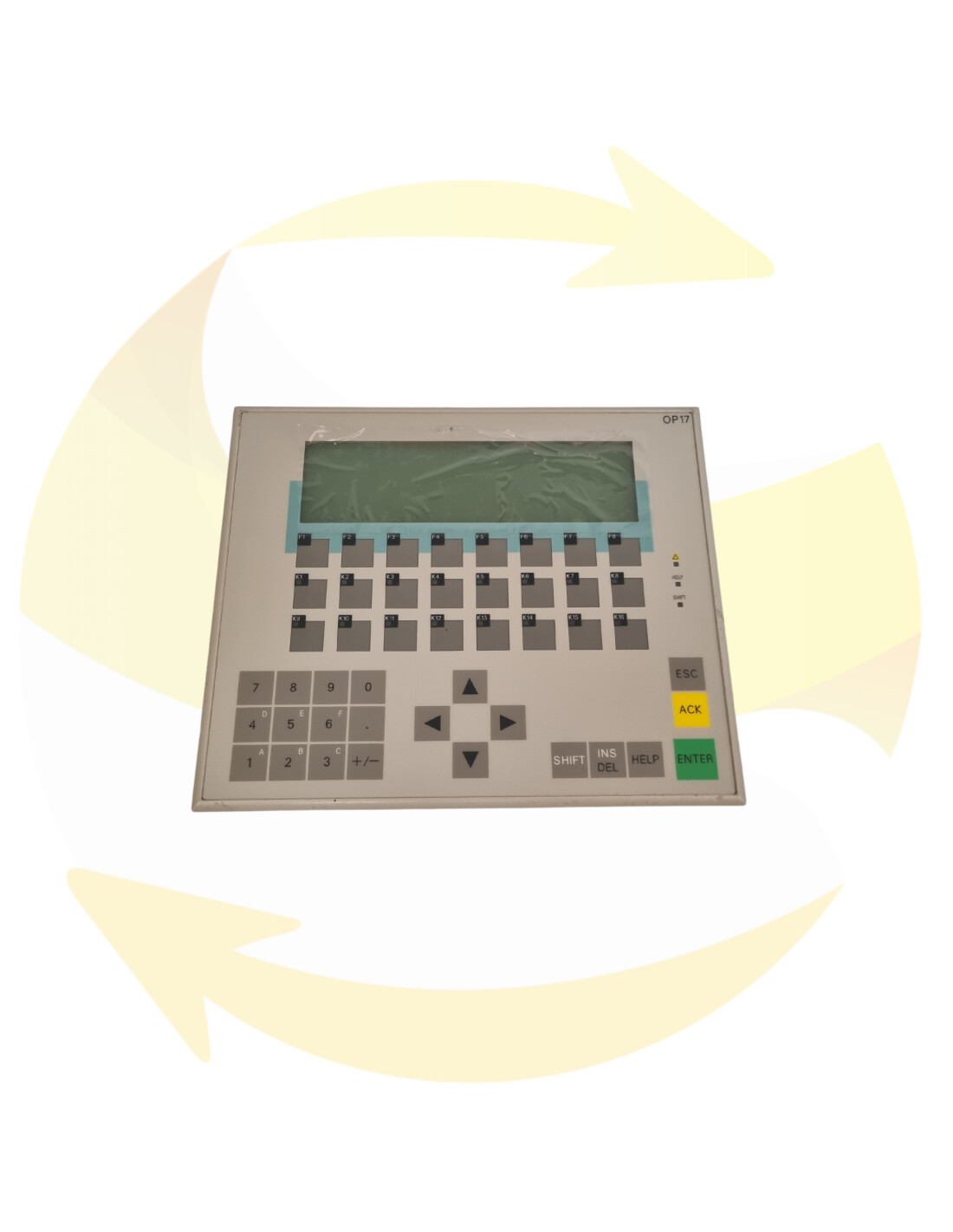

OP 17 / PP operator panel LCD display, LED backlight 4 x 20/8 x 40 lines x characters SIMATIC S5, 505, native drivers with UL / CSA approval
This OP 6AV3617-1JC00-0AX2 is at your disposal to replace your defective equipment and has a guarantee adapted to your needs.
Operator Panels OP7 and OP17 allow operating states, current process values and malfunctions of a connected PLC to be visualized. In addition, inputs can be made on the OP which can be written directly to the PLC. Some functions relating to machine diagnostics can also be executed on the Operator Panel.
The Operator Panels feature a number of standard functions. The displays and operation of the devices can be optimized by the configurer to meet the requirements of the process.
The Operator Panels are suitable for fitting into switching cabinets and con- trol desks. A printer can be attached to the OP for logging processes during automation operation.
The basic functions of an OP consist in displaying process states and in con- trolling the process. The following display and control functions can be con- figured on Operator Panels OP7 and OP17:
- event messages
- alarm messages
- help text
- schedulers for the OP17
Data supplied by the PLC may be displayed together on a screen and modi- fied individually, if required. A screen consists of several screen entries since, for example, more related data are required for describing a machine state than can normally be displayed in the window of a screen. Therefore data on operating temperature, fill level, speed and running time can illus- trate the current machine state.
The OP7 and OP17 are Operator Panels with text based displays. Accordin- gly, a screen on the display comprises text items which may include static text and current state values.
Screens may be combined on the OP in a directory. You can use the directory to display, print and edit screens.
