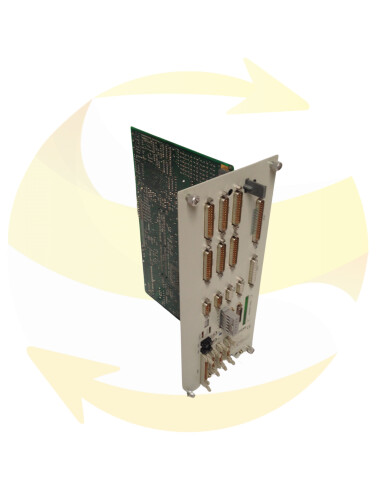

6FC5410-0AX02-0AA0

This CPU 6FC5410-0AX02-0AA0 and SIEMENS brand is a CPU of the range SINUMERIK 810D CCU2.

SINUMERIK 810D CCU 2 MODULE WITH SOFTWARE SYSTEM. 1.5MB

This Siemens 6FC5410-0AX02-0AA0 CPU is at your disposal to replace your defective equipment and has a guarantee adapted to your needs.

In stock, ready to ship.
State
  • Refurbished Supply
Warranty
€4,200.00
VAT excluded

System options

Exchange service with a refurbished unit

Standard Exchange Service

Reconditioned and tested systems

From 6 to 12
month warranty

Exchange service with a new unit

Standard Exchange Service

New systems

From 12 to 24
month warranty

Supply of a refurbished unit

Supply Service

Reconditioned and tested systems

From 6 to 12
month warranty

Supply of a new unit

Supply Service

New systems

From 12 to 24
month warranty

For parts only

Supply Service

Sold for parts – no warranty

Repair

Repair service

Repair will be made to damaged and defectiv units

From 3 to 18
month warranty

Livraison rapide

Fast
delivery

Livraison rapide

guaranteed
products

Livraison rapide

Secure
payment



On the SINUMERIK 810D, the number of axes can be expanded to six axes, including spindles.

There are two possibilities:
either Connect axis expansion plug-in unit and SIMODRIVE 611 power module at axis expansion interface,

or Connect SIMODRIVE 611D control plug-in unit with SIMODRIVE 611 power module on drive bus/device bus.

The axis expansion plug-in units are used whenever no more than six measur- ing channels are required for the SINUMERIK 810D. This plug-in unit is plugged into a SIMODRIVE 611 power module. The axis expansion plug-in units are designed for 1-axis and 2-axis power modules. The ribbon cables are part of the plug-in unit.
If the six measuring channels of the SINUMERIK 810D are insufficient, SIMODRIVE 611 controller plug-ins must be inserted into the SIMODRIVE 611 power modules to connect further measuring systems (connection via drive bus with drive bus terminator).
If 611D control modules are used, it may be neces- sary to connect the NCU terminal block to the free drive bus connector of the 611D control.

The CCU can control up to 6 axes onboard. For this purpose there is a new expansion plug-in in addition to the existing axis expansion plug-in modules.
All power modules of the 611D series can be connected as external power modules for axis expansion.
As from SW 6.3, the limitation to six drives applies.
Expansion levels 1 to 6 can be achieved by many combinations. To operate the spindle to the internal power module, connect it to the 24A/32A power module.

Height
31 cm / 12,2 in
Width
29 cm / 11,4 in
Length
15 cm / 5,9 in
Weight
1,6 kg / 3,5 lbs
Family
SINUMERIK
Reference
6FC5410-0AX02-0AA0
Refurbished
3000390022207
300316286656
