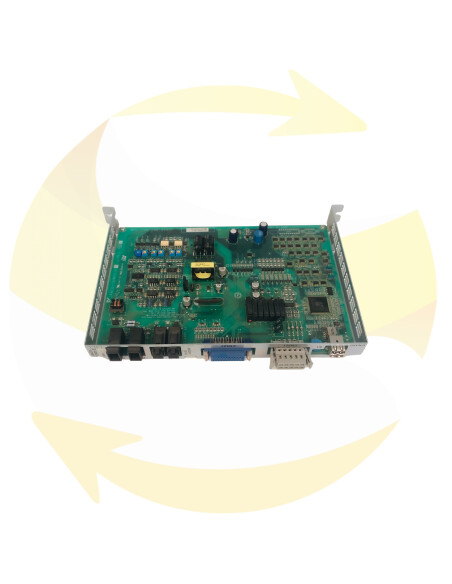

JANCD-YEW01-E - Interface board - YASKAWA
This JANCD-YEW01-E and YASKAWA interface board is an interface board for DX200 robot control unit.
This board can connect an analog arc control welding power source to the DX200.
This JANCD-YEW01-E YASKAWA interface board is available to replace your defective equipment and has a guarantee adapted to your needs.
This board can connect an arc welding power source of analog command to the DX200.
To use the JANCD-YEW01-E board on the DX200, the I/O module must be set according to the following procedure.
Check to be sure that the power supply of the DX200 is turned OFF. Then, install the JANCD-YEW01-E board all of whose switches are properly set to the inside of the DX200 cabinet.
The following combination of boards is displayed in this example.
ST#00: JANCD-YI021-E board
This board is shown as YSF21 on the IO module display.
(Digital input 40 points, digital output 40 points) This board is fixed to ST#00.
ST#01: JANCD-YEW01-E board
(16 contact inputs, 16 contact outputs, 2 analog inputs, 2 analog outputs)
Note that even though 16 contact inputs and 16 contact outputs are displayed, they cannot be used for external devices because they are used by the system.
Switch S1: Set to 1. (This value is the value of ST#.)
Yaskawa The company was founded in 1915 and its headquarters is located in Kitakyushu, Japan.
The company is the world leading manufacturer of servo motors, converters, axis drives and control systems used in industrial automation, and Motoman robots.
